Model 252
Label Printer/Applicator
Operators/Technical Manual
1
1. Introduction
The Model 252 label printer/applicator is designed to print and apply informational or
decorative pressure sensitive labels to a wide variety of products and packaging. A
variety of engines and label application modules can be fitted to the Model 252 to meet
application specific labeling requirements. Application modules include multiple tamp
options and corner wrap units. A further upgrade to the tamp options is available with
the addition of tampjet pneumatics. Additional options to enhance control, operation, and
interface are available as well.

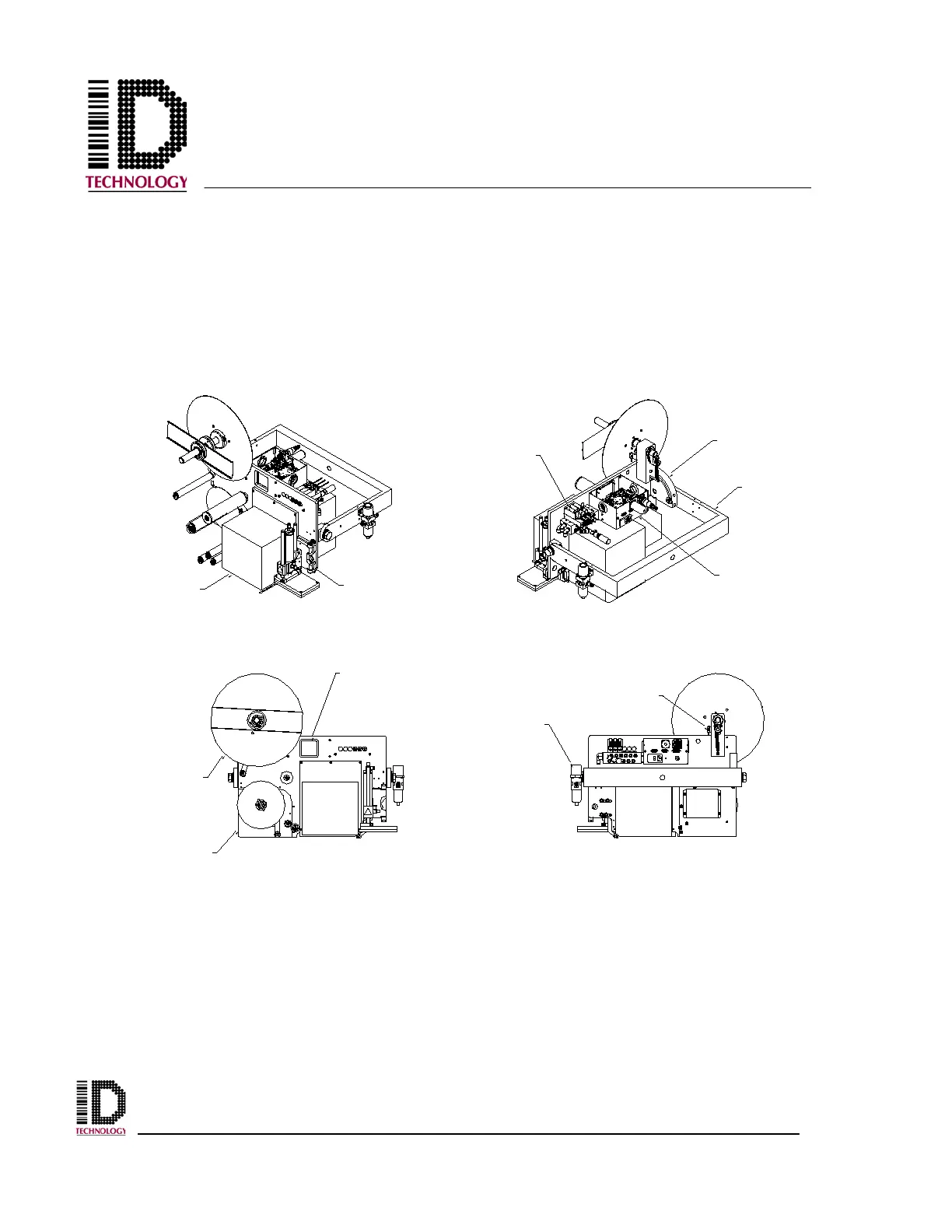

SET
TILT
BLOCK
PNUEMATIC
ASSEMBLY
ELECTRONICS
ASSEMBLY
U-ARM
OPERATOR
INTERFACE
UNWIND
ASSEMBLY
REWIND
ASSEMBLY
APPLICATION MODULE
(SERVICE TAMP SHOWN)
LOW LABEL
SENSOR
ENGINE
FILTER
REGULATOR
ASSEMBLY
BACK COVER REMOVED
FOR ILLUSTRATION PURPOSES
