Tampjet Upgrade Installation
Install the black tubing from the filter/regulator assembly in the remaining “P” port fitting
on the tampjet valve. Reinstall the back cover using a 3mm hex wrench. Adjusting the
flow control will vary the vacuum pressure applied to the tamp pad.

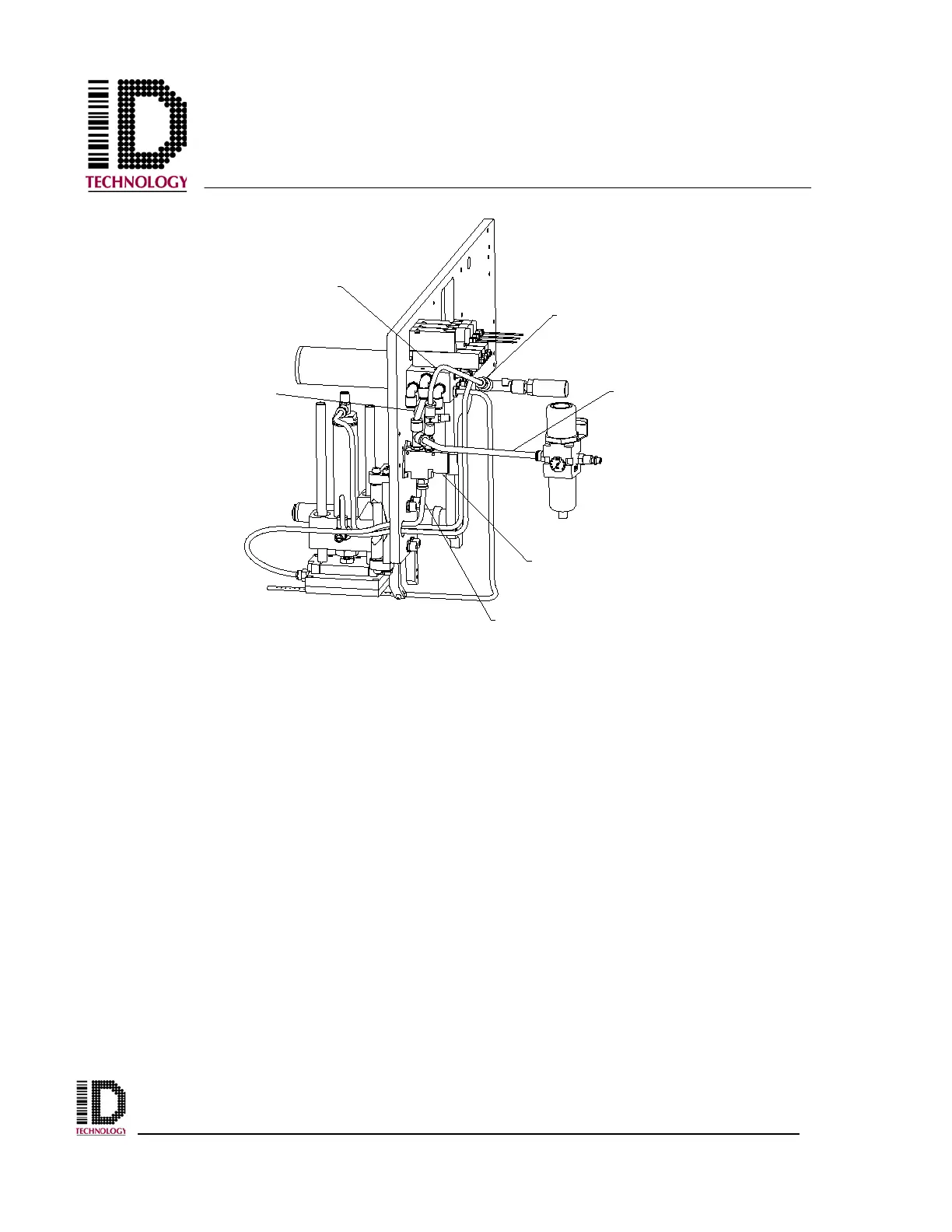

TAMPJET
VALVE
YELLOW
TUBE
YELLOW
TUBE
BLACK
TUBE
VACUUM
GENERATOR
BLACK
TUBE
P R
A
