5. Set the parameters to match the communication settings of the PC or operator interface.
Note: The number of clients that can be connected to the FC6A Series MicroSmart simultaneously is one client per connection. If connections 1 to
8 are all set to the maintenance communication server, eight clients can connect to the FC6A Series MicroSmart at the same time.
6. Click OK.
This completes maintenance communications settings.
Download User Program and Confirm IP Addresses via USB Port
Before starting Ethernet communication, configure the function area settings and download the user program to the FC6A Series
MicroSmart via USB.
7. Connect the PC and the FC6A Series MicroSmart using a USB cable.
8. From the WindLDR menu bar, select Online > Transfer > Download.
The Download dialog box appears.
9. Click OK.
The user program is downloaded to the FC6A Series MicroSmart.
10. After the user program has been successfully downloaded, go to Monitor Mode to check the status of the FC6A Series
MicroSmart. Select Online > Monitor > Monitor from the WindLDR menu bar.

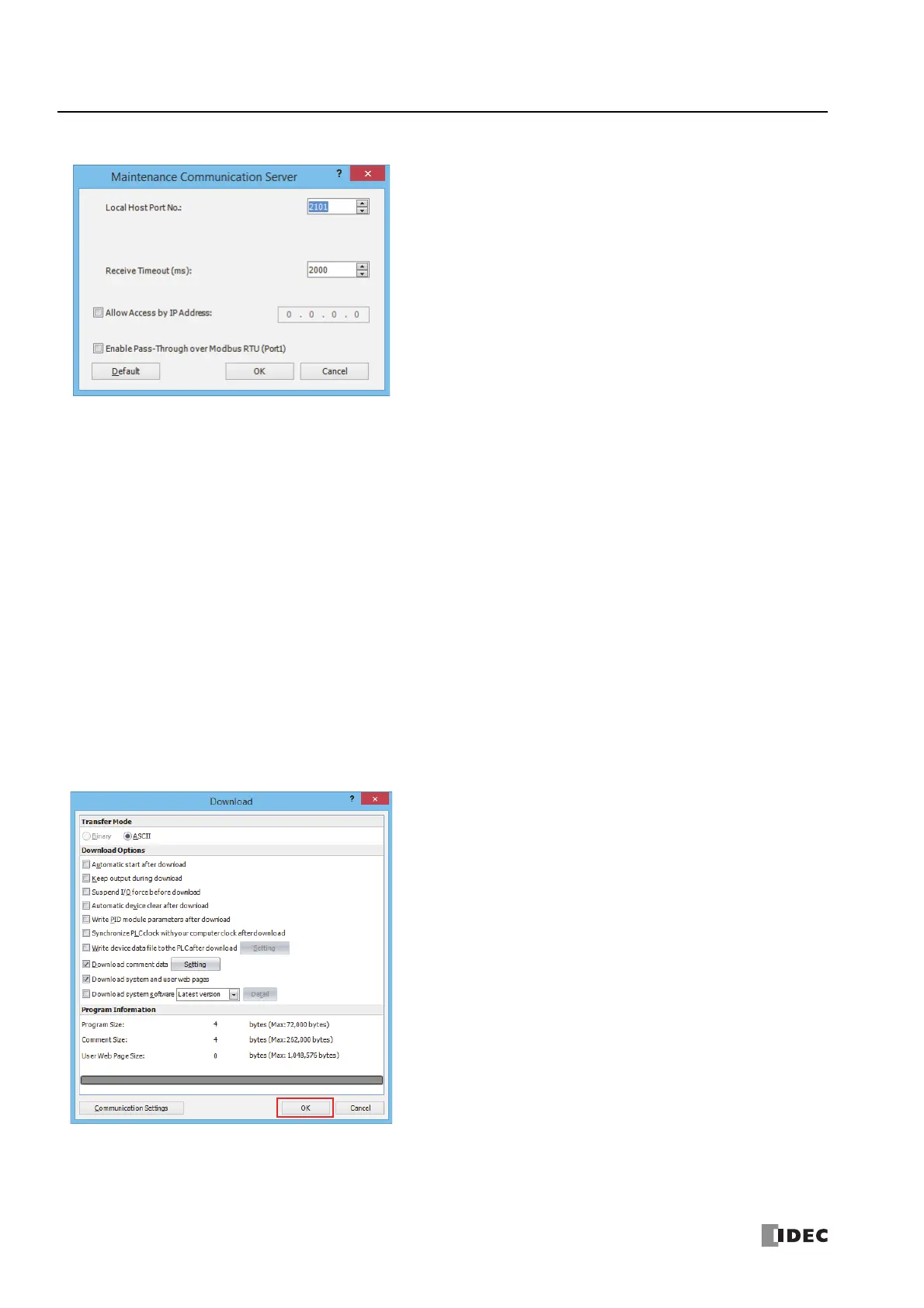

Local Host Port No.: 2101 (The port number that the FC6A Series MicroSmart uses for the maintenance communication server)
Receive Timeout (ms): 2000 (100 to 25500)
Allow Access by IP Address: Disabled (Enabling this option makes it possible to prevent access from devices having any IP addresses other
than the one entered.)
