7.2.3 Applications with viscous and fast flowing media
For applications with viscous or flowing media and / or agitators in which the rod is
exposed to lateral load:
► Rod must not be in contact with tank
wall / structures�
► Increase lateral minimum distances
according to the rod length and the
lateral deflection to be expected�
► If possible, fix the rod at the tank bottom
so that it is electrically conductive� This
can be done by means of a sleeve or
similar devices (fig� 7-3)�
► Check the correct function (in particular
with empty tank)�

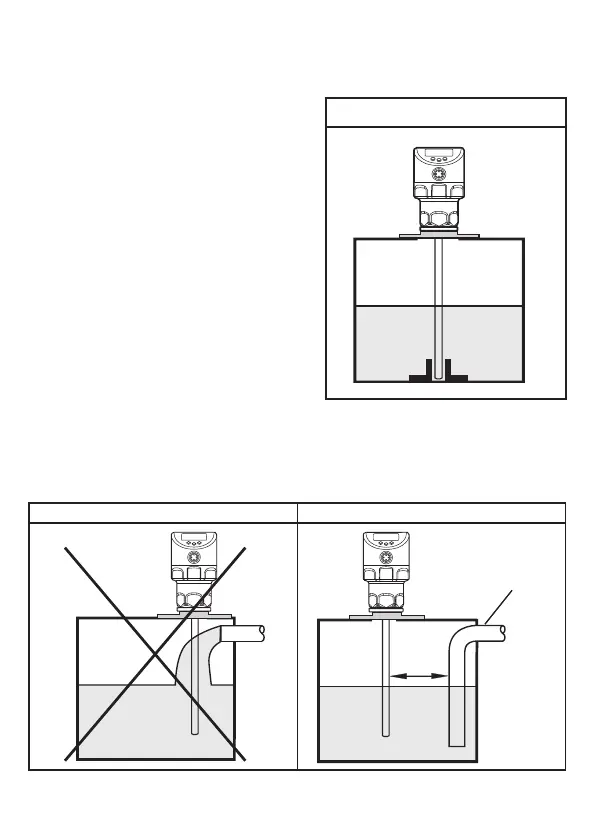

Fig.. 7-3
7.2.4 Fill openings
Do not install the unit in the immediate vicinity of a fill opening (fig� 7-4)� If
possible, install a fill pipe (A) in the tank (fig� 7-5)� Keep to the indicated installation
distances, if needed carry out tank adjustment�
Fig. 7-4 Fig. 7-5
A
