26
7.6.3 Installation in open tanks

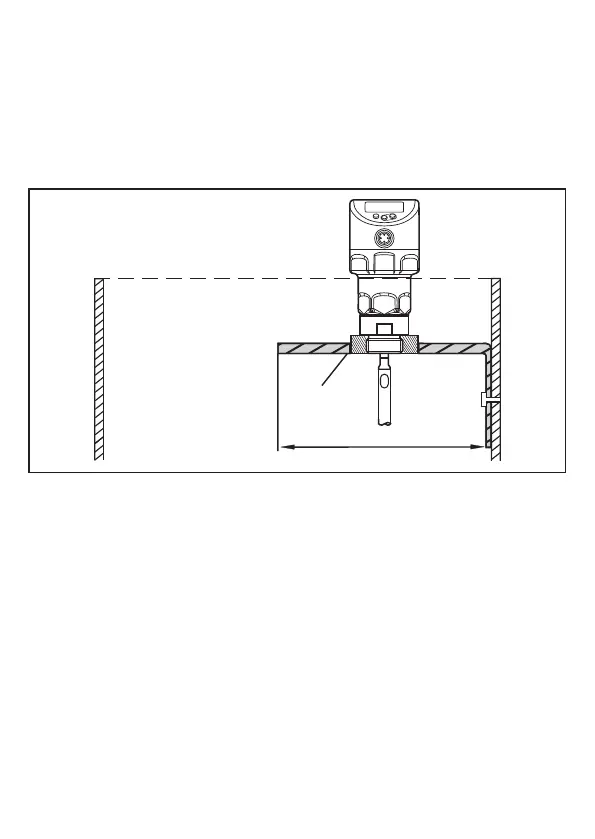

► For installation in open tanks, use a metal fixture to install the unit� It serves as
a launching plate R; minimum size: 150 x 150 mm for a square fixture, 150 mm
diameter for a circular fixture (→ 12.1)�
► If possible, mount the unit in the middle of the fixture� Adhere to the specified
installation distances according to (→ 7.2), if necessary, carry out a tank
adjustment�
D1
R
D1:
R:
Min� 150 mm�
Launching plate
► Slightly grease the sensor thread with a suitable paste�
► Insert the unit into the process connection�
► Tighten it using a spanner� Tightening torque: 35 Nm
