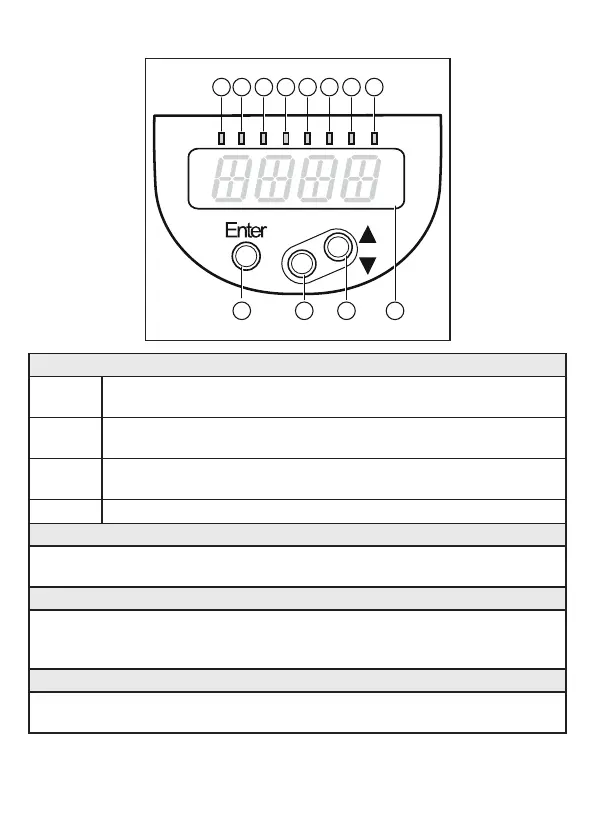

9 Operating and display elements
321
9 10
4 5 6 7 8
12
11
1 to 8: Indicator LEDs
LEDs
1 - 3
Selected unit of measurement�
LEDs
4 - 6
Not used�
LED 7 Only active if the switching output [ou2] = [I] or [InEG] is selected; then:
Switching status OUT2 (on when output 2 is switched)�
LED 8 Switching status OUT1 (on when output 1 is switched)�
9: [Enter] button
- Open the user menu�
- Edit and confirm the parameter values�
10 to 11: Arrow keys up [▲] and down [▼]
- Selection of the parameters�
- Setting of the parameter values (continuously by holding pressed; incrementally by
pressing once)�
12: Alphanumeric display, 4 digits
- Display of the current level�
- Indication of the parameters and parameter values�
