7.4 Installation of the rod
The probe is not supplied. It has to be ordered separately (→ 3 Items supplied).
7.4.1 Installation of the rod

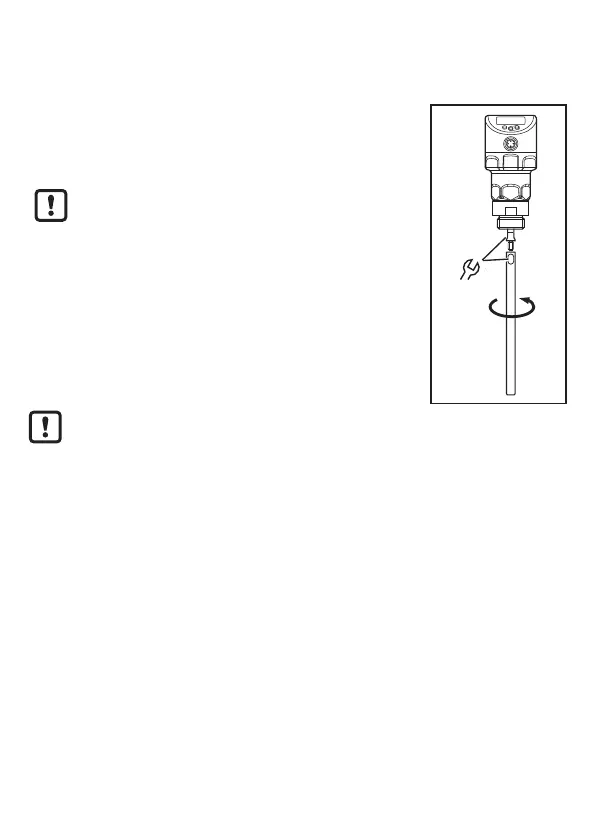

Fixing of the rod:
► Screw the rod to the unit and tighten it�
Recommended tightening torque: 4 Nm�
For ease of installation and removal the rod connection can
be rotated without restriction� Even if rotated several times
there is no risk of damage to the unit�
In case of high mechanical stress (strong vibration, moving
viscous media) it may be necessary to secure the screw
connection, e�g� by a screw retaining compound�
6
Substances such as screw retaining compounds may migrate into the
medium�
► Make sure that they are harmless�
When using mechanical means of securing (e�g� tooth lock washer):
► Avoid protruding edges� They may cause interference reflection�
