With increased foam formation the setting [MEdI] = [MId] is recommended
(→ 11.2.3)�
7.2.7 Notes on tank adjustment
Tank adjustment reduces the effect of interference and ensures a higher
excess gain in difficult application conditions�
Carry out the tank adjustment only when the unit is installed�
For the tank adjustment it is necessary to enter an "adjustment distance" first�
Within this distance, starting from the process connection, interfering reflections
are compensated�

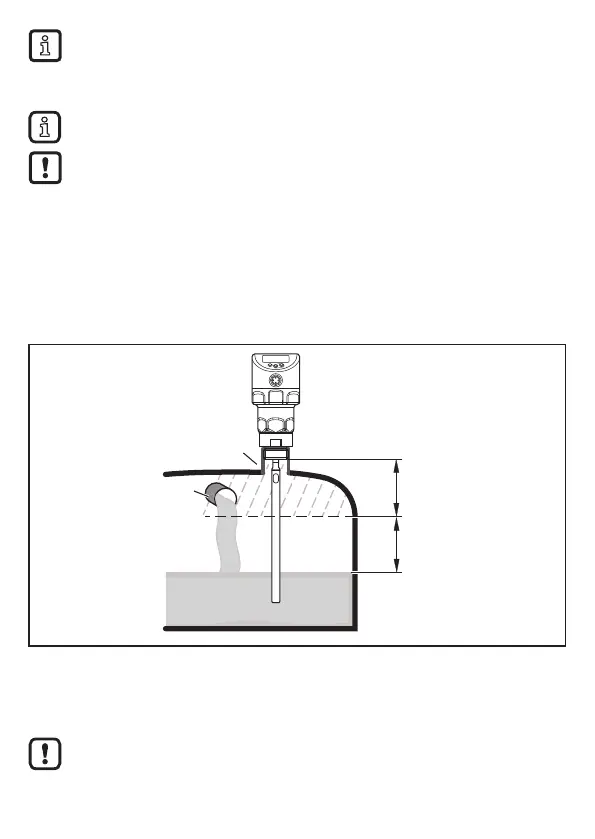

► Select an adjustment distance (a) so that the connection piece (S) and
structures in the tank (B) are completely detected�
► Observe safety distance (b ≥ 250 mm) to the level or the rod end�
b
a
B
S
a:
b:
S:
B:
Adjustment distance (min: 10 mm; max: L - 250 mm)
Safety distance to the level or rod end: b ≥ 250 mm
Connection piece
Structures in the tank
For probe lengths L < 260 mm no tank adjustment is possible� The
parameter [tREF] is then not available� In this case:
► Adhere to all indicated installation distances (→ 7.2)�
