13 Time diagrams
13.1 Averaging for a characteristic vibration value

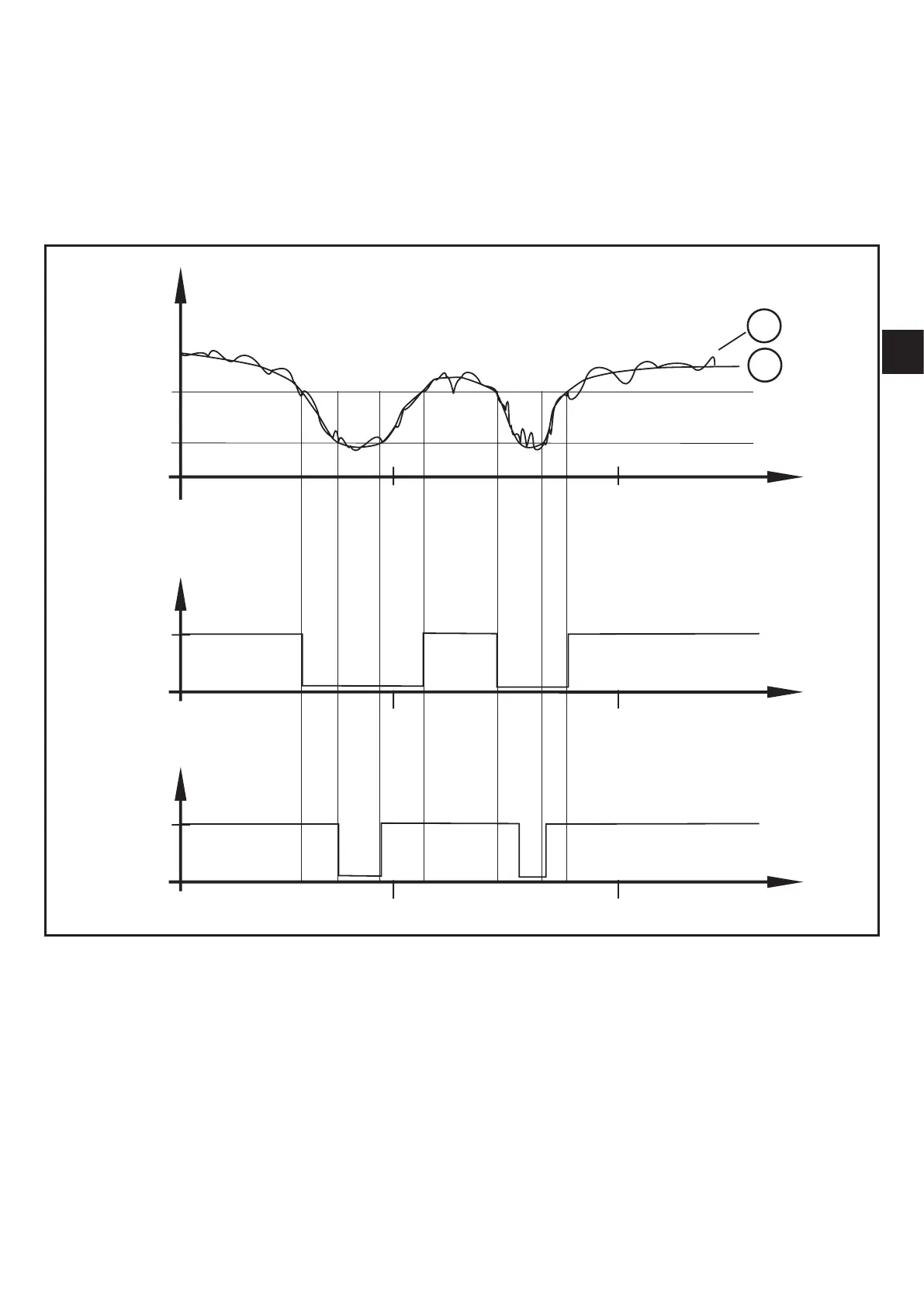

The time diagram shows the effect of averaging for a characteristic vibration value�
The outputs are configured as normally open (OU1 and OU2 → NO), averaging
(AUER) = 0�25�
2
1
t [s]
10
20
v
rms [mm/s]
SP1
SP2
t [s]
10
20
OU 2 (n.o.)
ds2, dr2 = 0 s
24 V
0 V
off
on
off
on
t [s]
10
20
24 V
0 V
off
on
off
on
OU 1 (n.o.)
ds1, dr1 = 0 s
1: Raw signal
2: Averaged signal
