6

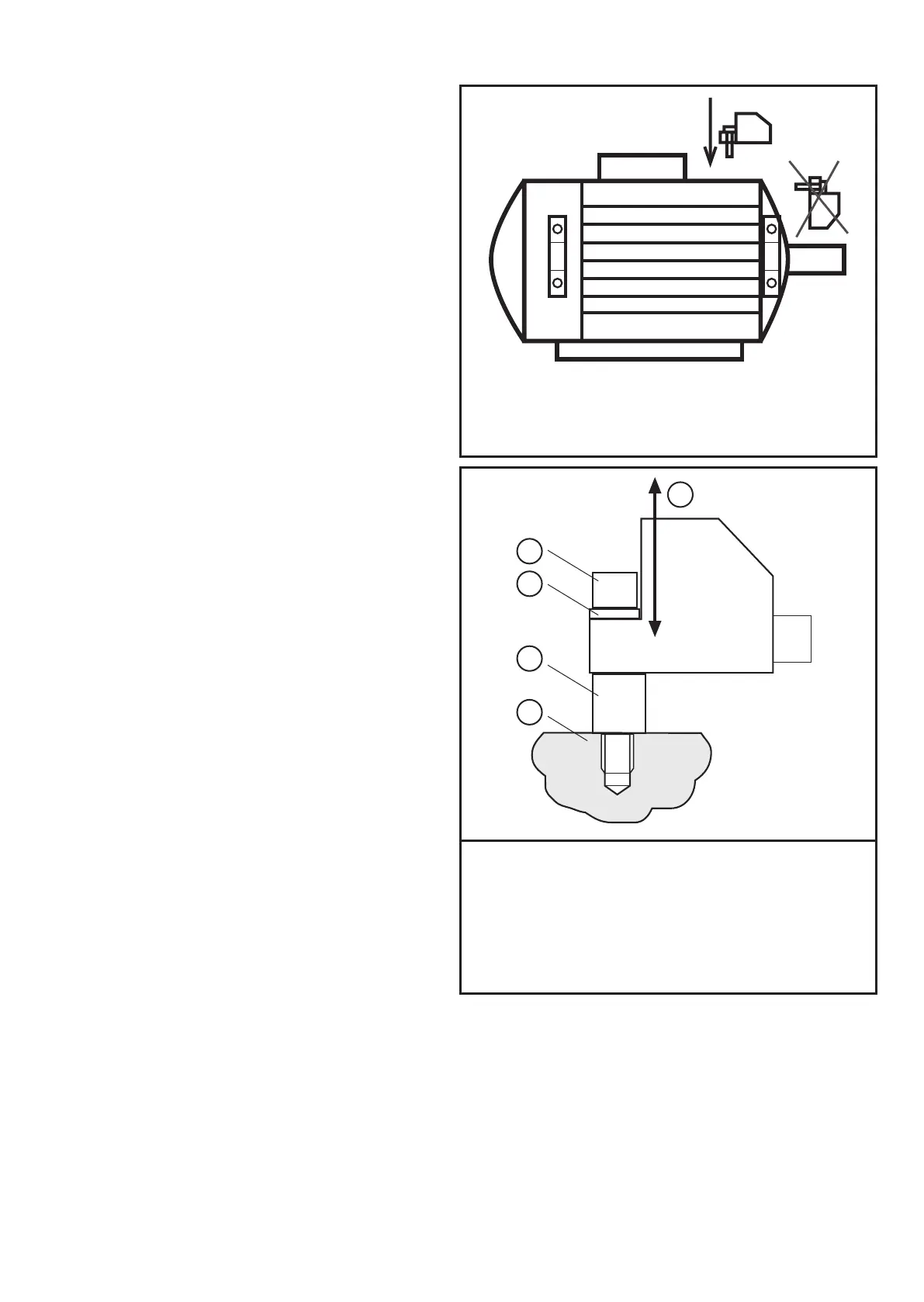

4 Installation
Please note the following points
when installing the unit:
► Mount only in a thick housing wall
(e�g� crane hook thread)�
► Mount vertically to the machine
surface using the spacer adapter
in the direction of the strongest
vibrations� This is usually the
radial direction�
► Tighten the M5 screw with a
tightening torque of 7 Nm�
► Ensure a reliable vibration
transmission� Avoid any elastic
intermediate layers�
1
2
3
4
5
1: Measurement axis
2: M5 screw
3: Spring washer
4: M8 x M5 adapter
5: Machine surface
