Chapter 1 Cobalt Overview
Internal Components Overview

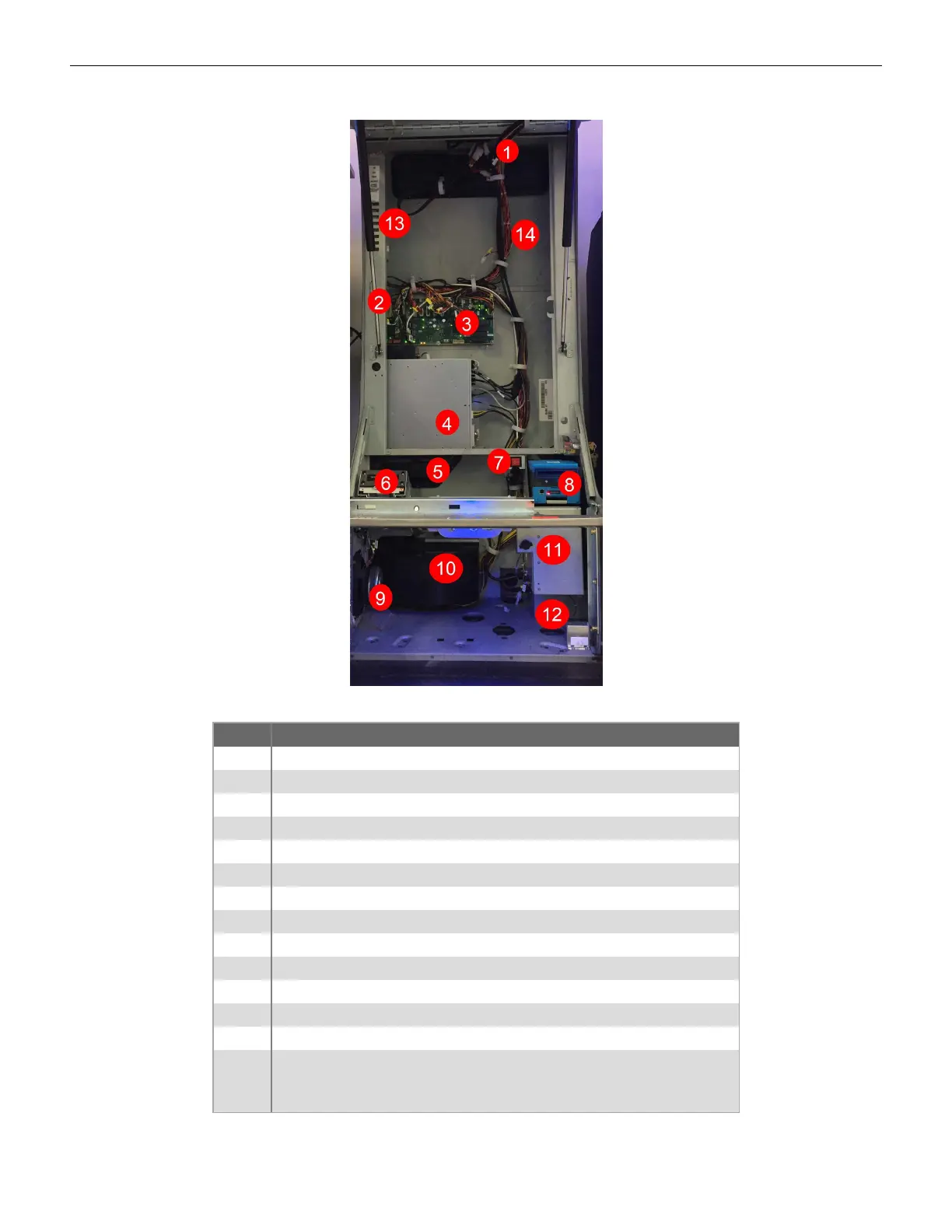

Figure 1-16 Internal Components
1 Topper Connectors
2 Audio Amplifier Board (mounted on side of cabinet- not shown)
3 Cabinet Controller Board
4 Brain Box
5 Brain Box Air Duct
6 Printer
7 Power Switch
8 Bill Validator
9 Bass Speaker
10 Power Supply & Shroud (Air Duct)
11 Cash Box
12 AC Box
13 Internal Hard Meters Location (Optional)
14
Fledging Board for use with Mutha Goose system.
C-Lite Interconnect Board for use with the i-LINK Ultra Site Controller
(Cashless System).
22 Cobalt™ 27
