Chapter 2 Hardware
Fledging Board
The Fledging Board is only present in Mutha Goose system configurations.
The Fledging Board provides communication between the EGMs and the Mutha Goose System.
l RJ45 connection to Mutha Goose system (or daisy-chained between multiple EGMs
connected to the Mutha Goose system).
l Connection to Cabinet Controller Board to "listen" for meters.

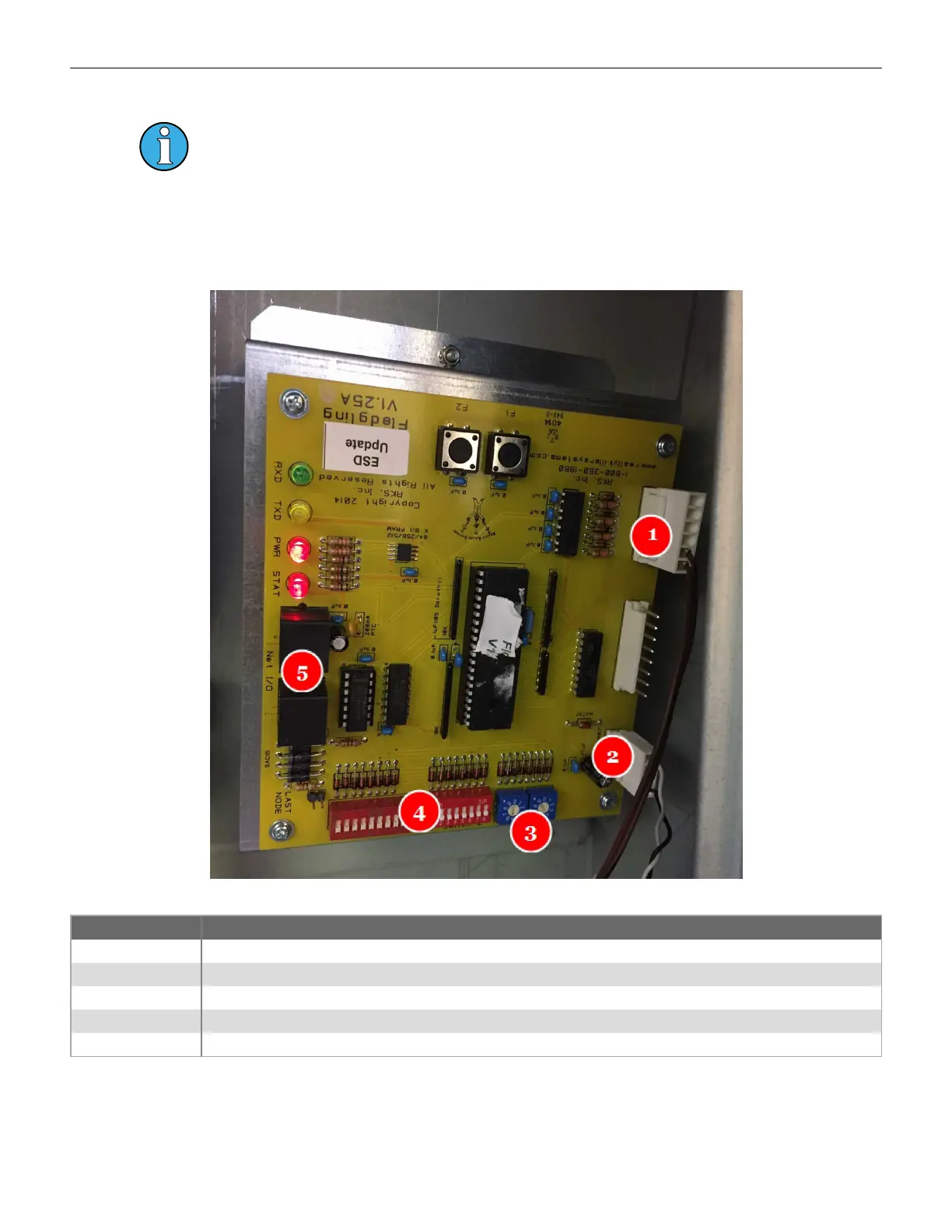

Figure 2-40 Fledging Board
Label Description
1 Connection to physical Hard Meters
2 Power connector to Cabinet Controller Board (J37)
3 Node Number
4 Jumpers
5 RJ45 connections for Mutha Goose system / Daisy Chain
