Chapter 2 Hardware
Cabinet Controller Board
The Cabinet Controller Board is the main interface between the power supply, Brain Box, and
cabinet peripherals. The board functions include:
l Door Security
l Meters (if applicable)
l Internal and external communications control
l Power distribution
Two EEPROMs (electrically erasable programmable read-only memory) are present for the cabinet
memory. A PCIe cable provides a communication link between the board and the Brain Box.

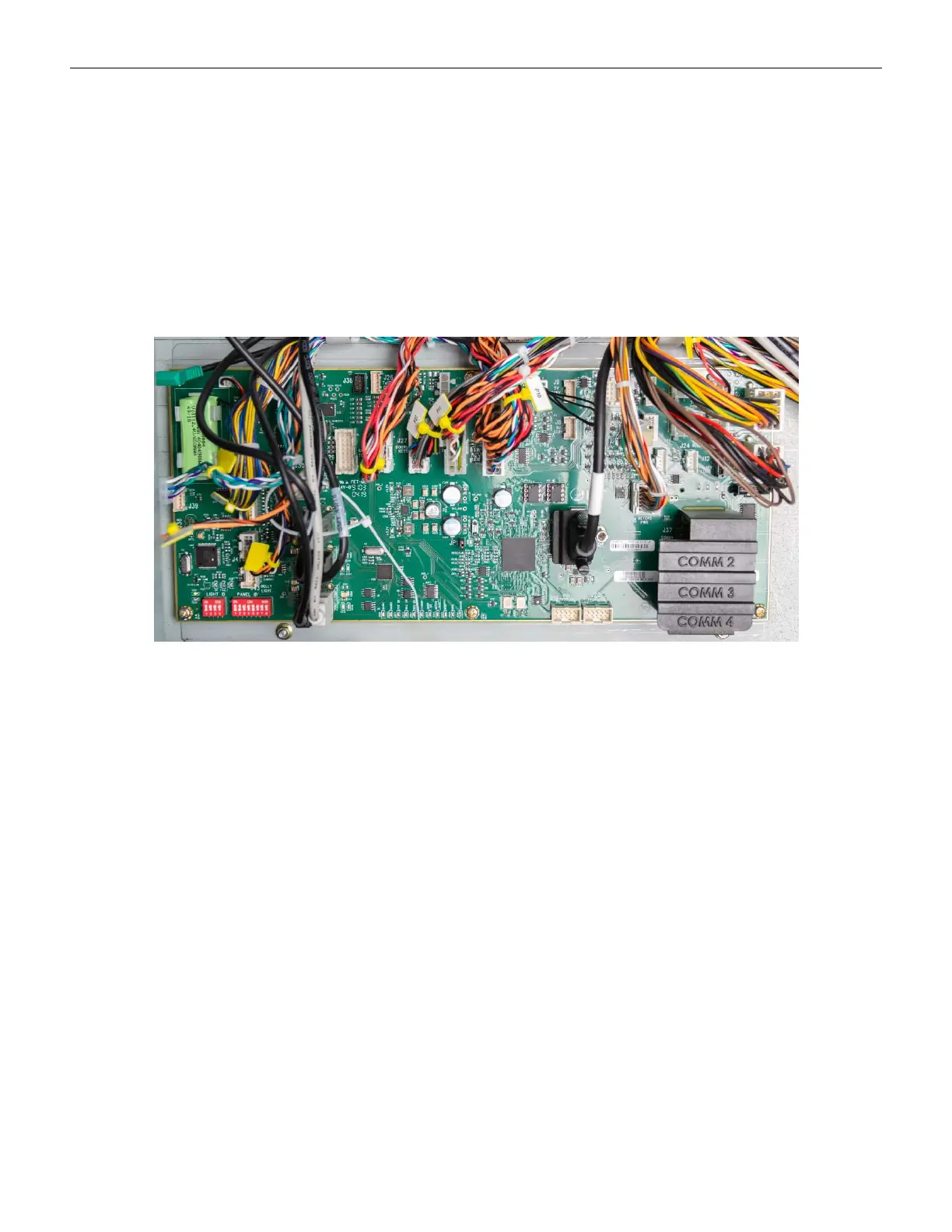

Figure 2-15 Cabinet Controller Board
Cobalt™ 27 39
