Chapter 2 Hardware
Fledging Board Connectors on Cabinet Controller Board

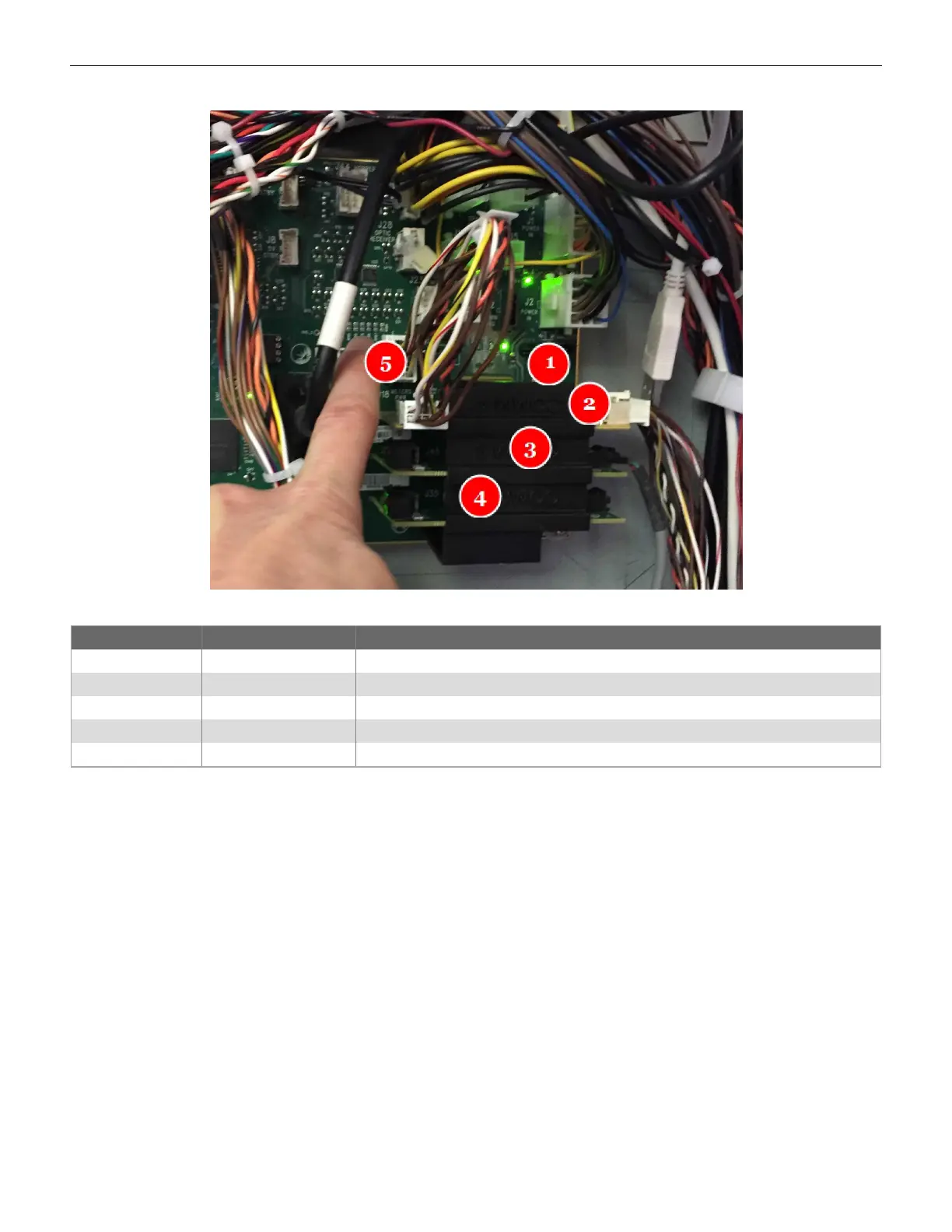

Figure 2-41 Fledging Board Connectors on Cabinet Controller Board
Label Connector Description
1 J34 Accounting SAS
2 J37 Connection to Fledging Board and serial Bill Validator
3 J45 Optional RS-232 Expansion board for AFT/EFT
4 J35 Optional RS-232 Expansion board for AFT/EFT
5 J18 Meter Power looped to J37 on Cabinet Controller Board
