Chapter 2 Hardware

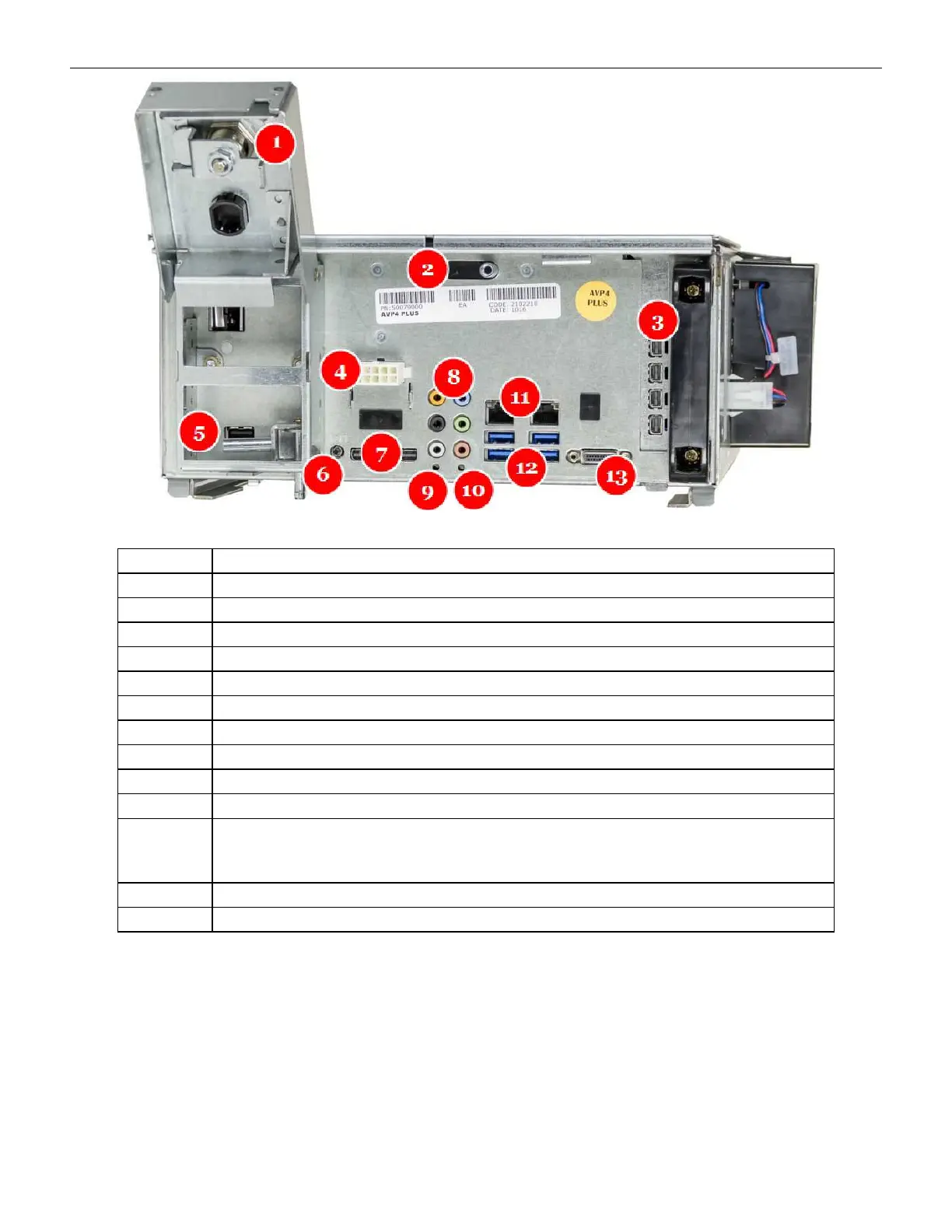

Figure 2-13 AVP 4.0+ Brain Box Interface (Security Door Open)
Number Description
1 Logic Door Lock Location
2 Cover Slide Release
3 PCIe Card Slot for AMD E9260 GPU or future expansion.
4 12VDC Input
5 Secure USB 2.0 Port
6 Operator Test switch
7 Three Mini DP (display port) Outputs (not used when AMD E9260 video card is installed)
8 8-Channel Audio Panel
9 SATA LED (indicates activity)
10 Boot program authentication status LED. Red indicates failure; solid blue indicates success.
11
Ethernet Ports
Left: LAN 1 - Gigabit Ethernet Port
Right: LAN 2 - Gigabit Ethernet Port
12 Non-Secure USB 3.0 Ports
13 PCIe x1 Interface
Cobalt™ 27 37
