Chapter 2 Hardware
Belly Door Logo

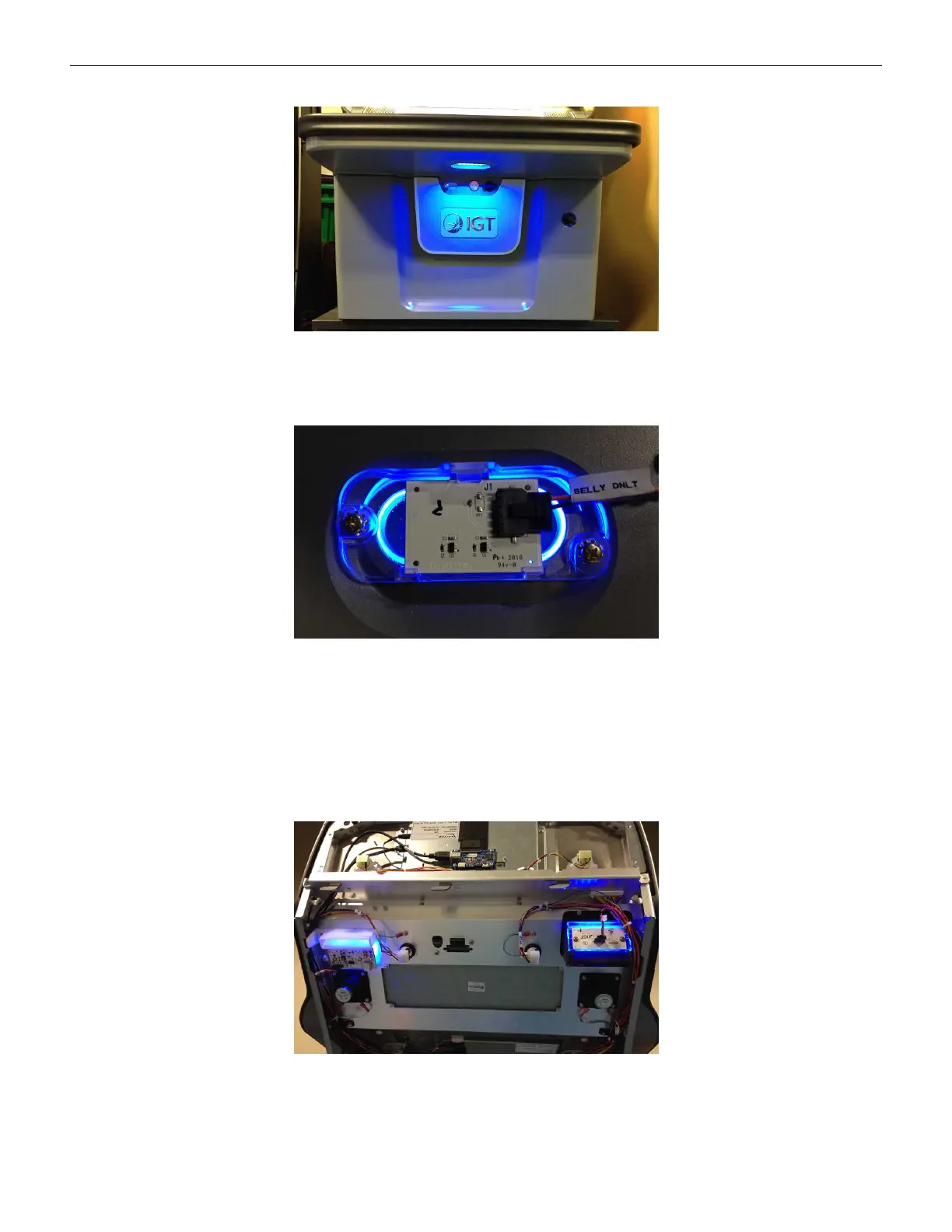

Figure 2-35 Belly Door Logo Lighting
For the belly door logo, the following LED Board is used:
l DOWN Light 5 LED Board (J1 connects to J11 on CCB)
Figure 2-36 DOWN Light 5 LED Board
Bill Validator Bezel
The Bill Validator Bezel uses one LED Board (J1 connects to J10 on CCB).
Printer & USB Charger Bezel
The Printer and USB Charger Bezel uses one LED Board (J1 connects to J10 on CCB).
Figure 2-37 Bill Validator & Printer LED Boards
52 Cobalt™ 27
