IGT Cobalt 27 - Page 64

Chapter 2 Hardware
Card Reader Removal
The card reader is secured to the two standoffs on the player tracking plate with two Phillips screws
(one on each side).
1. Disconnect the harness connected to the card reader.
2. Remove the mounting hardware to release the card reader from the player tracking plate.

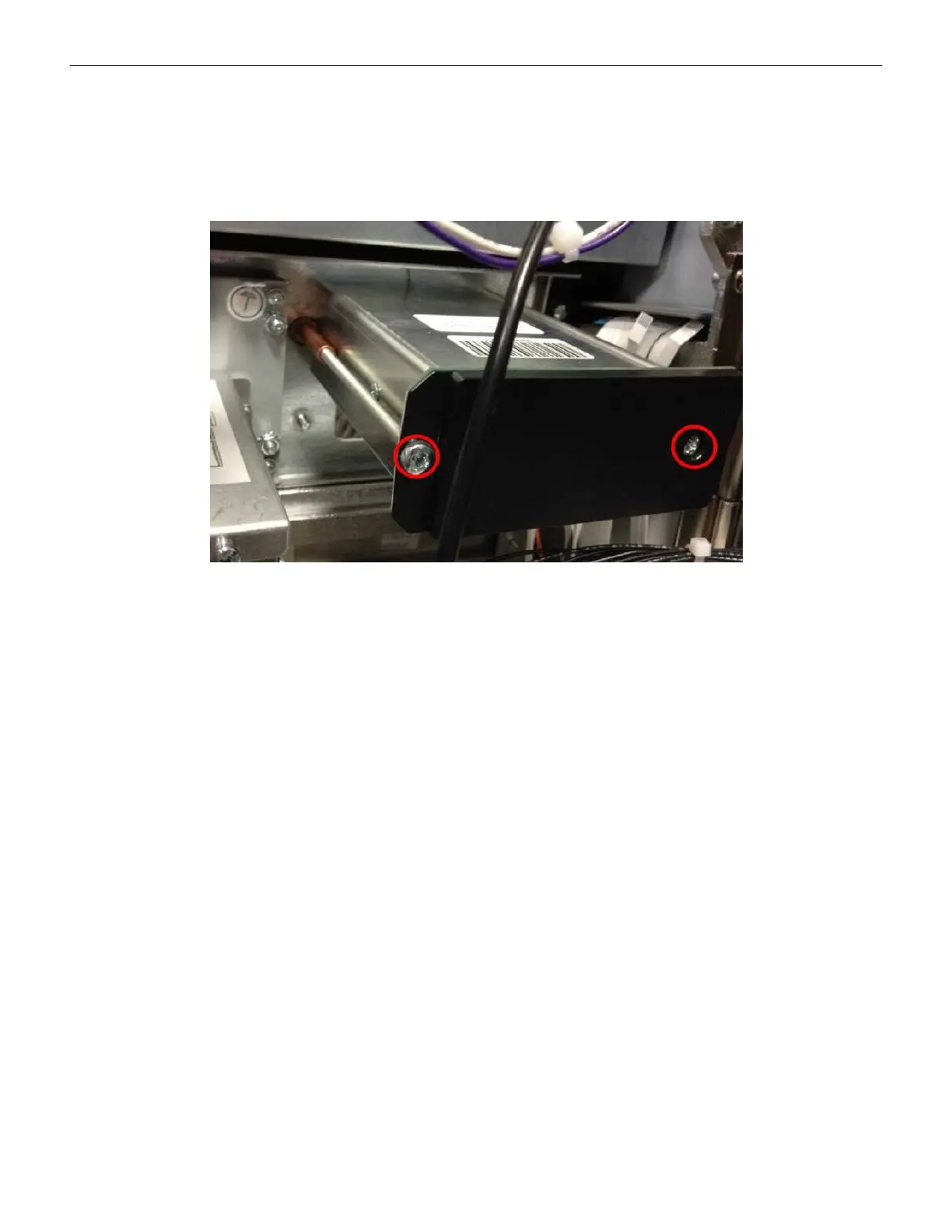

Figure 2-50 Card Reader Removal
64 Cobalt™ 27
