illumina MiniSeq User Manual

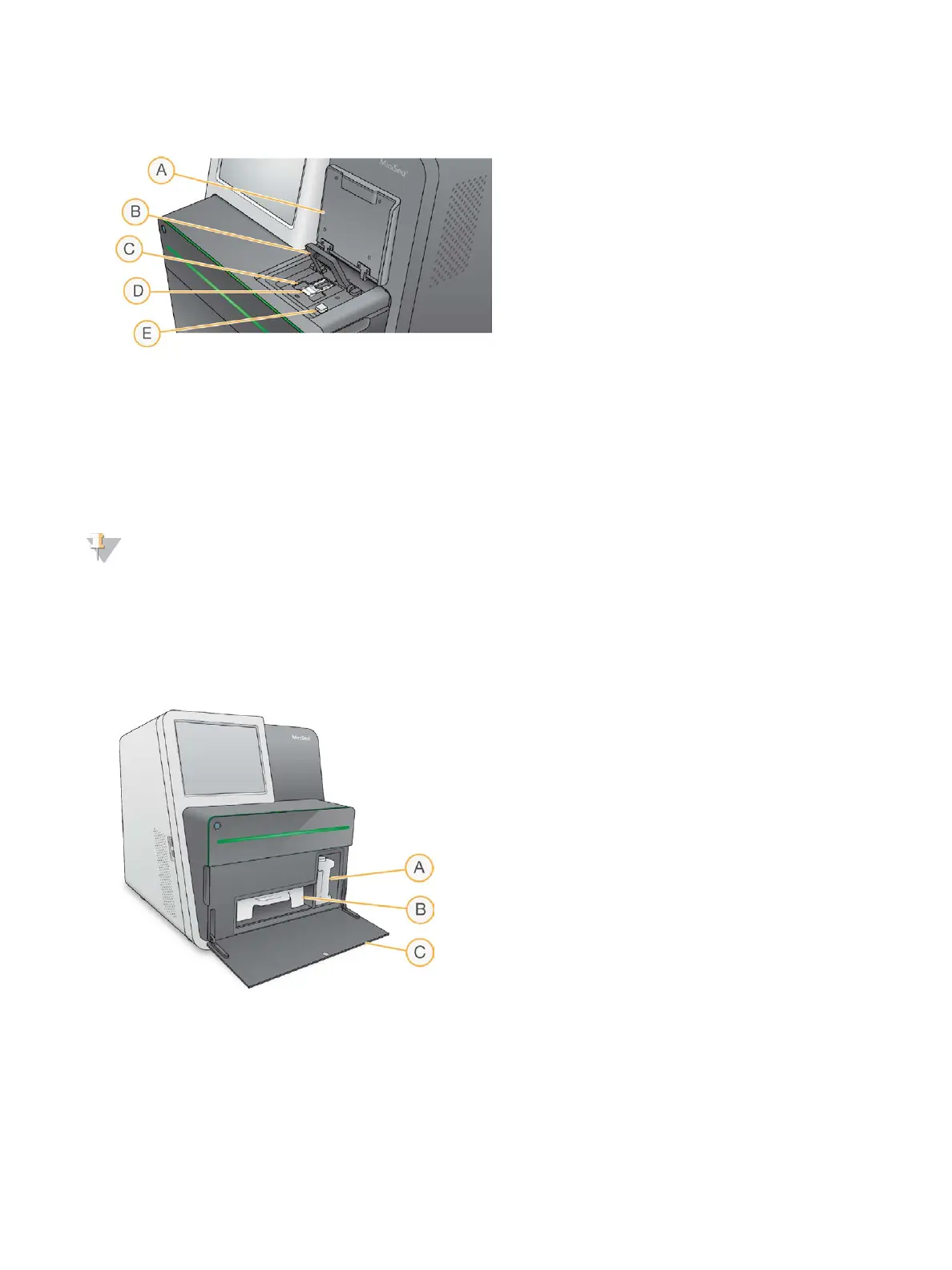

Figure 2 Flow Cell Compartment
A Flow cell compartment door
B Flow cell latch
C Flow cell stage
D Flow cell
E Flow cell latch release button
The thermal station, located beneath the flow cell stage, controls changes in temperature required for cluster
generation and sequencing.
NOTE
Do not place objects on the instrument near the flow cell compartment.
Reagent Compartment
Setting up a sequencing run on the MiniSeq System requires access to the reagent compartment to load run
consumables and empty the spent reagents bottle.
Figure 3 Reagent Compartment
A Spent reagents bottle—Includes a threaded cap to prevent spills when carrying.
B Reagent cartridge—Provides reagents in a single-use prefilled consumable.
C Reagent compartment door—Provides access to the reagent compartment.
The reagent compartment door opens outward from hinges at the bottom edge of the instrument. To open
the door, gently pull forward from the side edges of the door.
Document # 1000000002695 v02 Material # 20014309
For Research Use Only. Not for use in diagnostic procedures.
3
MiniSeq System Guide

illumina MiniSeq Specifications

General

Instrument Type	Benchtop Sequencer
Sequencing Technology	Sequencing by Synthesis (SBS)
Read Length	Up to 2 x 150 bp
Output	Up to 7.5 Gb
Run Time	4 - 24 hours
Data Quality	≥ 80% bases ≥ Q30
Maximum Reads	25 million
Sample Capacity	1
Applications	Targeted Gene Sequencing, Small Genome Sequencing, Amplicon Sequencing, Gene Expression Profiling
Power Requirements	100-240 V, 50-60 Hz
Operating Temperature	19°C to 25°C
Operating Humidity	Non-condensing, 20% to 80% RH
