AMAZON SERIES Operation Manual
Pioneer i n D i g i t al V is io n Technol og y

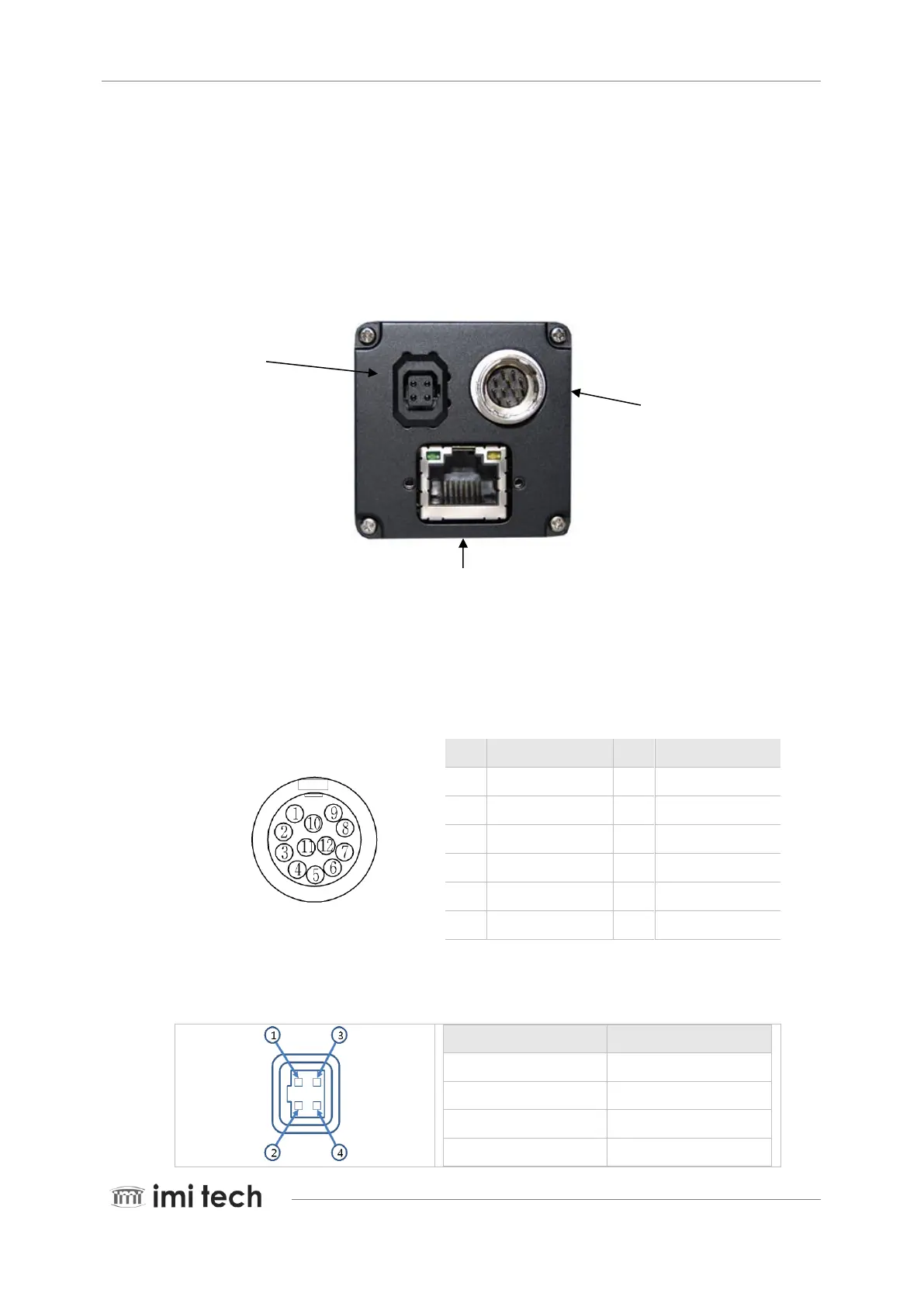

1.5. Camera Interface
The AMAZON series camera interfaces are located on the back of the camera (assuming the lens mount is up front)
as per the following:
Auto Iris Lens
Control Port
Trigger/Strobe/Power
12 Pin Connector
GigE port
1.5.1. Trigger/Strobe/Power Connector Port
The External Trigger/Strobe/Power Connector provides access to multiple I/O signals; and also provides power as a
secondary source.
Pin
Signal
Pin
Signal
1
POWER GND
7
GND
2
Ext Power(+12V)
8
RX RS232
3
GND
9
TX RS232
4
Ext. Trigger
10
NC
5
Ext. Trigger GND
11
Strobe
6
NC
12
Strobe Power
Remark : NC pins must have no connection
AUTO IRIS CONNECTOR PORT
PIN
SIGNAL
1
Damp -
2
Damp +
3
Drive +
4
Drive -
