Page 8
AMAZON SERIES Operation Manual
Pioneer i n D i g i t al V is io n Technol og y

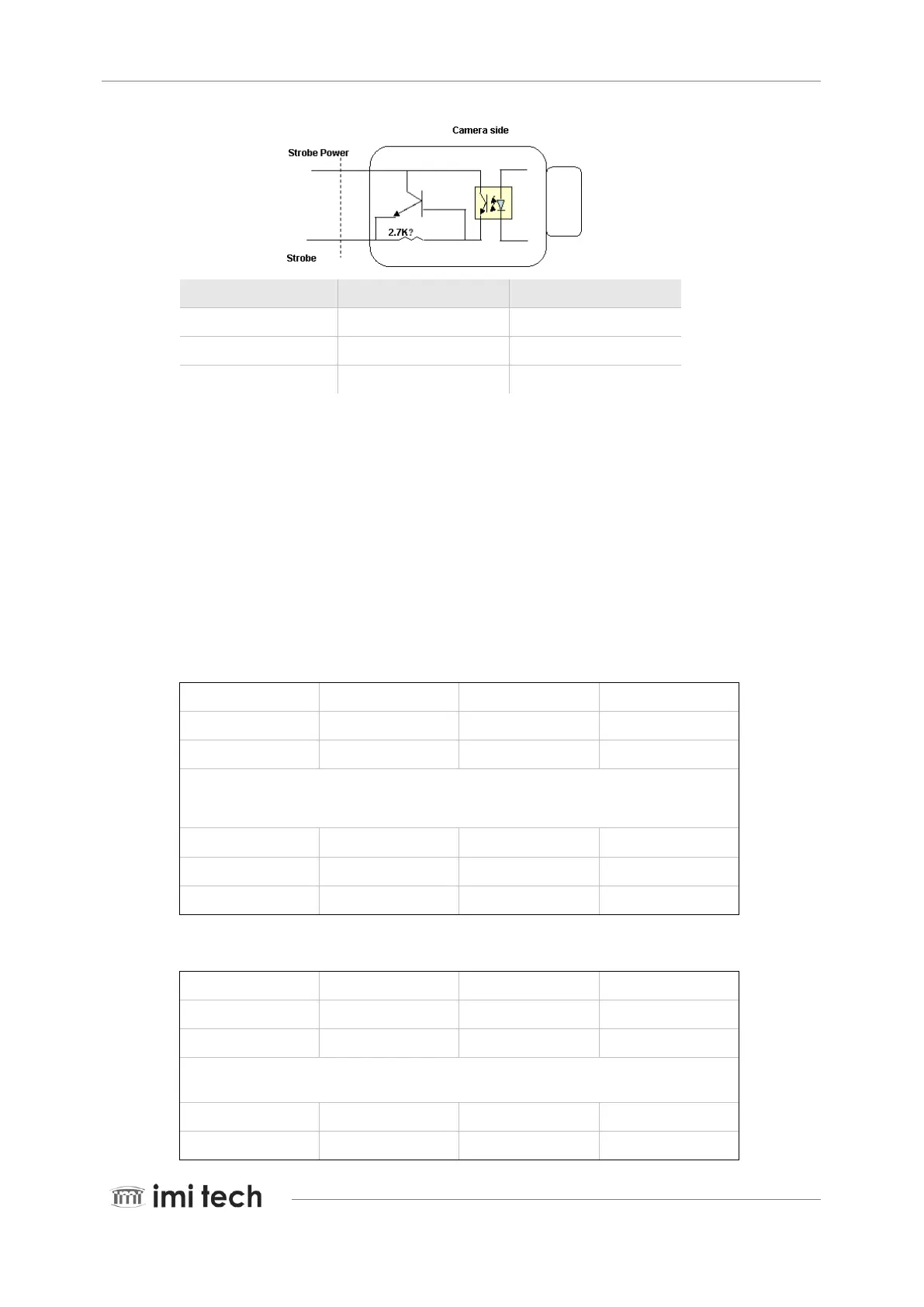

Strobe Power
Strobe falling delay
Strobe rising delay
5 V
26.8 us
2.16 us
12 V
7.6 us
2.8 us
24 V
3.6 us
3.4 us
1.7. Pixel Data
The AMAZON series complies with the AIA GigE Vision version 1.0 where data packets are transmitted by a Gigabit
Ethernet interface.
<YUV (4: 2: 2) format >
U-(K+0)
Y-(K+0)
V-(K+0)
Y-(K+1)
U-(K+2)
Y-(K+2)
V-(K+2)
Y-(K+3)
U-(K+4)
Y-(K+4)
V-(K+4)
Y-(K+5)
U-(K+Pn-6)
Y-(K+Pn-6)
V-(K+Pn-6)
Y-(K+Pn-5)
U-(K+Pn-4)
Y-(K+Pn-4)
V-(K+Pn-4)
Y-(K+Pn-3)
U-(K+Pn-2)
Y-(K+Pn-2)
V-(K+Pn-2)
Y-(K+Pn-1)
<YUV (4: 1: 1) format >
U-(K+0)
Y-(K+0)
Y-(K+1)
V-(K+0)
Y-(K+2)
Y-(K+3)
U-(K+4)
Y-(K+4)
Y-(K+5)
V-(K+4)
V-(K+4)
Y-(K+5)
U-(K+Pn-8)
Y-(K+Pn-8)
Y-(K+Pn-7)
V-(K+Pn-8)
Y-(K+Pn-6)
Y-(K+Pn-5)
U-(K+Pn-4)
Y-(K+Pn-4)
