AMAZON SERIES Operation Manual
Page 47
Pioneer i n D i g i t al V is io n Technol og y
4.9.3. Timing Diagram for External Trigger and Shutter and Strobe

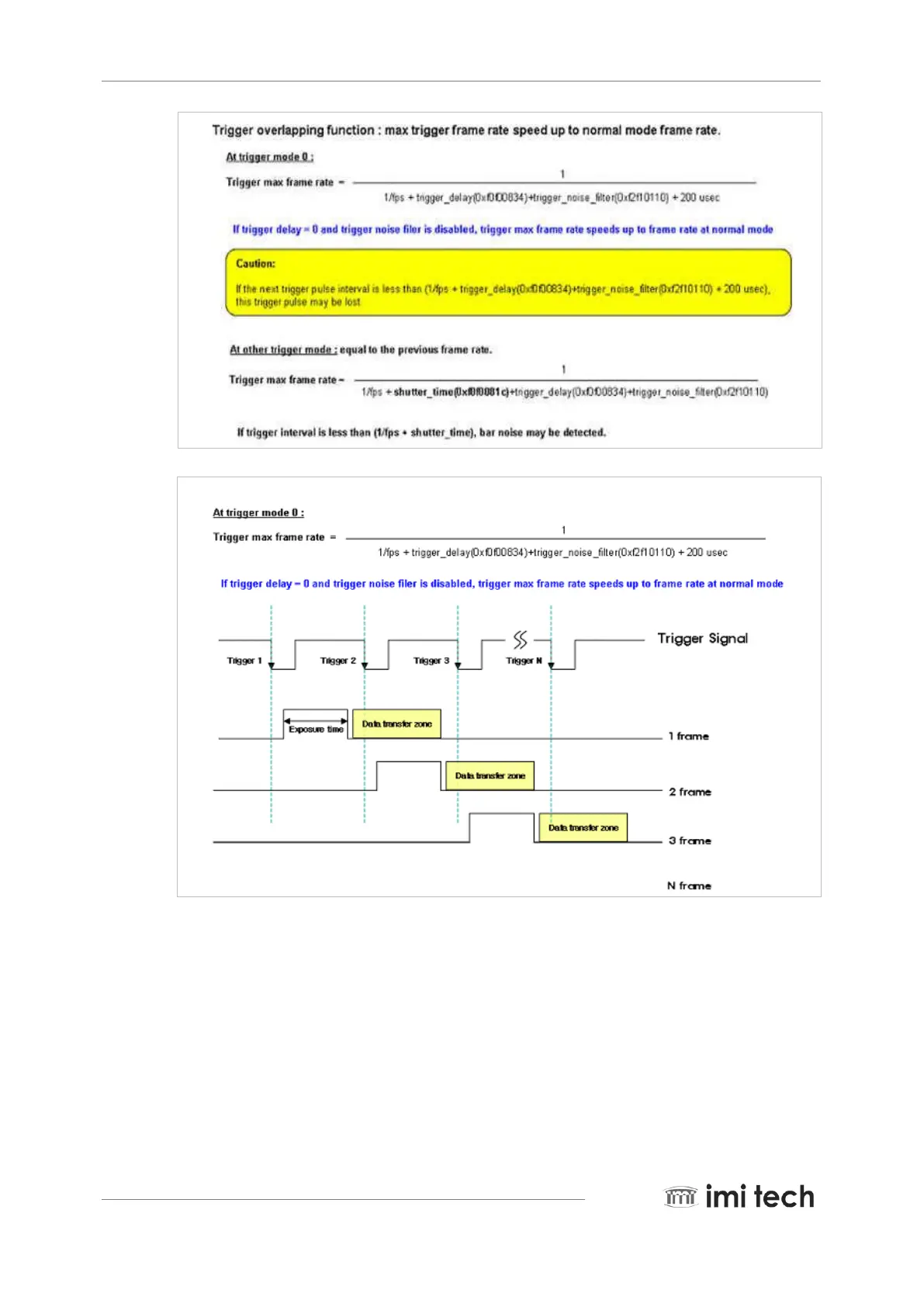

This diagram shows the necessary time related to each signal for External trigger and Shutter and Strobe.
