AMAZON SERIES Operation Manual
Pioneer i n D i g i t al V is io n Technol og y
4.9.11. Trigger Mode 13
The user can capture the multi frame rates with one trigger signal. Users can control the Gain and Shutter by
the Parameter Table which has a range from 1 to 255. However, we recommend that the trigger mode 12 be
used. Trigger mode 13 has approximately a 2.5msec delay time; so it is not recommended. Mode 13 is
supported by both a H/W trigger and a S/W trigger.

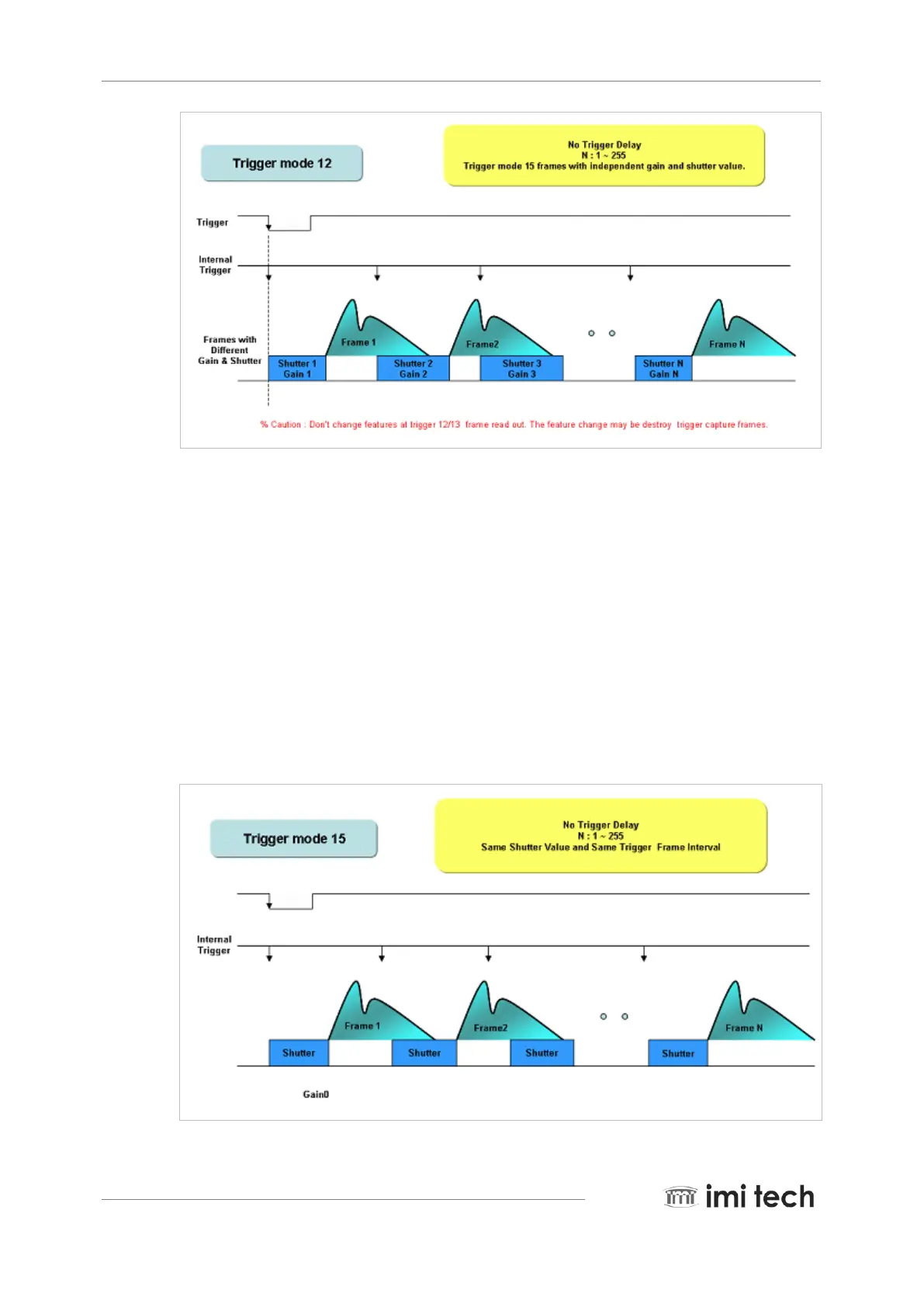

4.9.12. Trigger Mode 15
Trigger mode 15 provides the new functions where the user may capture as many images as they want with a
single external trigger signal. This mode is called ‘One-trigger multi-frames’. For this Mode 15, the value of the
shutter time should be fixed. Mode 15 is supported by both a H/W trigger and a S/W trigger.
