4.5. Hue
Color models support Hue control which changes the color phase of the picture by adjusting the Green gain. You
may use this feature when white balance correction, adjusting the Red and Blue values, does not give a satisfying
result.
4.6. Gamma
Gamma control defines the function between incoming light level and output picture level. Factory default setting
for Gamma is set to 1.0. Gamma value is adjustable in the range of 0.45 ~ 1.65 as per the table below. For
Gamma control inquiry and status register, follow the same definition as “BRIGHTNESS”

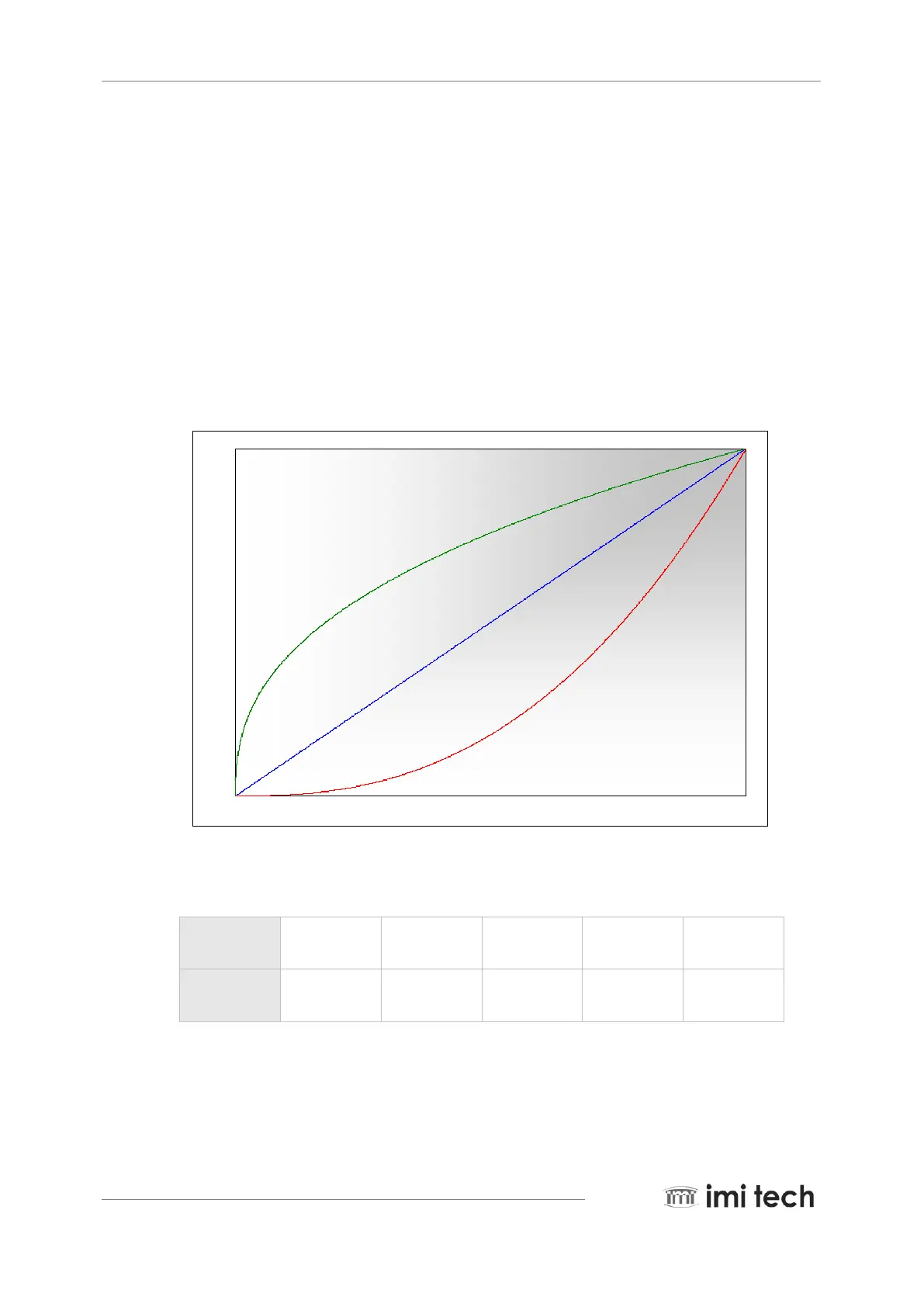

Gamma Range Table
Gamma
Value
0
1
2
3
4
Gamma
0.45
0.65
1.0
1.45
1.65
0
500
1000
1500
2000
2500
3000
3500
4000
0 500 1000 1500 2000 2500 3000 3500 4000
Gamma=0.45(0)
Gamma=1.0.(10)
Gamma=1.65(4)
