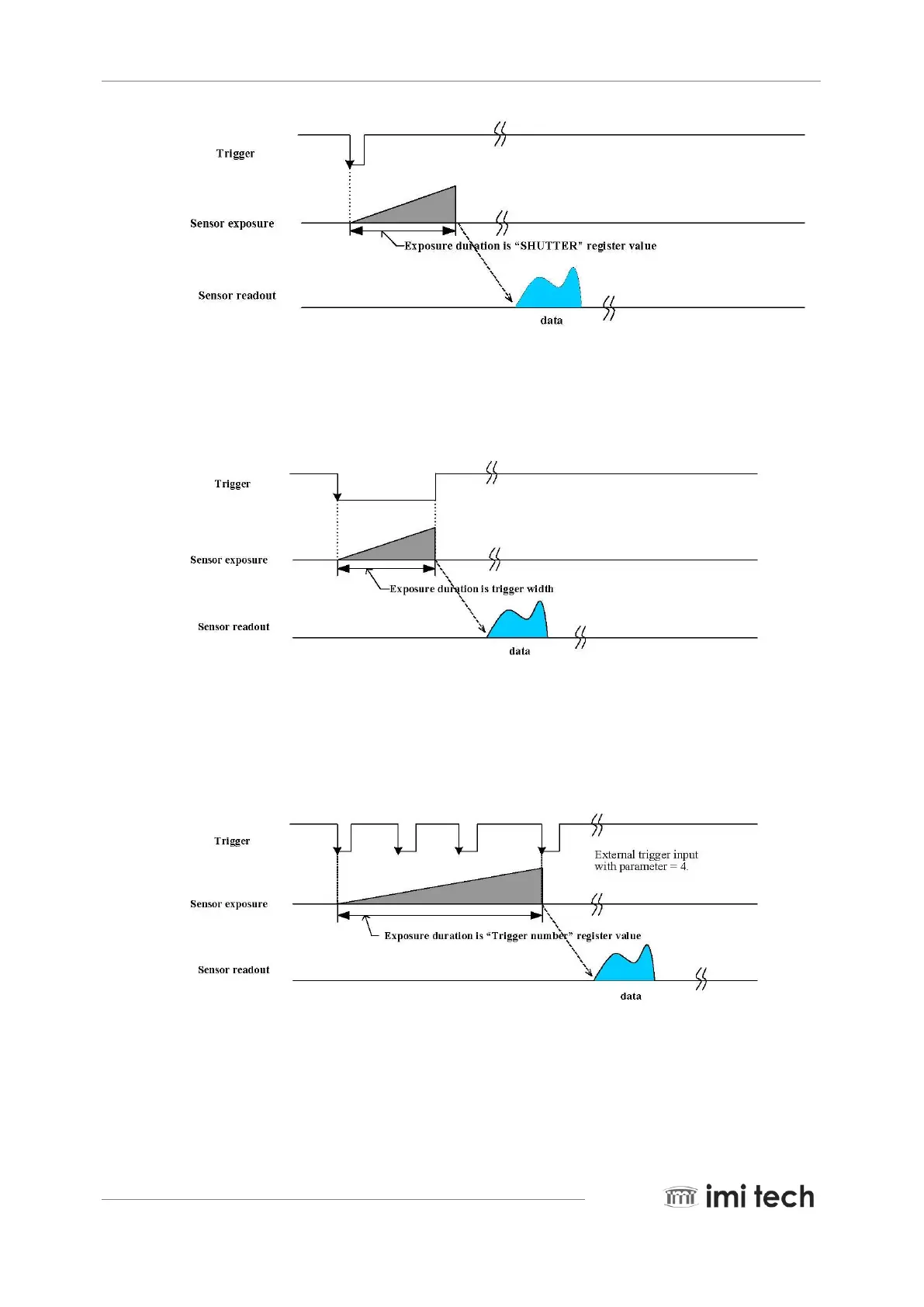

4.9.6. Trigger Mode 1
The camera starts integration of the incoming light from the external trigger input falling edge. Integration time is
equal to the low state time of the external trigger input. No parameter is needed.
4.9.7. Trigger Mode 2
The camera starts integration of incoming light from the first external trigger input falling edge. At the N-th
(parameter) external trigger input falling edge, integration will be stopped. A Parameter is required and shall be
two or more. (N >= 2)
4.9.8. Trigger Mode 4
This mode is “multiple shutter preset mode”. The camera starts integration of the incoming light from the first
external trigger input falling edge and exposes the incoming light at shutter time. It repeats this sequence for the
N-th (parameter) external trigger input falling edge; and then finishes integration. A parameter is required and shall
be one or more. (N >= 1)
