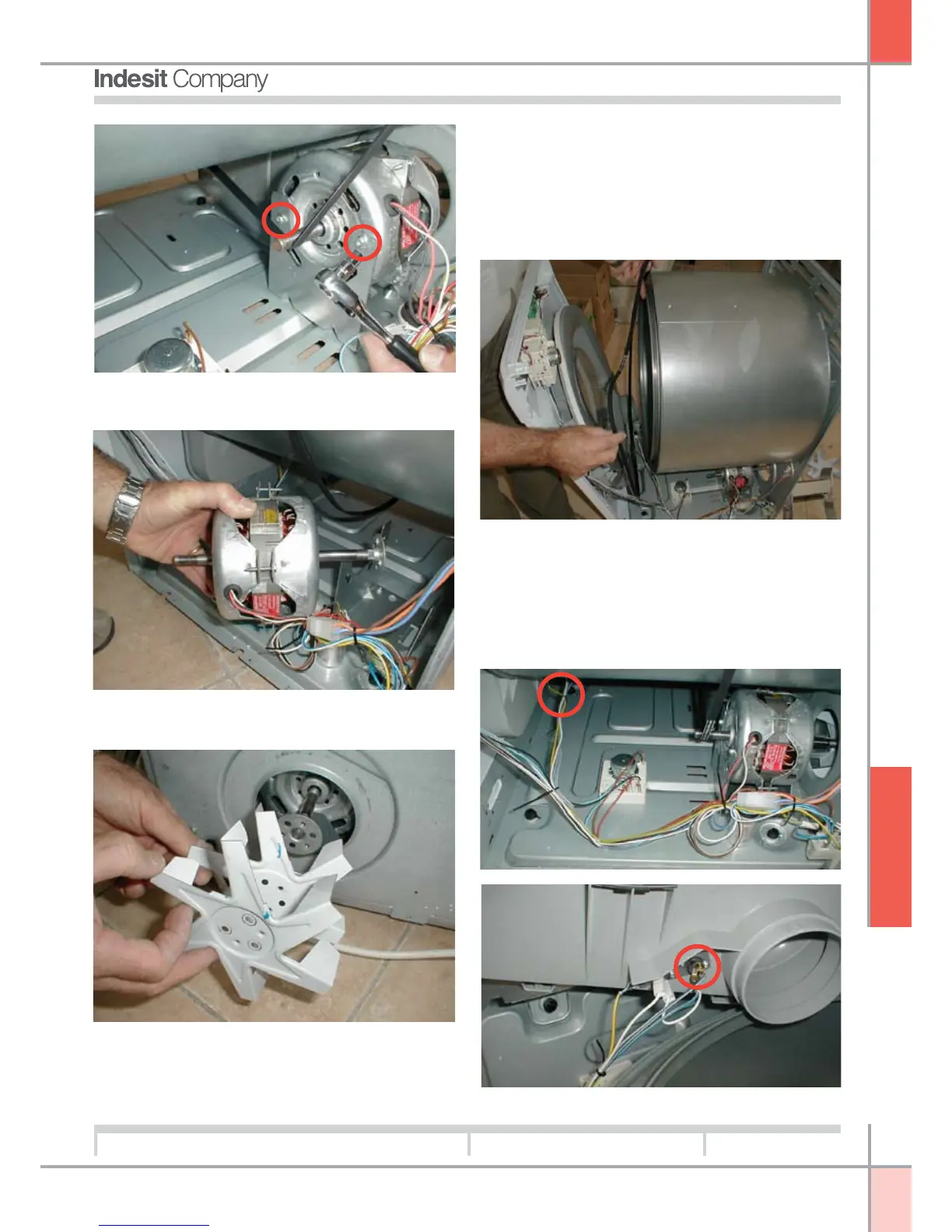

6. When refitted, the rear fans must be assembled
so that the 5 holes are correctly aligned
e) Removal of belt
1. Detach the two side panels
2. Detach the front panel and air duct
3. Detach the motor
4. Remove the belt from the front of the drum
g) Removal of ECO thermostats
1. Detach the front panel and air duct; the two ECO
thermostats are installed alongside the air duct
4. Release the motor by undoing the two front bolts
and the rear bolt securing it to the mounting
5. Having separated the belt from the shaft, the motor
can be separated from the base
