Service Manual
Yate Production Dryers
Edition
2006.09.21
The selected drying programme is initiated by pres-
sing the START button (see Start and programmes
section).
The HEAT button is used to select the drying tem-
perature (see Start and programmes section).
OUT: HIGH temperature.
IN: LOW temperature.
The ALARM buzzer sounds at the end of a drying
cycle.
OUT: Buzzer ON.
IN: Buzzer OFF.
The luminous ON indicator confirms that the dryer
is in operation. Pressing the ON/OFF button, the
indicator comes on and will remain alight until such
time as the door is opened or the machine switched
off. The indicator also remains alight when waiting
for a timer-delayed start.
The Drying Guide is a simple table indicating the
relationship between different fabrics and the loading
capacity of the drum.
The TIMER knob is used to set the interval of time
that must elapse before the start of a delayed drying
programme. Turn the knob clockwise to set the desi-
red length of time (number of hours) before the dryer
is to start; to go back, simply turn the knob counter-
clockwise (see Start and programmes section).
The PROGRAMME knob is used to select the de-
sired programme: rotate the knob clockwise, never
counterclockwise, until the indicator is positioned
on the programme to be selected (see Start and
programmes section).

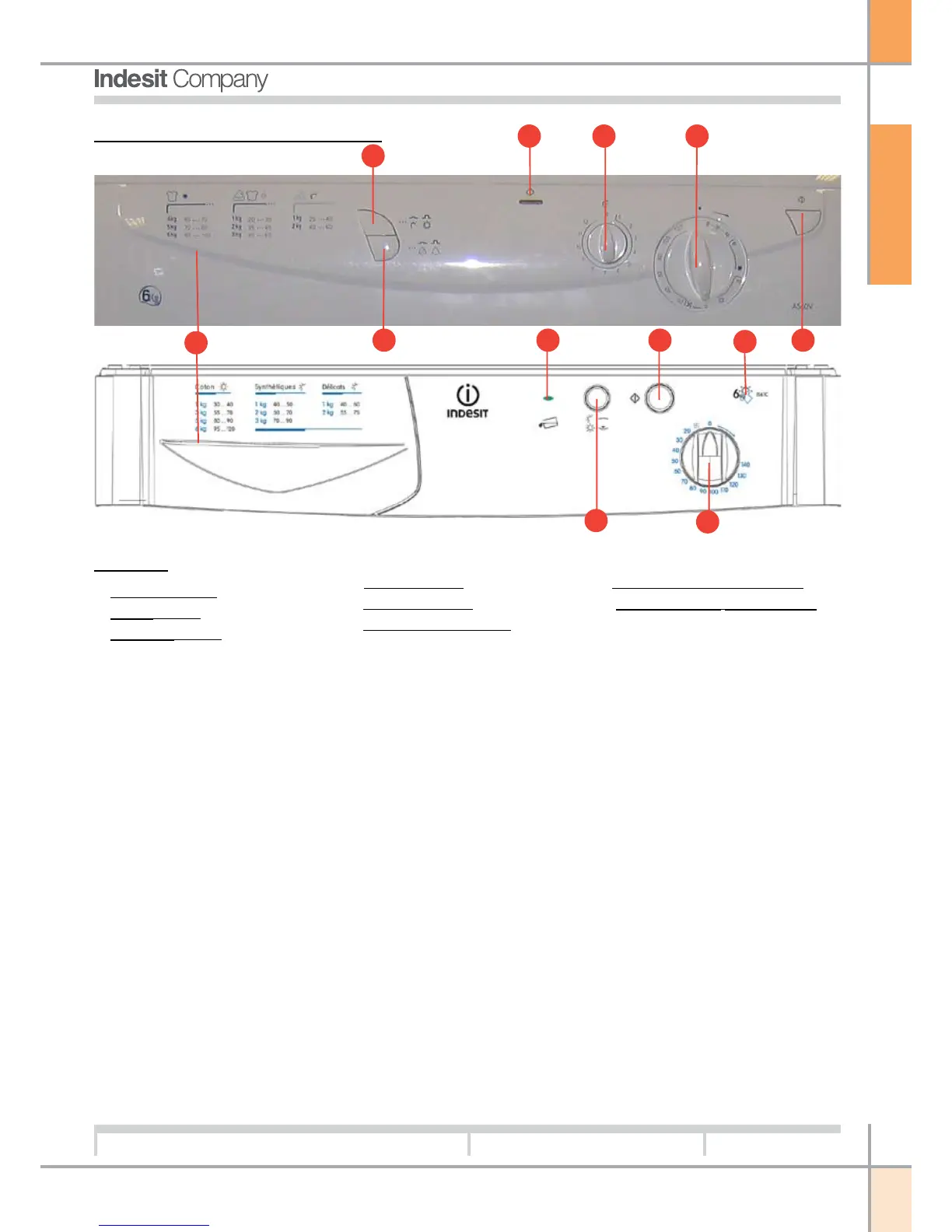

Legend:
1. DRYING GUIDE
2. HEAT buttons
3. BUZZER buttons
4. ON/OFF button
5. ON indicator Led
6. DELAYED START knob
7. PROGRAMME SELECTOR knob
8. EMPTY WATER indicator Led
4
1.3.3 MECHANICAL INTERFACE
1
2
5 6 7
4
2
4
5
7
3
8
