Inficon Protec P3000 User Manual

Maintenance 105
3 Place new filter pad in the cap nut and press it in carefully. The filter pad works in
each direction.
4 Place new filter pad in the cap nut and press it in carefully. The filter pad works in
each direction.
5 Put sniffer tip onto handle and screw tight with your hands.
Now you can use the Protec P3000XL as usual.

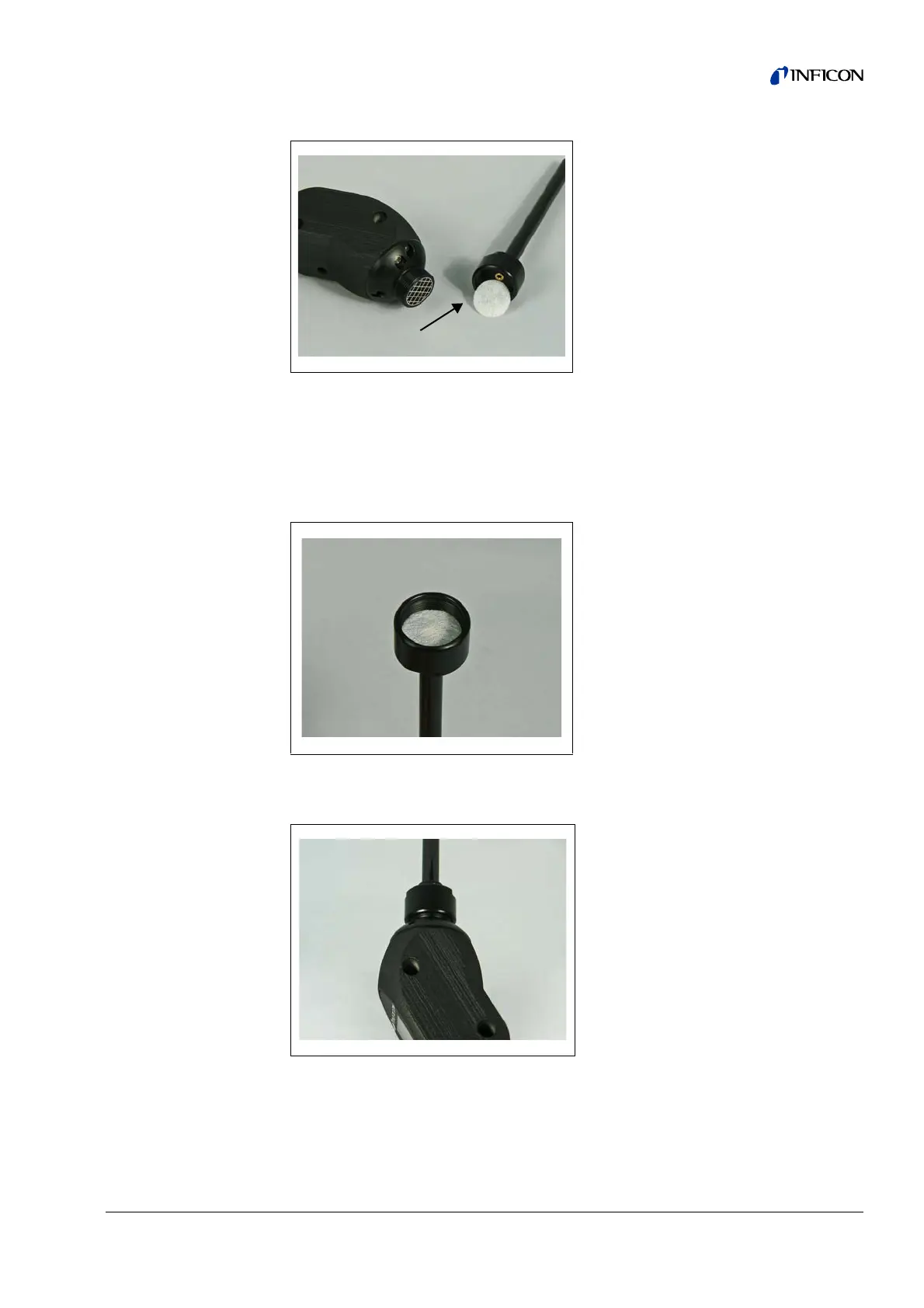

Fig. 79 Removed filter pad
Fig. 80 Filter pad in cap nut
Fig. 81 reassembly
