Inficon Protec P3000 User Manual

General Information 19
1.5 Instrument Views of the Protec P3000
1.6 Installation
1.6.1 Set up
How to remove the transportation lock:
The transportation lock is located on the bottom side of the Protec P3000 and
consists of a yellow knurled screws. Please remove this screw before starting-up the
leak detector. The Protec P3000 is supplied ready for operation. Initial start-up is
described in Section 3.1.

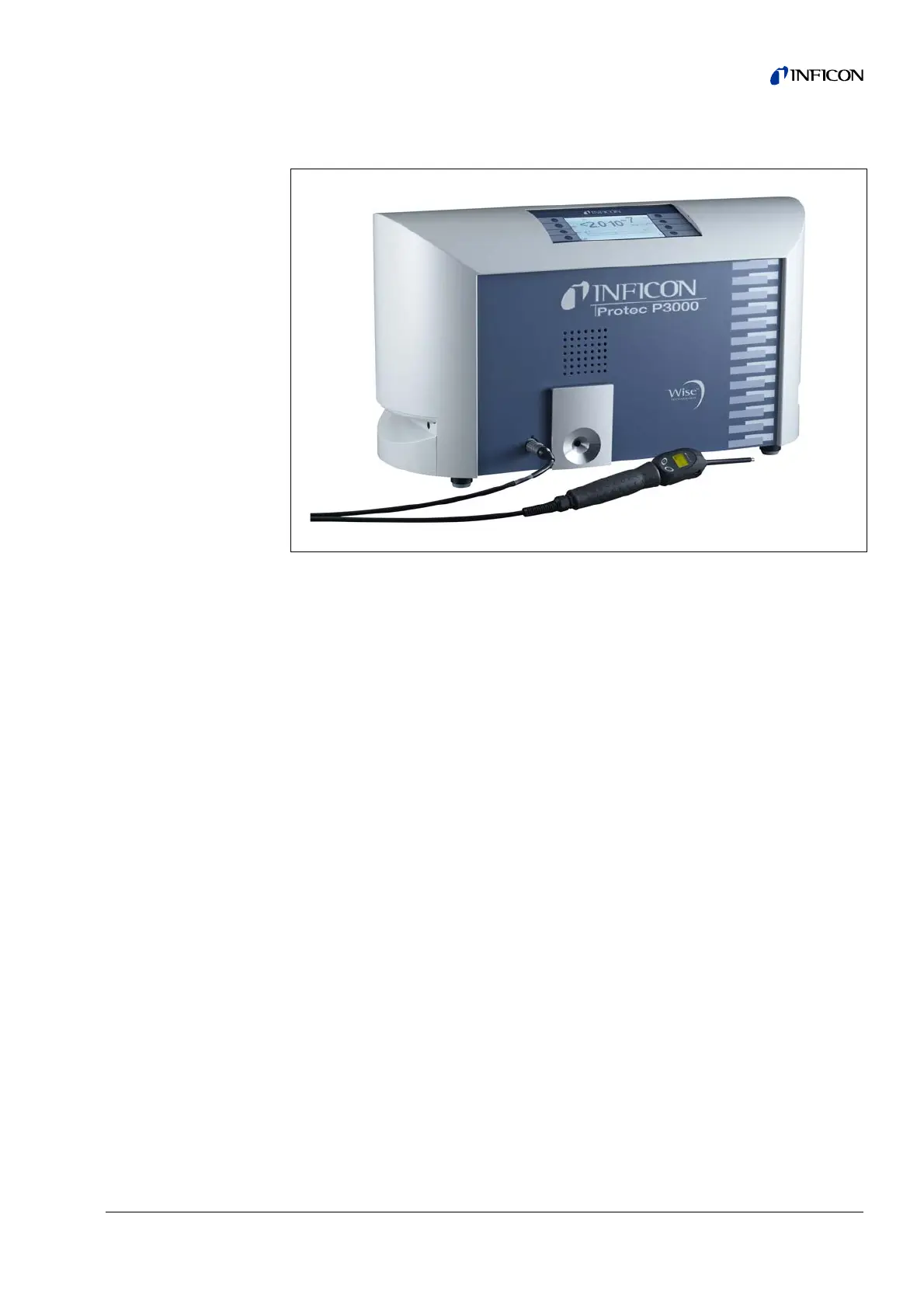

Fig. 2 Instrument views of Protec P3000
Pos. Description Pos. Description
1 Main display 4 Lemo Connector for SL3000 sniffer line
2 Speaker 5 Handle fore carrying the Protec P3000
3 PRO-Check reference leak
1
2
3
4
5
