tinb29e1-c (2019-10) VGC083A_B.om 21
For the glass IG, connect the IG cable (PN → 85) at the VGC083B controller as
described in the previous page. After installing the glass IG head on your vacuum
system, connect the head end of the IG cable as shown below.

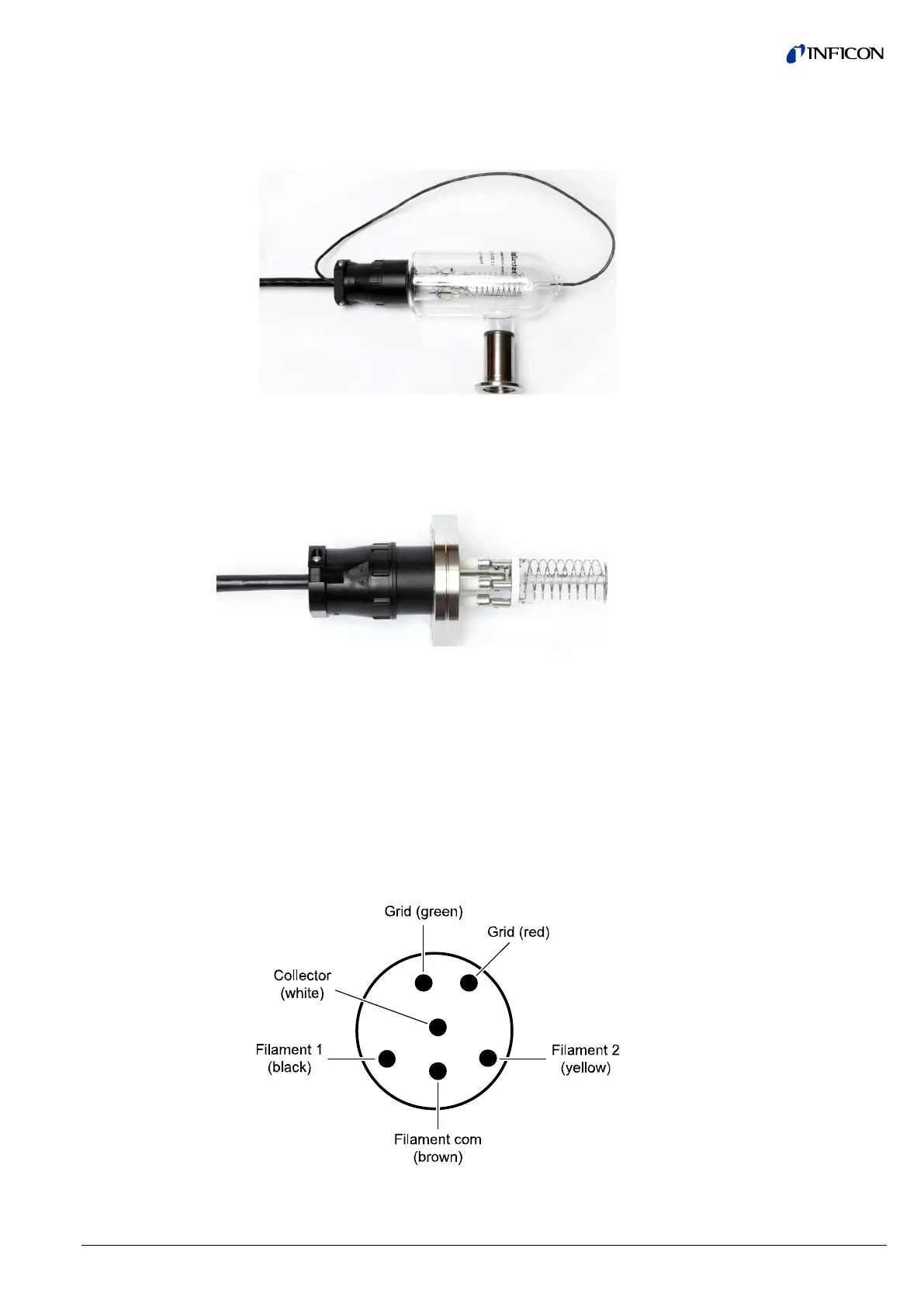

BAG052 / 053 glass IG head cable
connection
For the nude IG, connect the IG cable (PN → 85) at the VGC083B controller as
described in the previous page for VGC083A. After installing the nude IG head on
your vacuum system, connect the head end of the IG cable as shown below.
BAG051 nude IG head cable
connection
The bakeable nude IG cable (PN → 85) is provided with push-on sockets for
connection to the nude gauge pins (BAG050 pins) and is bakeable to 200 °C (See
Bakeable Cable wiring information below). All other cables listed above are rated
for 50 °C ambient temperature. All IG cables provided by INFICON can be used
with either single or dual filament ion gauges and filament switching is controlled
from the VGC083A controller.
When using the bakeable IG cable (PN → 85) connect the VGC083A to BAG050
or equivalent Nude EB- degas IG head according to wire colors listed below.
BAG050 nude UHV EB-degas IG or
equivalent B-A gauge pin pattern
4.2.3.2 Bakeable Nude IG Cable
VGC083A: BAG050 only
Do not use with
