X1 Service Guide 28
Assembly Notes

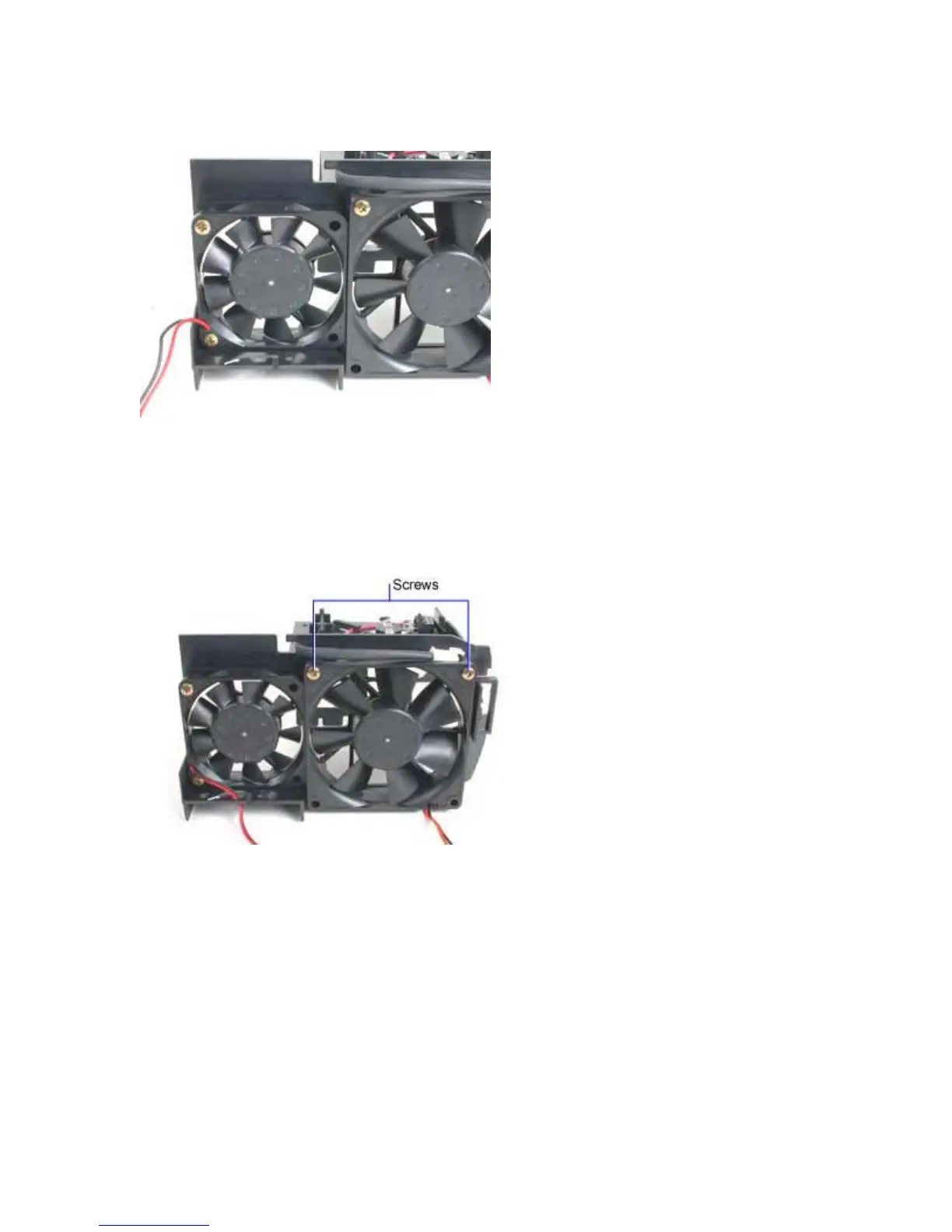

♦ Position the fan against the lamphouse with fan label facing the lamphouse and the cable recess at
the left lower side. The cables should exit the fan at the recess on the side opposite the label.
♦ Replace and tighten the two M3x25 Plastite Phillips screws. Do not overtighten the screws.
♦ Make sure that the cables are clear of the fan blades.
Removing the 80mm Fan
1. Remove the two M3x30 Plastite Phillips screws that fasten the fan to the lamphouse.
2. Lift the fan away from the lamphouse.
