InFocus X1 Service Guide

X1 Service Guide 29
Assembly Notes

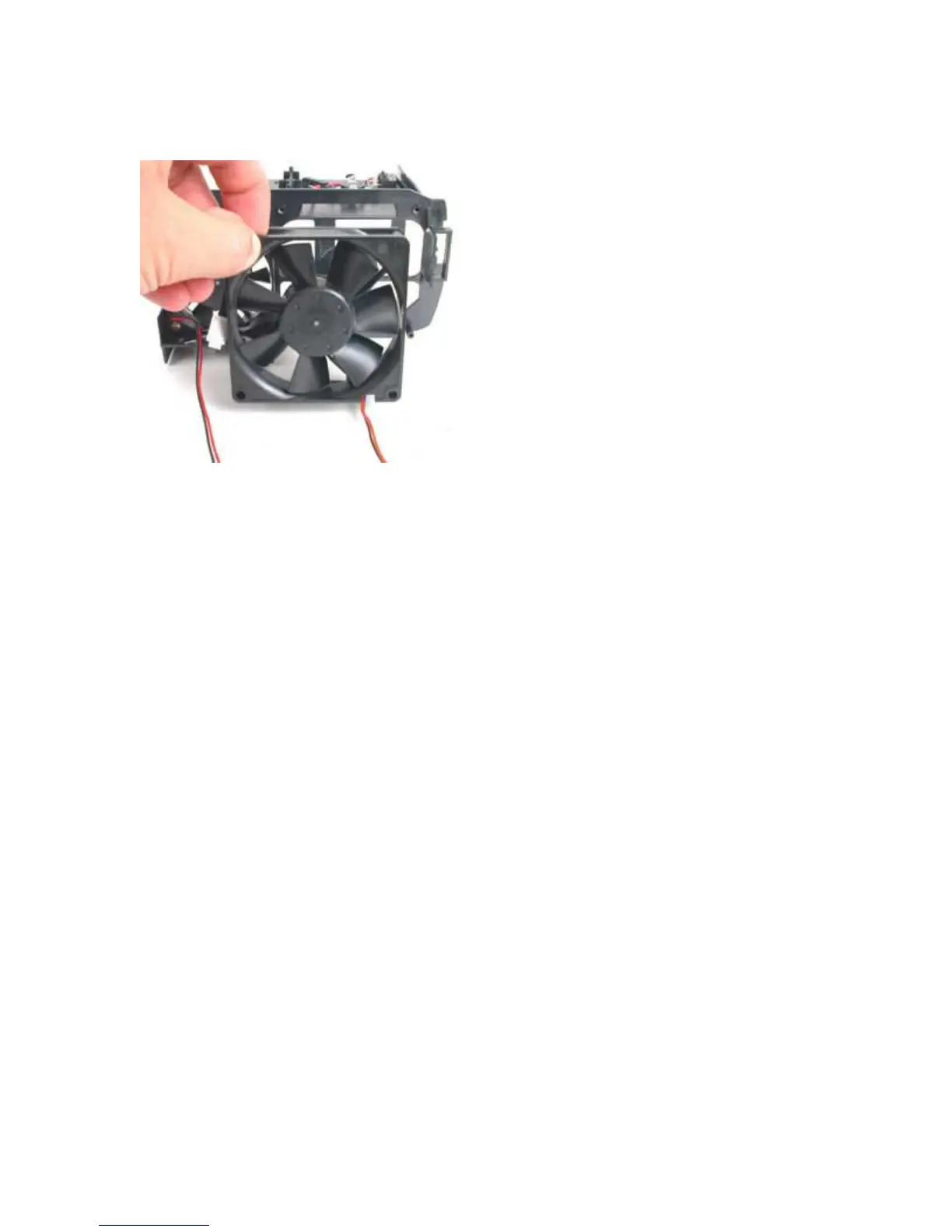

♦ Position the fan against the lamphouse with fan label facing the lamphouse and the cable recess at
the bottom right side. The cables should exit the fan at the recess on the side opposite the label.
♦ Replace and tighten the two M3x30 Plastite Phillips screws. Do not overtighten the screws.
♦ Make sure that the cables are clear of the fan blades.
