InFocus X16 Reference Guide

Operation 29

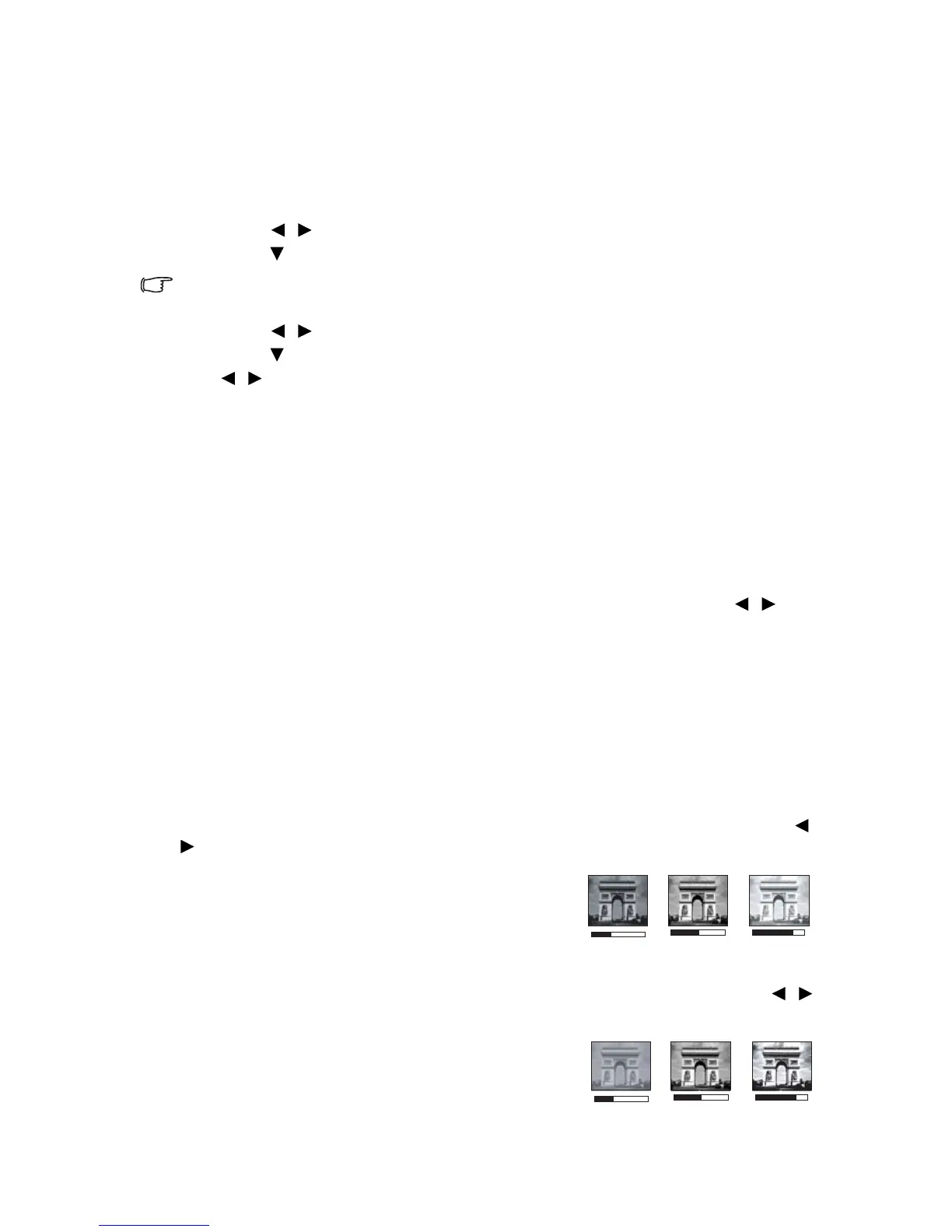

Setting the User 1/User 2 mode
There are two user-definable modes if the current available picture modes are not
suitable for your need. You can use one of the picture modes (except the User 1/
User 2) as a starting point and customize the settings.
1. Press MENU/EXIT to open the On-Screen Display (OSD) menu.
2. Go to the PICTURE > Preset Mode menu.
3. Press / to select User 1 to User 2.
4. Press to highlight Reference Mode.
This function is only available when User 1, or User 2 mode is selected up in the Preset Mode
sub-menu item.
5. Press / to select a picture mode that is closest to your need.
6. Press to select a sub-menu item to be changed and adjust the value with
/ . See "Fine-tuning the image quality in user modes" below for details.
7. When all settings have been done, highlight Save Settings and press MODE/
ENTER to store the settings.
8. The confirmation message 'Setting Saved' displays.
Using Wall Color
In the situation where you are projecting onto a colored surface such as a painted
wall which may not be white, the Wall Color feature can help correct the projected
picture’s color to prevent possible color difference between the source and
projected pictures.
To use this function, go to the DISPLAY > Wall Color menu and press / to
select a color which is the closest to the color of the projection surface. There are
several precalibrated colors to choose from: Light Yellow, Pink, Light Green,
Blue, and Blackboard.
Fine-tuning the image quality in user modes
According to the detected signal type, there are some user-definable functions
available when User 1 or User 2 mode is selected. You can make adjustments to
these functions based on your needs.
Adjusting Brightness
Highlight Brightness in the PICTURE menu and adjust the values by pressing /
on the projector or remote control.
The higher the value, the brighter the image. And
lower the setting, darker the image. Adjust this
control so the black areas of the image appear just
as black and that detail in the dark areas is visible.
Adjusting Contrast
Highlight Contrast in the PICTURE menu and adjust the values by pressing /
on the projector or remote control.
The higher the value, the greater the contrast. Use
this to set the peak white level after you have
previously adjusted the Brightness setting to suit
your selected input and viewing environment.
+50
+30
+70
0
+30
-30

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
