InFocus X16 Reference Guide

Introduction6

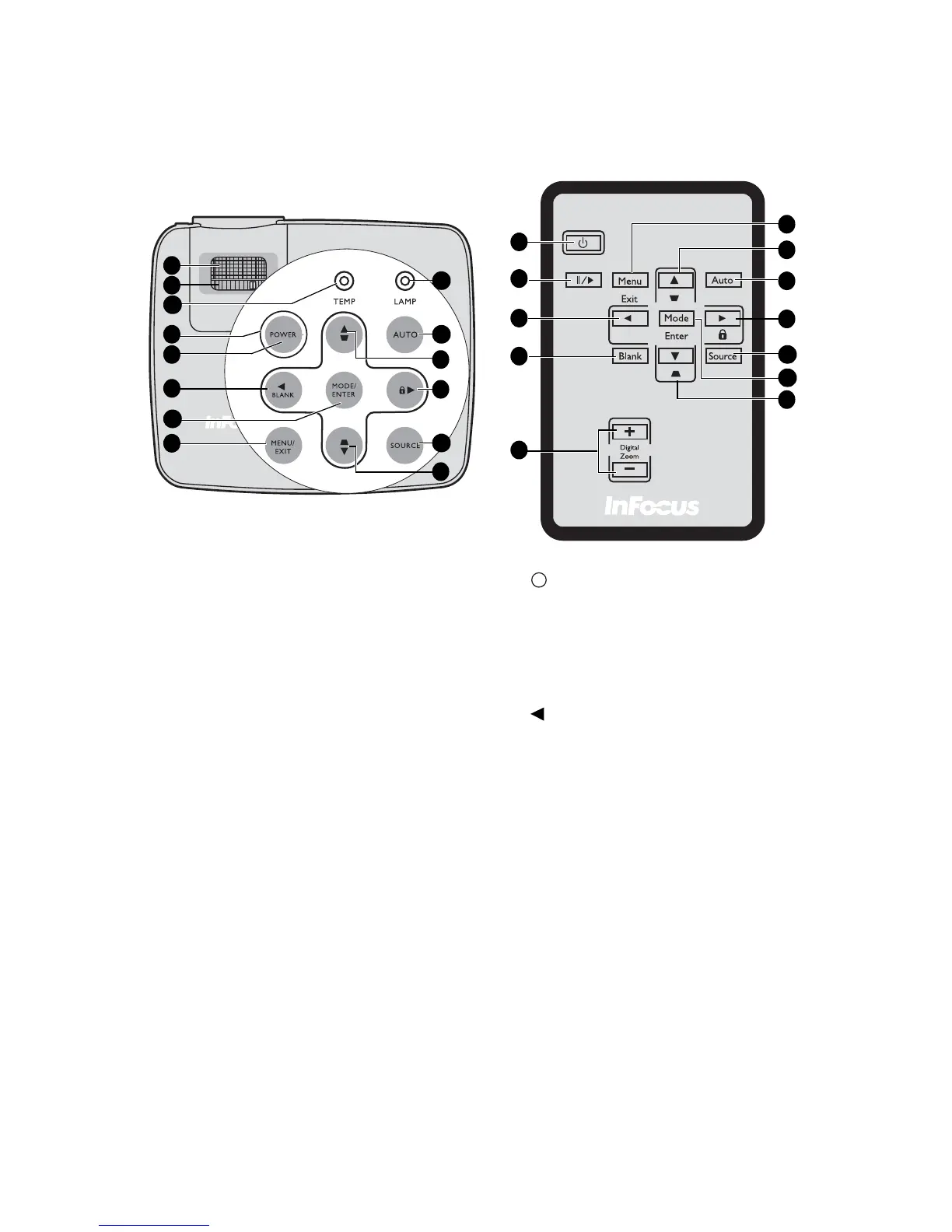

Controls and functions
Projector and remote control
1. Focus ring
Adjusts the focus of the projected
image. See "Fine-tuning the image size
and clarity" on page 25 for details.
2. Zoom ring
Adjusts the size of the image. See
"Fine-tuning the image size and clarity"
on page 25 for details.
3. TEMPerature indicator light
Lights up red if the projector's
temperature becomes too high. See
"Indicators" on page 49 for details.
4. POWER indicator light
Lights up or flashes when the projector
is under operation. See "Indicators" on
page 49 for details.
5. POWER
Toggles the projector between
standby mode and on. See "Starting
up the projector" on page 19 and
"Shutting down the projector" on page
35 for details.
6. Left/BLANK
Used to hide the screen picture. See
"Hiding the image" on page 33 for
details.
7. MODE/ENTER
Selects an available picture setup
mode. See "Selecting a picture mode"
on page 28 for details.
Enacts the selected On-Screen
Display (OSD) menu item. See "Using
the menus" on page 20 for details.
1
8
12
9
10
7
13
3
6
4
5
11
11
2
5
13
14
15
16
17
12
8
11
11
7
10
I
I

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
