Positioning your projector12

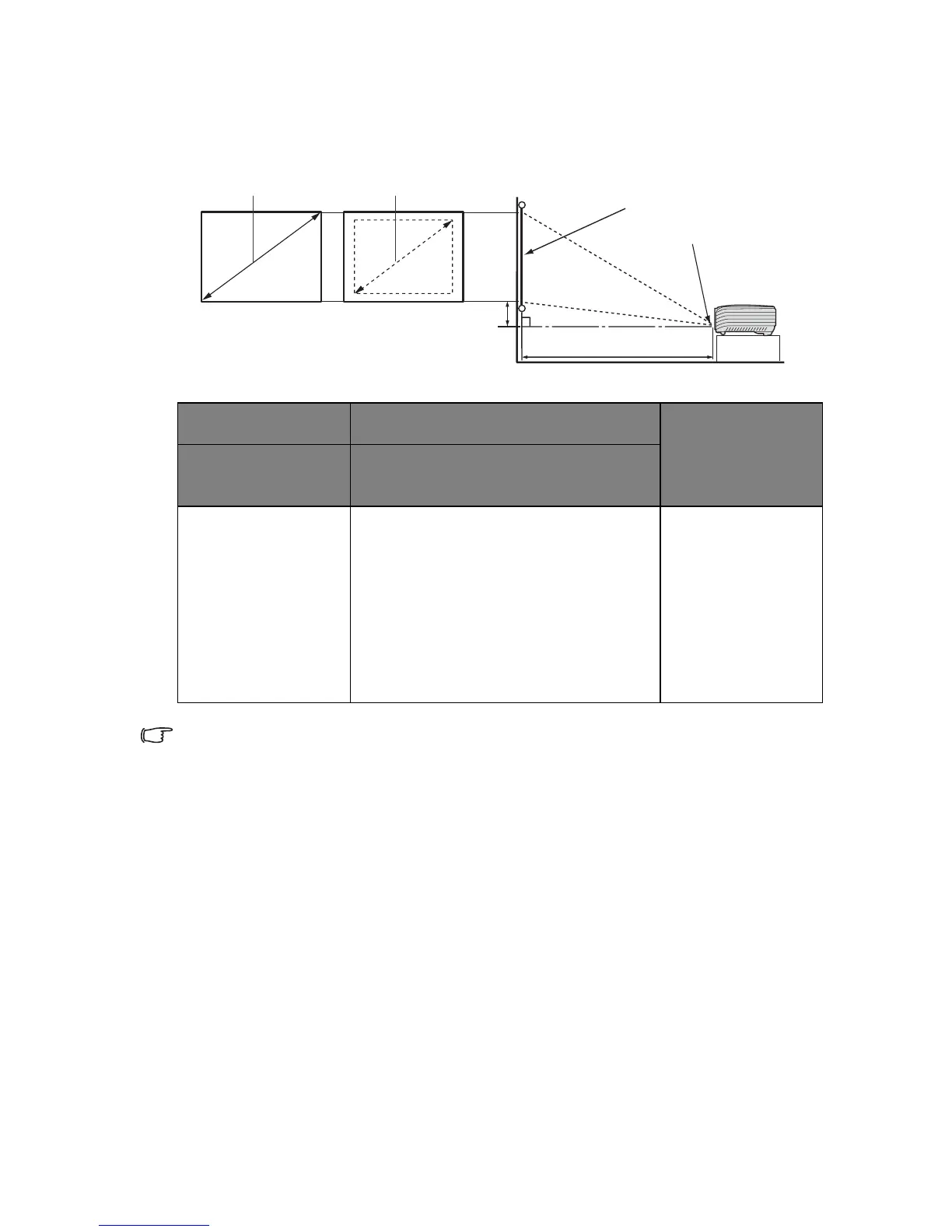

Projection dimensions
Refer to "Dimensions" on page 52 for the center of lens dimensions of this projector
before calculating the appropriate position.
There is 3% tolerance among these numbers due to optical component variations. InFocus
recommends that if you intend to permanently install the projector, you should physically test
the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.
4:3 screen diagonal Recommended projection distance
from screen in mm
Vertical offset in
mm
Feet Inches mm Min length
(with max.
zoom)
Average Max length
(with min.
zoom)
4 48 1219 1846 1938 2031 73
59 1500 2271 2385 2498 90
5 60 1524 2308 2423 2538 91
6 72 1829 2769 2908 3046 110
79 2000 3028 3180 3331 120
7 84 2134 3231 3392 3554 128
8 96 2438 3692 3877 4062 146
98 2500 3786 3975 4164 150
9 108 2743 4154 4362 4569 165
118 3000 4543 4770 4997 180
Projection distance
Center of lens
Screen
Vertical offset
Maximum zoom
Minimum zoom

Table of Contents

Other manuals for InFocus X16

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the InFocus X16 and is the answer not in the manual?

InFocus X16 Specifications

Display IconDisplay
native resolution800 x 600
display technology0.55” LVDS DLP DMD
brightness2400 lm
Connectivity IconConnectivity
input sourcesVGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sourcesVGA (HD15)
controlPC control through RS232
Video Compatibility IconVideo Compatibility
computer compatibilityVGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibilityNTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio4:3/16:9
Projection IconProjection
minimum projection distance1.5 ~ 6m
lens offset120%
image size0.75m ~ 6.5m (27” ~ 252")
Power and Consumption IconPower and Consumption
power consumption285W (typical) / 5W in standby
power supply100~240Vac, 50/60Hz
lamp185W / 4000 hours (Eco mode)
Operating Environment IconOperating Environment
operating temperature5 – 35°C
audible noise29dB
brightness uniformity80%
Weight and Dimensions IconWeight and Dimensions
product dimensions225 x 113 x 264mm
product weight5.3 lbs (2.4 kg)
product colorBlack
