InFocus X16 Reference Guide

Connection18
Connecting a composite Video source device
Examine your Video source device to determine if it has a set of unused composite
Video output sockets available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the
device.
To connect the projector to a composite Video source device:
1. Take a Video cable and connect one end to the composite Video output
socket of the Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the
projector.
3. If you wish to make use of the projector (mixed mono) speaker in your
presentations, take a suitable audio cable and connect one end of the cable to
the audio output socket of the device, and the other end to the AUDIO socket
of the projector.
Once connected, the audio can be controlled by the projector On-Screen
Display (OSD) menus. See "Adjusting the sound" on page 34 for details.

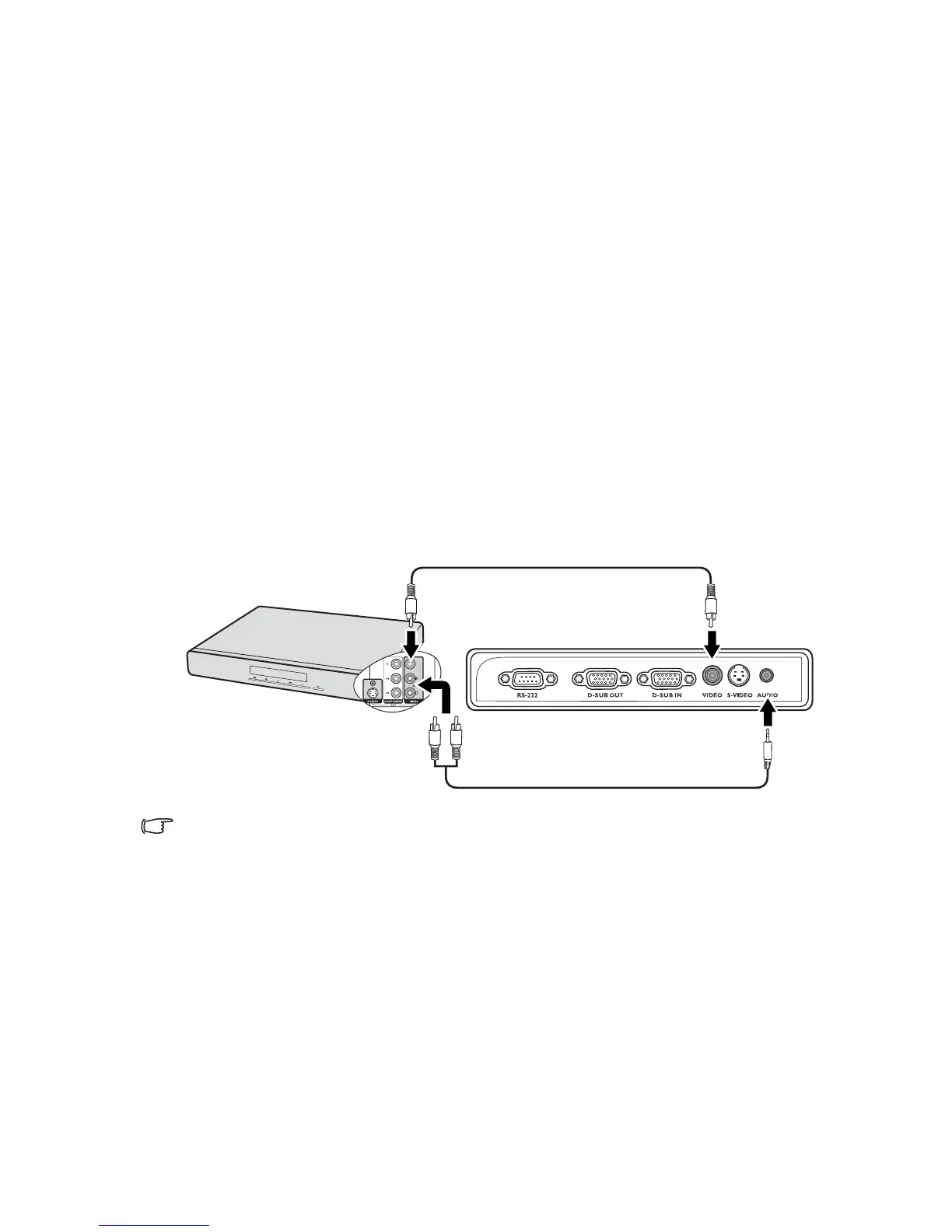

The final connection path should be like that shown in the following diagram:
• The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 15 for details.
• If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
• You need only connect to this device using a composite Video connection if Component
Video and S-Video inputs are unavailable for use. See "Connecting Video source devices"
on page 15 for details.
AV device
Video cable
Audio cable

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
