InFocus X16 Reference Guide

Operation24

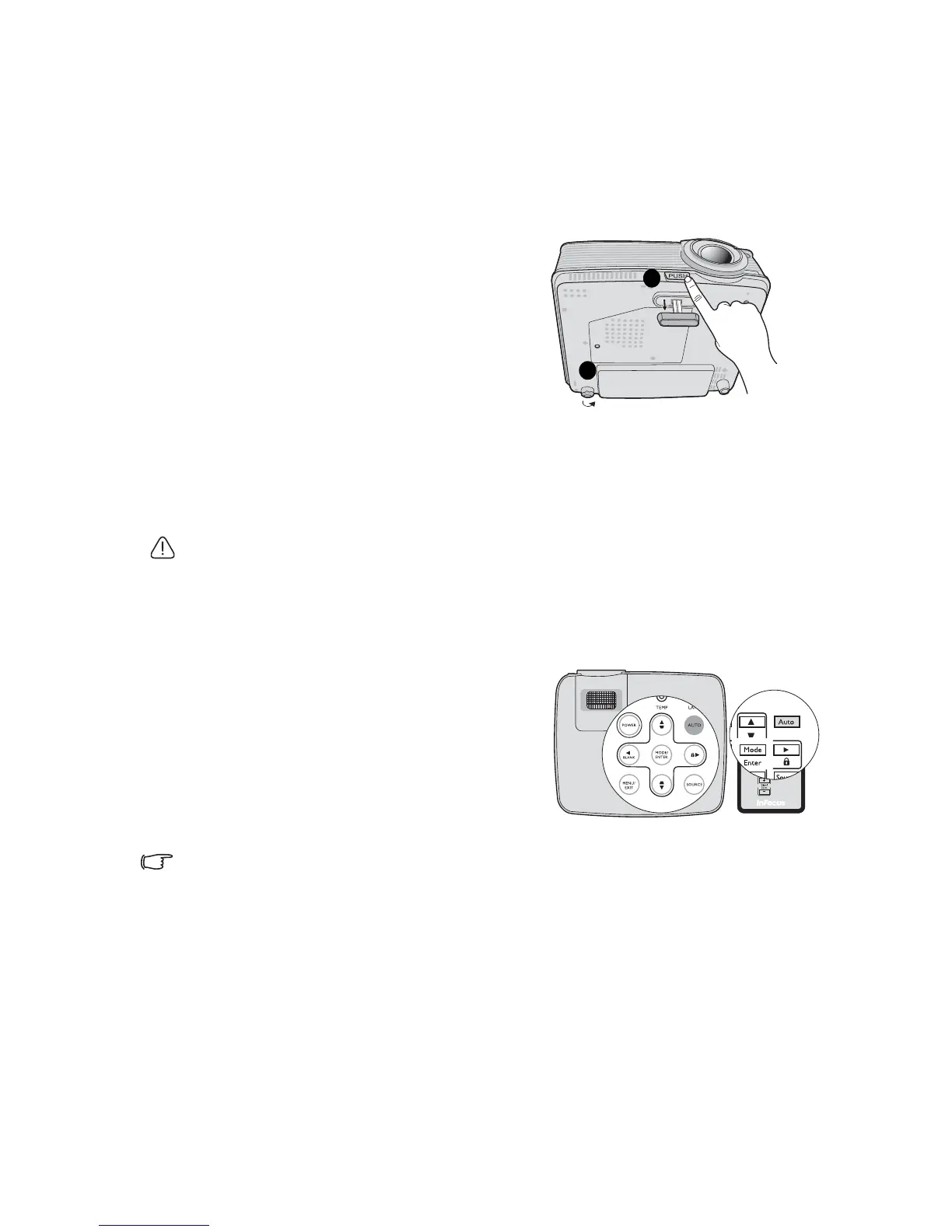

Adjusting the projected image
Adjusting the projection angle
The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster
foot. These adjusters change the image height and projection angle. To adjust the
projector:
1. Press the quick-release button and lift the
front of the projector. Once the image is
positioned where you want it, release the
quick-release button to lock the foot in
position.
2. Screw the rear adjuster foot to fine tune
the horizontal angle.
To retract the foot, hold up the projector while
pressing the quick-release button, then slowly
lower the projector. Screw the rear adjuster
foot in a reverse direction.
If the projector is not placed on a flat surface or the screen and the projector are not
perpendicular to each other, the projected image becomes trapezoidal. To correct
this situation, see "Correcting keystone" on page 25 for details.
• Do not look into the lens while the lamp is on. The strong light from the lamp may cause
damage to your eyes.
• Be careful when you press the adjuster button as it is close to the exhaust vent where hot
air comes from.
Auto-adjusting the image
In some cases, you may need to optimize the
picture quality. To do this, press AUTO on the
projector or remote control. Within 3 seconds,
the built-in Intelligent Auto Adjustment
function will re-adjust the values of Frequency
and Clock to provide the best picture quality.
The current source information will be
displayed in the upper left corner of the
screen for 3 seconds.
• The screen will be blank while AUTO is functioning.
• This function is only available when PC signal (analog RGB) is selected.
1
2

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
