InFocus X16 Reference Guide

Introduction 5

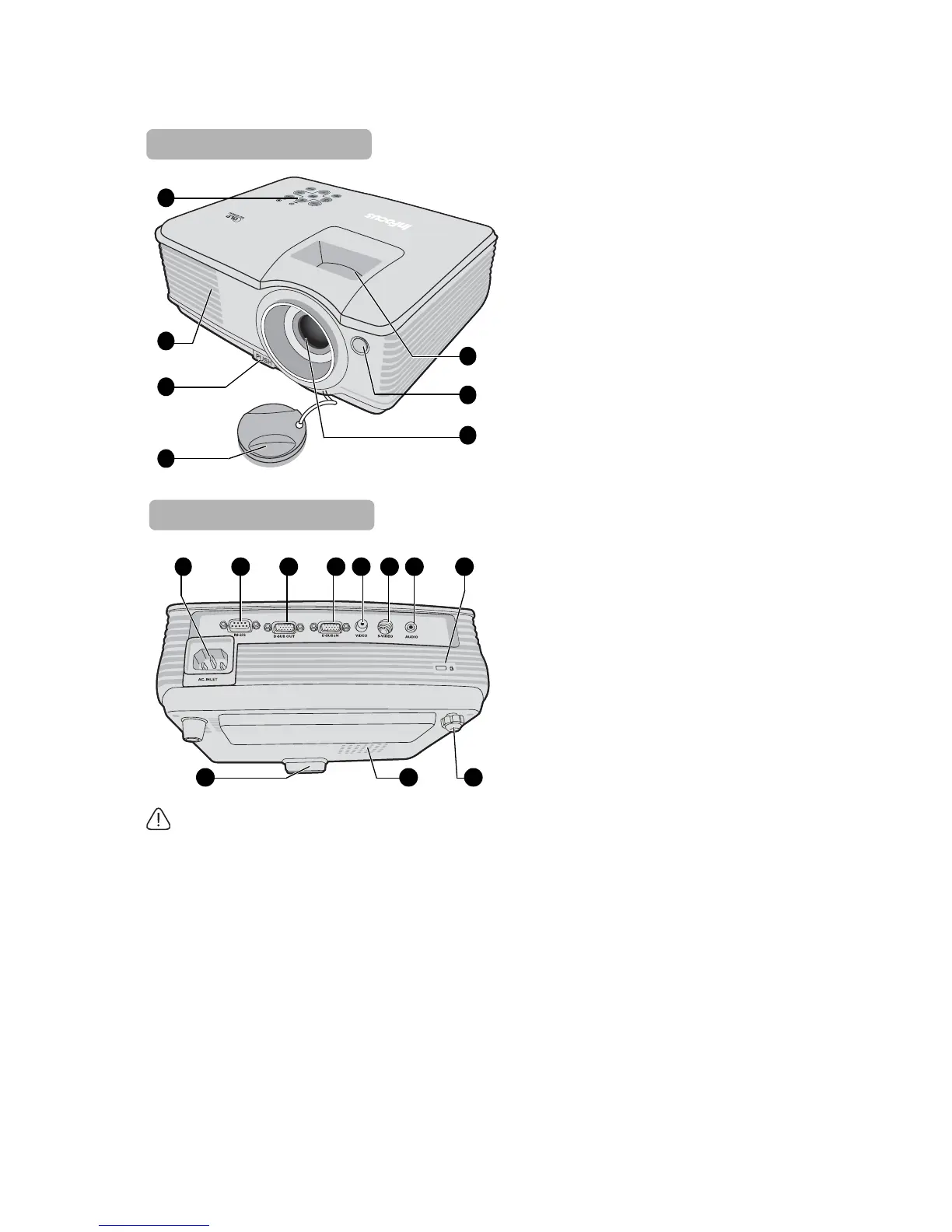

Projector exterior view
1. External control panel
(See "Projector and remote
control" on page 6 for details.)
2. Vent (heated air exhaust)
3. Quick-release button
4. Lens cover
5. Focus ring and Zoom ring
6. Front IR remote sensor
7. Projection lens
8. AC power cord inlet
9. RS-232 control port
10. RGB signal output socket
11. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket
12. Video input socket
13. S-Video input socket
14. Audio signal input socket
15. Kensington anti-theft lock slot
16. Quick-release foot
17. Lamp cover
18. Rear adjuster foot
Warning
• THIS APPARATUS MUST BE EARTHED.
• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Front/upper side
7
6
1
2
3
4
5
Rear/lower side
16 18
1513121110
9
8
17
14

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
