InFocus X16 Reference Guide

Operation28
Optimizing the image
Selecting a picture mode
The projector is preset with several
predefined picture modes so that you can
choose one to suit your operating
environment and input signal picture type.
To select a operation mode that suits your
need, you can follow one of the following
steps.

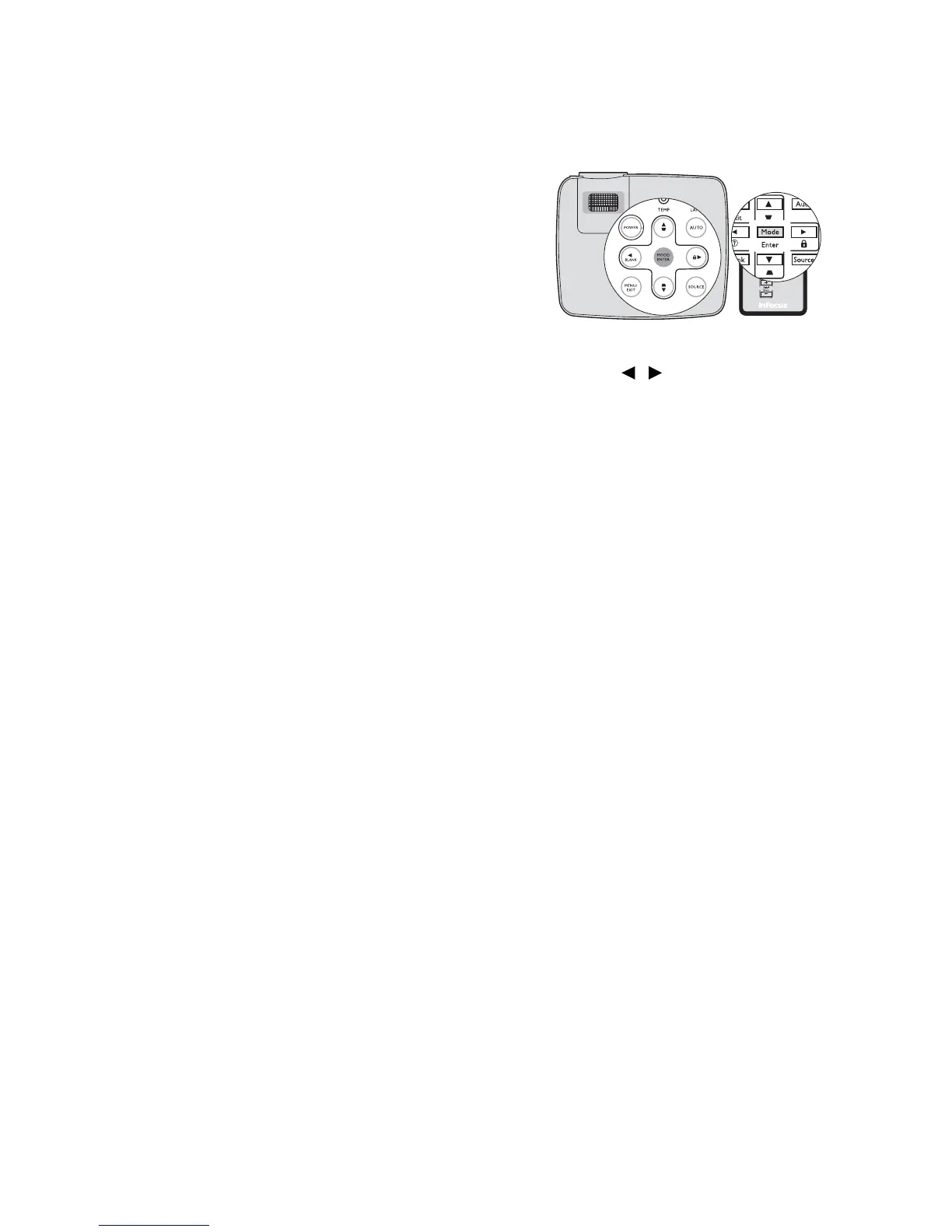

• Press MODE/ENTER on the remote
control or projector repeatedly until your desired mode is selected.
• Go to the PICTURE > Preset Mode menu and press / to select a desired
mode.
Picture modes for different types of signals
The picture modes available for different types of signals are listed below.
PC input signals: D-Sub / Comp. (analog RGB)
1. Brightest mode (Default): Maximizes the brightness of the projected image.
This mode is suitable for environments where extra-high brightness is
required, such as using the projector in well lit rooms.
2. Presentation mode: Is designed for presentations. The brightness is
emphasized in this mode to match PC and notebook coloring.
3. Photo mode: Maximizes the purity of RGB colors to provide true-to-life
images regardless of brightness setting. It is most suitable for viewing photos
taken with an sRGB compatible and properly calibrated camera, and for
viewing PC graphic and drawing applications such as AutoCAD.
4. Cinema mode: Is appropriate for playing colorful movies, video clips from
digital cameras or DVs through the PC input for best viewing in a blackened
(little light) environment.
5. User 1/User 2 mode: Recalls the settings customized based on the current
available picture modes. See "Setting the User 1/User 2 mode" on page 29 for
details.
Video input signals: S-Video, Video, D-Sub / Comp. (YPbPr)
1. Brightest mode: Is suitable for playing gamebox-based video games in a
normal living room lighting level environment.
2. Standard mode (Default): Is appropriate for viewing colorful movies, video
clips from digital cameras or DVs.
3. Cinema mode: Is suitable for enjoying dark movies or DVD movies best
viewed in a blackened (little light) home cinema or lounge room environment.
4. User 1/User 2 mode: Recalls the settings customized based on the current
available picture modes. See "Setting the User 1/User 2 mode" on page 29 for
details.
/OG
O
L
emaNledoM
aerA
35.0 mm
mm0.54

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
