InFocus X16 Reference Guide

Operation26
Magnifying and searching for details
If you need to find the details on the projected picture, magnify the picture. Use the
direction arrow keys for navigating the picture.
• Using the remote control

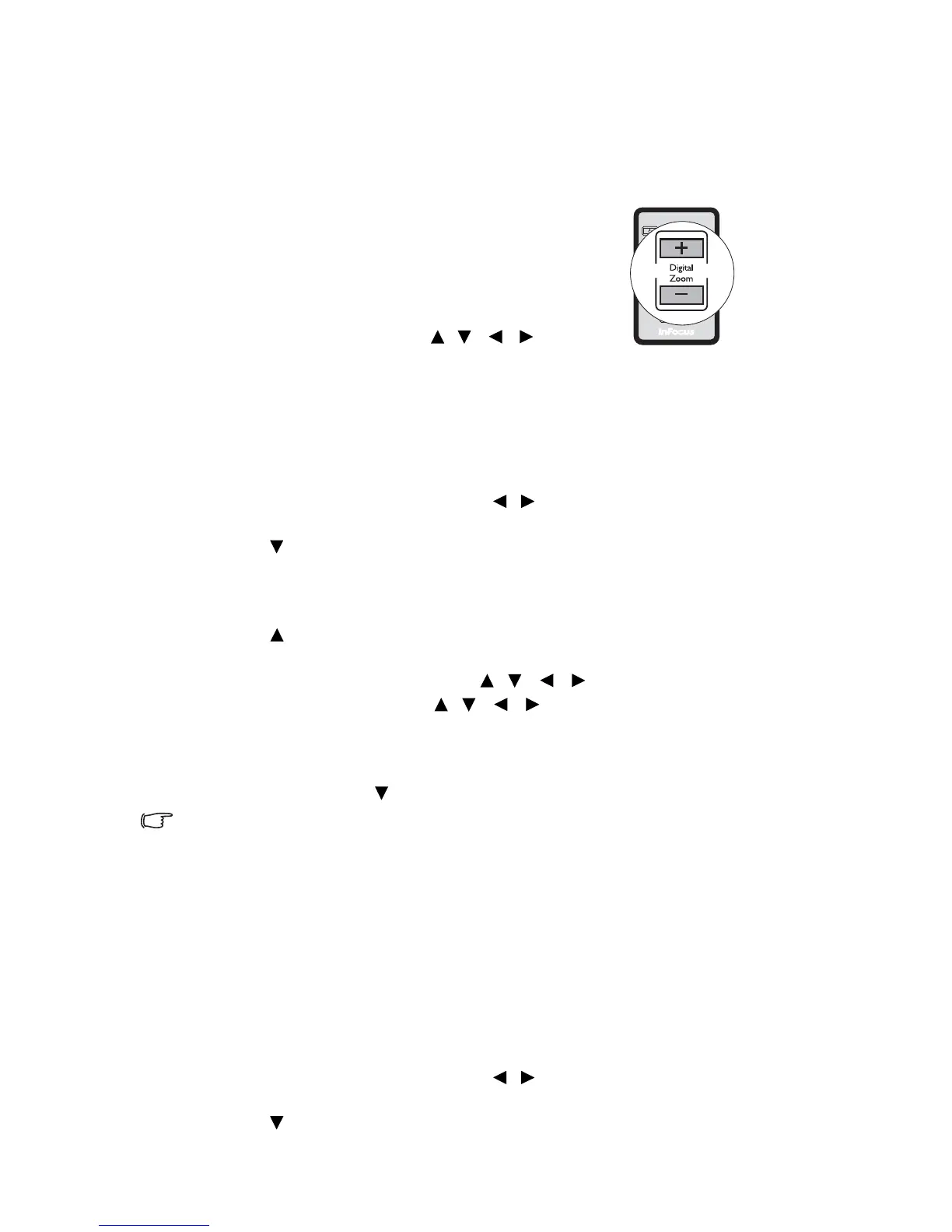

1. Press Digital Zoom +/- to display the
Zoom bar.
2. Press Digital Zoom + to magnify the
center of the picture. Press the key
repeatedly until the picture size is suitable
for your need.
3. Use the directional arrows ( , , , )
on the projector or remote control to
navigate the picture.
4. To restore the picture to its original size, press AUTO. You can also press
Digital Zoom -. When the key is pressed again, the picture is further reduced
until it is restored to the original size.
• Using the OSD menu
1. Press MENU/EXIT and then press / until the DISPLAY menu is
highlighted.
2. Press
to highlight Digital Zoom and press MODE/ENTER. The Zoom bar
displays.
3. Repeat steps 2-4 in the section of "Using the remote control" above. Or if you
are using the projector control panel, continue to the following steps.
4. Press on the projector repeatedly to magnify the picture to a desired size.
5. To navigate the picture, press MODE/ENTER to switch to the paning mode
and press the directional arrows ( , , , ) to navigate the picture.
6. Use the directional arrows ( , , , ) on the projector or remote control
to navigate the picture.
7. To reduce size of the picture, press MODE/ENTER to switch back to the zoom
in/out functionality, and press AUTO to restore the picture to its original size.
You can also press repeatedly until it is restored to the original size.
The picture can only be navigated after the picture is magnified. You can further magnify the
picture while searching for details.
Selecting the aspect ratio
The 'aspect ratio' is the ratio of the image width to the image height. Most analog
TV and computers are in 4:3 ratio, which is the default for this projector, and digital
TV and DVDs are usually in 16:9 ratio.
With the advent of digital signal processing, digital display devices like this projector
can dynamically stretch and scale the image output to a different aspect than that of
the image input signal.
To change the projected image ratio (no matter what aspect the source is):
1. Press MENU/EXIT and then press / until the DISPLAY menu is
highlighted.
2. Press
to highlight Aspect Ratio.

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
