InFocus X16 Reference Guide

Operation 19
Operation

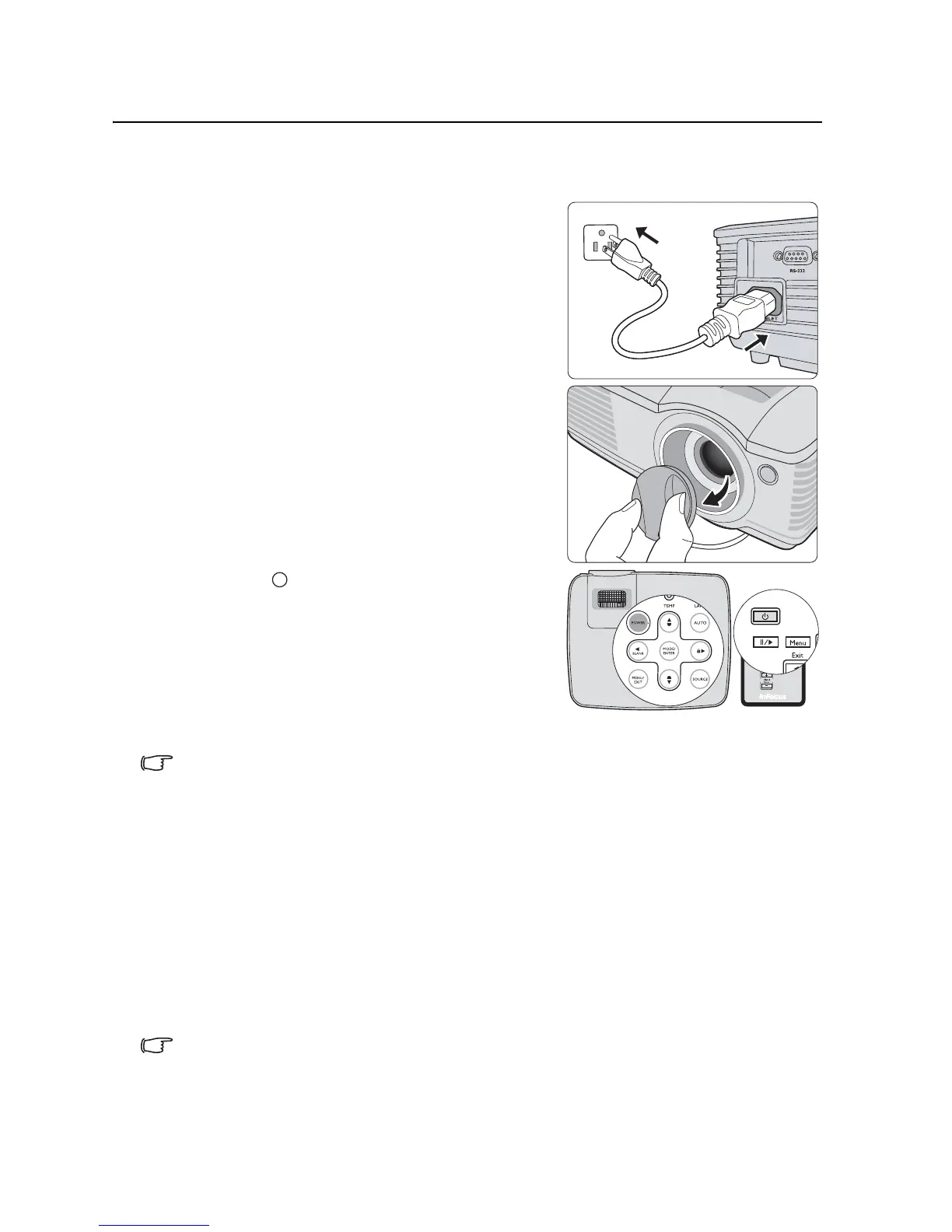

Starting up the projector
1. Plug the power cord into the projector and
into a wall socket. Turn on the wall socket
switch (where fitted). Check that the
POWER indicator light on the projector
lights orange after power has been applied.
2. Remove the lens cap. If it is closed, it
could become deformed due to the heat
produced by the projection lamp.
3. Press POWER on the projector or
remote control to start the projector. The
POWER indicator light flashes green and
stays green when the projector is on.
The start up procedure takes about 30
seconds. In the later stage of start up, a
startup logo is projected.
(If necessary) Rotate the focus ring to adjust the image clearness.
• If the projector is still hot from previous activity, it will run the cooling fan for
approximately 90 seconds before energizing the lamp.
• To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before
turning it off.
4. If you are prompted for a password, press the arrow keys to enter a six-digit
password. See "Utilizing the password function" on page 21 for details.
5. Switch all of the connected equipment on.
6. The projector will start to search for input signals. The current input signal
being scanned displays in the upper left corner of the screen. If the projector
doesn't detect a valid signal, the message 'No Signal' will continue displaying
until an input signal is found.
You can also press SOURCE on the projector or remote control to select your
desired input signal. See "Switching input signal" on page 23 for details.
If the frequency/resolution of the input signal exceeds the projector's operating range, you will
see the message 'Out of Range' displayed on a blank screen. Please change to an input signal
which is compatible with the projector's resolution or set the input signal to a lower setting.
See "Timing chart" on page 52 for details.
I
I

InFocus X16 Specifications

Display

native resolution	800 x 600
display technology	0.55” LVDS DLP DMD
brightness	2400 lm

Connectivity

input sources	VGA (HD15), S-video, Composite Video, Audio (3.5mm), RS232
output sources	VGA (HD15)
control	PC control through RS232

Video Compatibility

computer compatibility	VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), SXGA+(1400x1050)
video compatibility	NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, SDTV(480i/576i), EDTV(480p/756p), HDTV(720p1080i)
aspect ratio	4:3/16:9

Projection

minimum projection distance	1.5 ~ 6m
lens offset	120%
image size	0.75m ~ 6.5m (27” ~ 252")

Power and Consumption

power consumption	285W (typical) / 5W in standby
power supply	100~240Vac, 50/60Hz
lamp	185W / 4000 hours (Eco mode)

Operating Environment

operating temperature	5 – 35°C
audible noise	29dB
brightness uniformity	80%

Weight and Dimensions

product dimensions	225 x 113 x 264mm
product weight	5.3 lbs (2.4 kg)
product color	Black
