Appendix A – Using the CT01 Commissioning Tool
A-2.2 Connecting to Sub System Gateway (IG01)
When you connect the CT01 to the Innotech Sub System Gateway (IG01) using the provided adaptor
cable, the CT01 can communicate with all subsystem controllers on that network that are connected
to the IG01, as illustrated in Figure A-2 below.

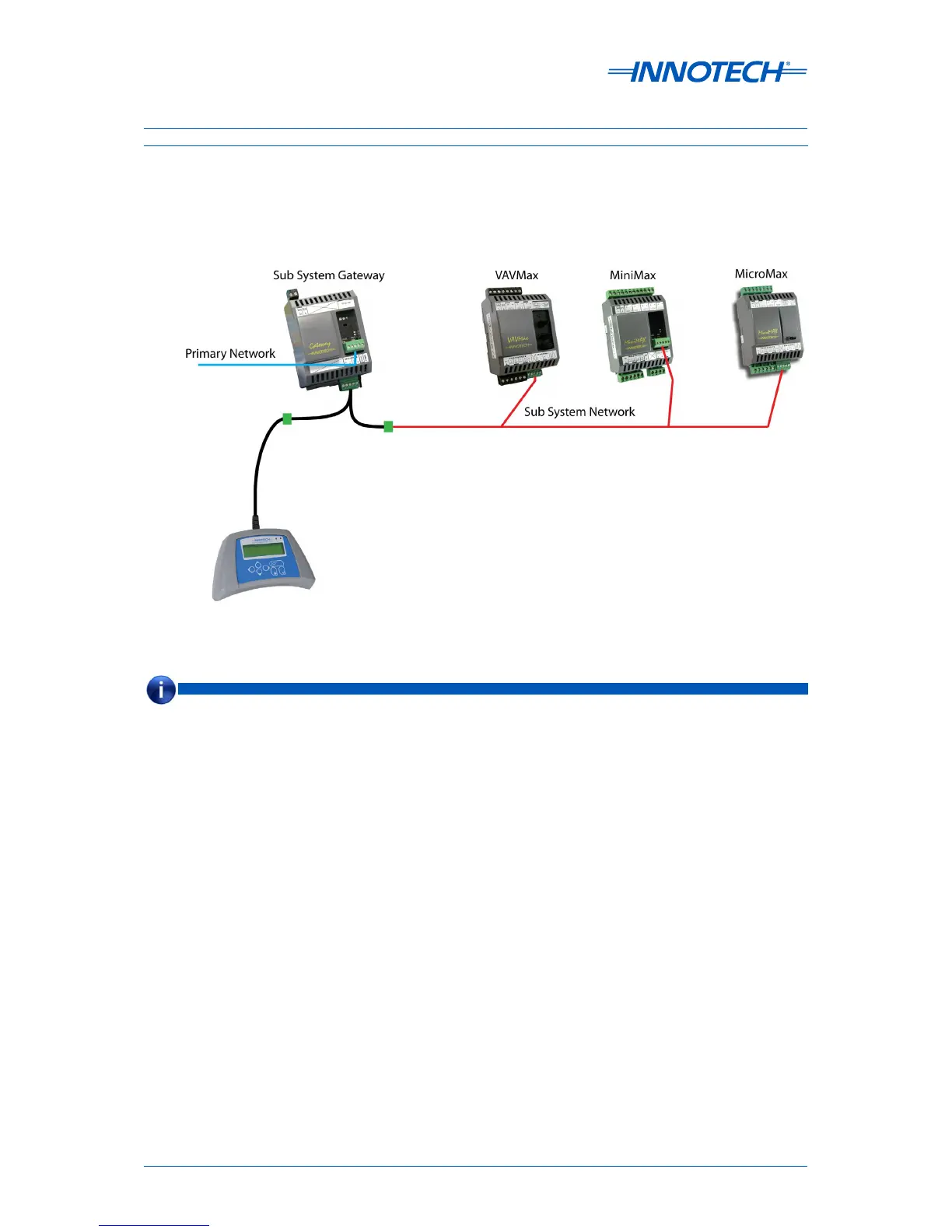

Figure A-2: Connecting the CT01 to a Sub System Gateway IG01
The subsystem network must be reconnected as it was before once the commissioning process is complete.
NOTE
