A-2.3 Connecting to sub system network
When you connect the CT01 to the subsystem network at any point using the provided adaptor cable,
the CT01 can communicate with all controllers on the sub system network that are connected to the
IG01, EXCEPT for the controller that is directly connected to the CT01.
The IG01 will need to be unplugged from the subsystem network to allow this type of connection to
work, as illustrated in Figure A-3 below.

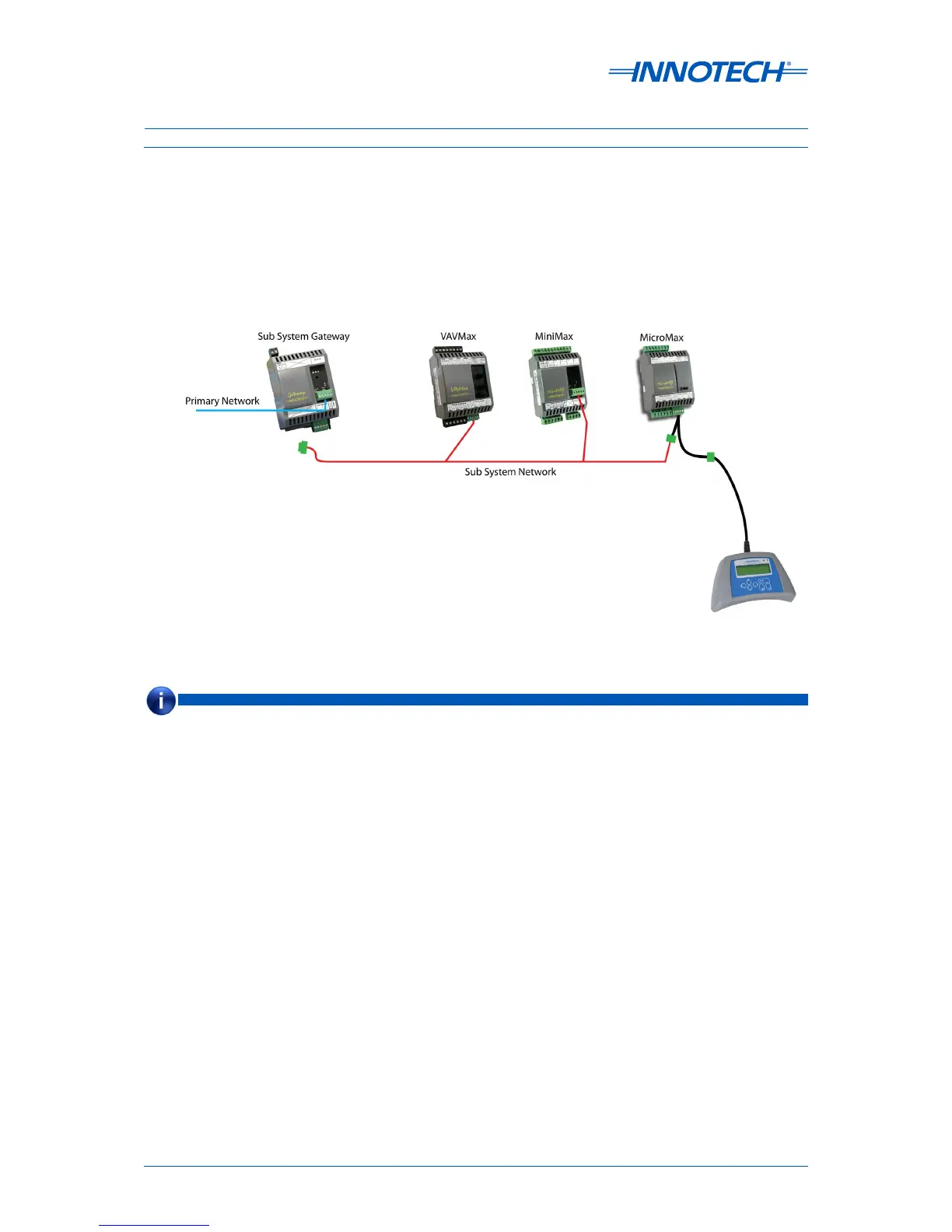

Figure A-3: Connecting the CT01 to a Sub Network Device
The IG01 must be reconnected as it was before once the commissioning process is complete.
