7 PROJECT EXAMPLES
7.1 INOPROSHOP PROJECT (INOVANCE’S AM/AC SERIES CONTROLLERS)
The AM600 master station is used as an example to describe how to use the SI-ECAT card with the master
station.
1) Start the software and create an AM600 project.

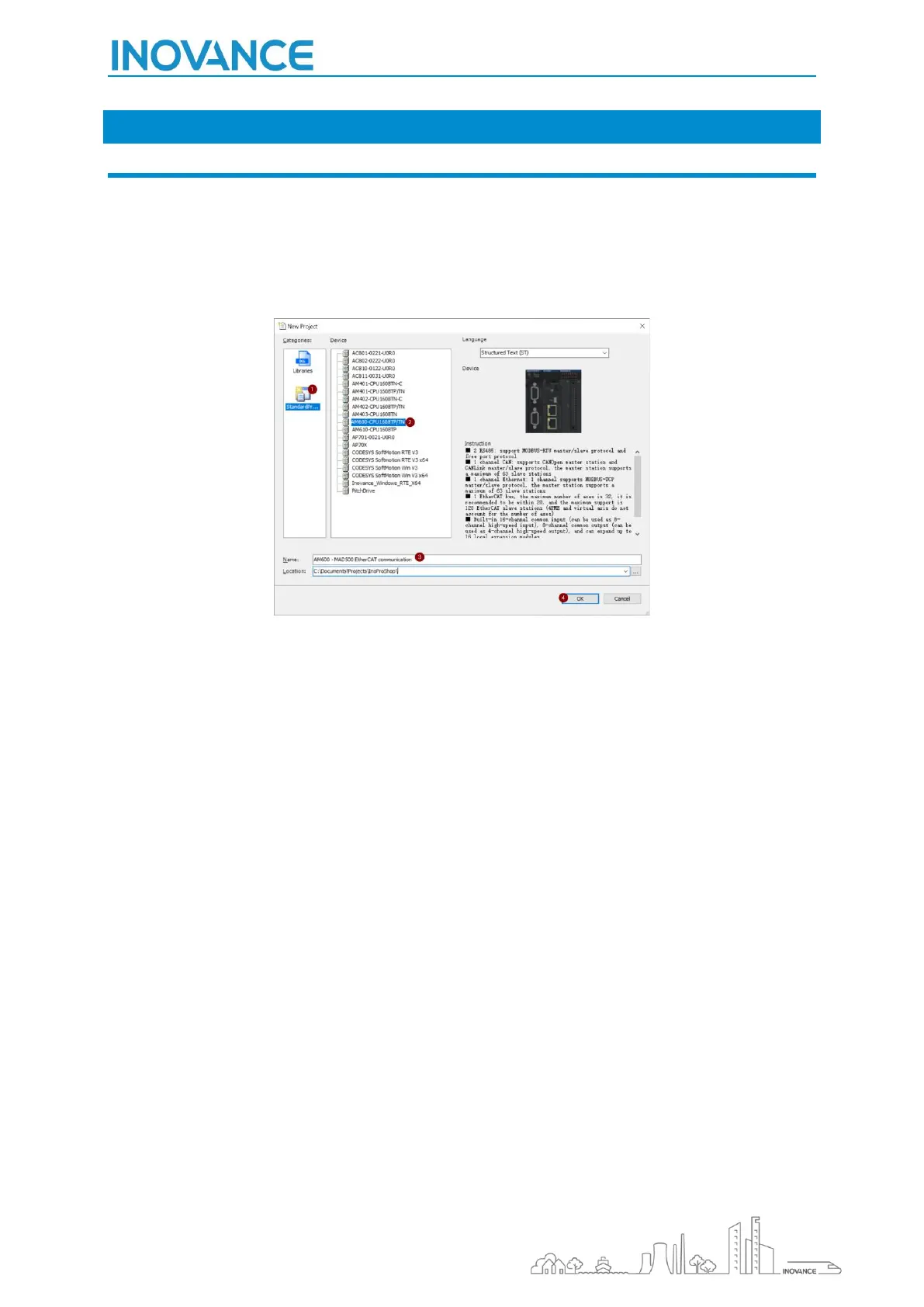

Select AM600-CPU1608TP, as shown in the following figure.
2) Add the MD500 AC drive slave station.
1. Open the network configuration.
2. Select CPU.
3. Enable EtherCAT Master.
4. Import the EtherCAT configuration file of MD500. If any configuration file of other version exists,
delete the existing configuration file before importing a new one.
5. Drag the device in the network device list.
6. Add the AC drive slave station, as shown in the following figure.
