4 Operation Panel
4
Function
Code

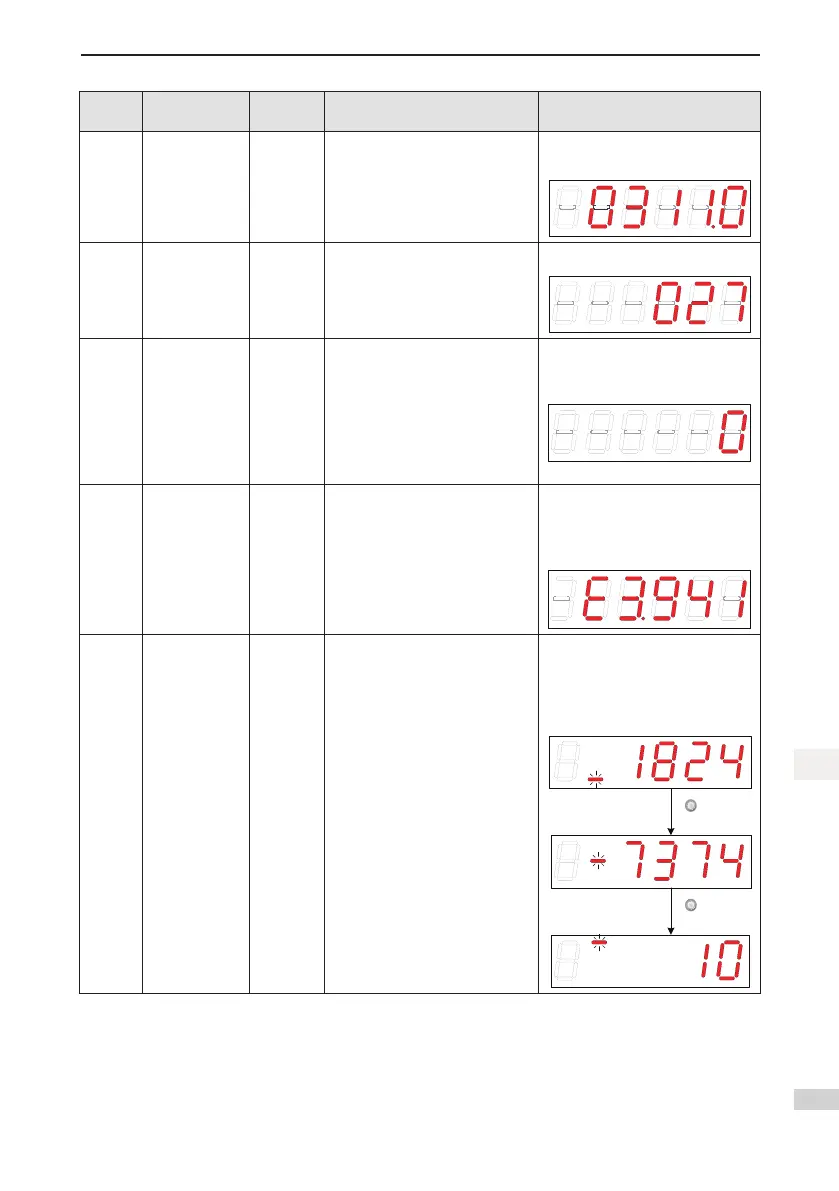

Name Unit Meaning Display Examples
H0B-26 Bus voltage 0.1 V DC bus voltage of main circuit
After220VACrectication,311.0V
isdisplayedasfollows:
H0B-27
Module
temperature
℃
It indicates the temperature of the
power module inside the servo
drive.
27
℃
isdisplayedasfollows:
H0B-33 Fault record -
It sets the number of history faults
to be viewed.
0:Currentfault
1:Latestfault
2:Last2ndfault
……
9:last9thfault
0:currentfaultisdisplayedas
follows:
H0B-34
Fault code of the
selected fault
record
-
It indicates the fault code selected
by H0B-33.
When there is no fault, H0B-34
displayis"E+AxisNo.000."
For example, when the axis number
is3:
If H0B-33=0, H0B-34=E3.941, the
currentfaultcodeis941.Display:
H0B-35
Time stamp
upon displayed
fault
s
It indicates the total servo running
time when the fault displayed in
H0B-34 occurs.
When there is no fault, H0B-35
display is "0."
If H0B-34=Er.941,
H0B-35=107374182.4, the current
fault code is 941 and the total servo
running time is 107,374,182.4s when
this fault occurs.
