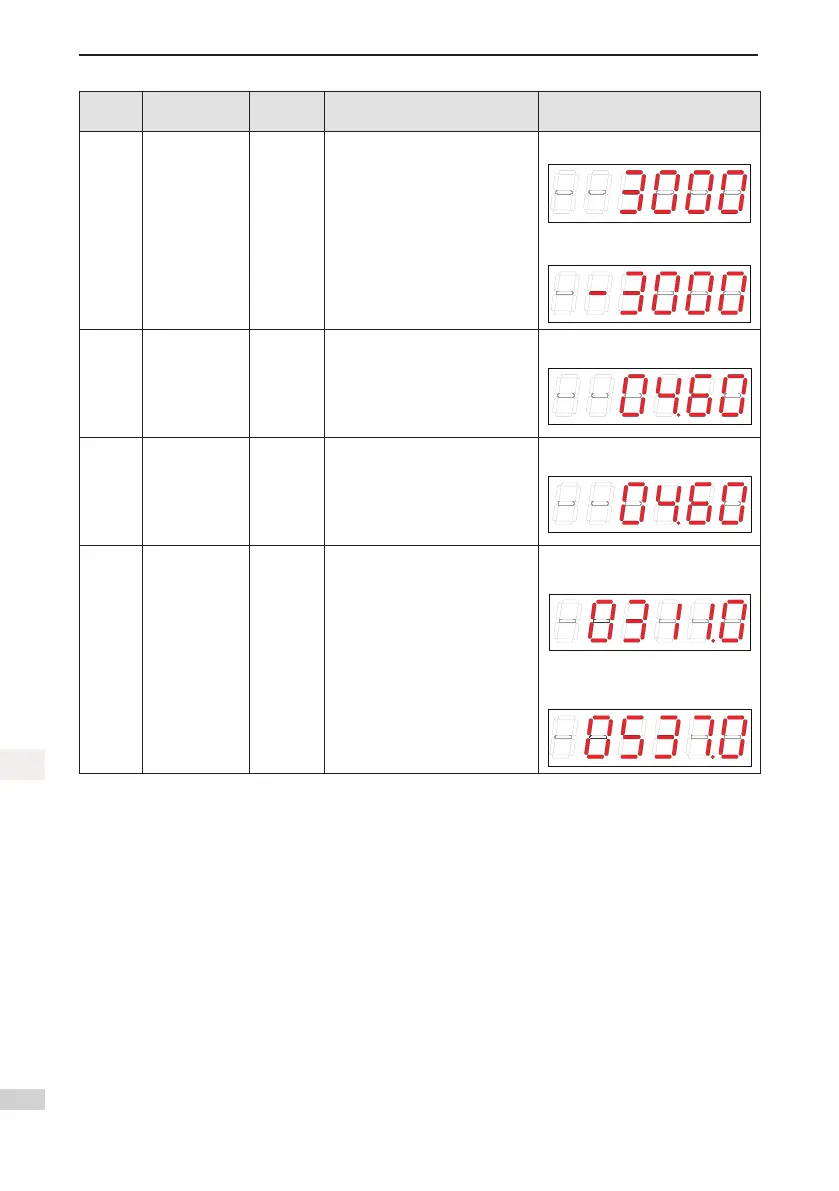

4 Operation Panel
4
Function
Code
Name Unit Meaning Display Examples
H0B-37
Motor speed
upon displayed
fault
RPM
It indicates the servo motor speed
when the fault displayed in H0B-34
occurs.
When there is no fault, H0B-37
display is "0."
3,000RPMisdisplayedasfollows:
–3,000RPMisdisplayedasfollows:
H0B-38
Motor phase U
current upon
displayed fault
0.01 A
It indicates the winding current
effective value of the servo motor
phase U when the fault displayed
in H0B-34 occurs.
When there is no fault, H0B-38
display is "0."
4.60Aisdisplayedasfollows:
H0B-39
Motor phase V
current upon
displayed fault
0.01 A
It indicates the winding current
effective value of the servo motor
phase V when the fault displayed
in H0B-34 occurs.
When there is no fault, H0B-39
display is "0."
4.60Aisdisplayedasfollows:
H0B-40
Bus voltage
upon displayed
fault
0.1 V
It indicates the DC bus voltage
of the main circuit when the fault
displayed in H0B-34 occurs.
When there is no fault, H0B-40
display is "0."
After220VACrectication,311.0V
isdisplayedasfollows:
After380VACrectication,537.0V
isdisplayedasfollows:
