Connecting headphones
The TV speakers are muted when headphones are
attached.

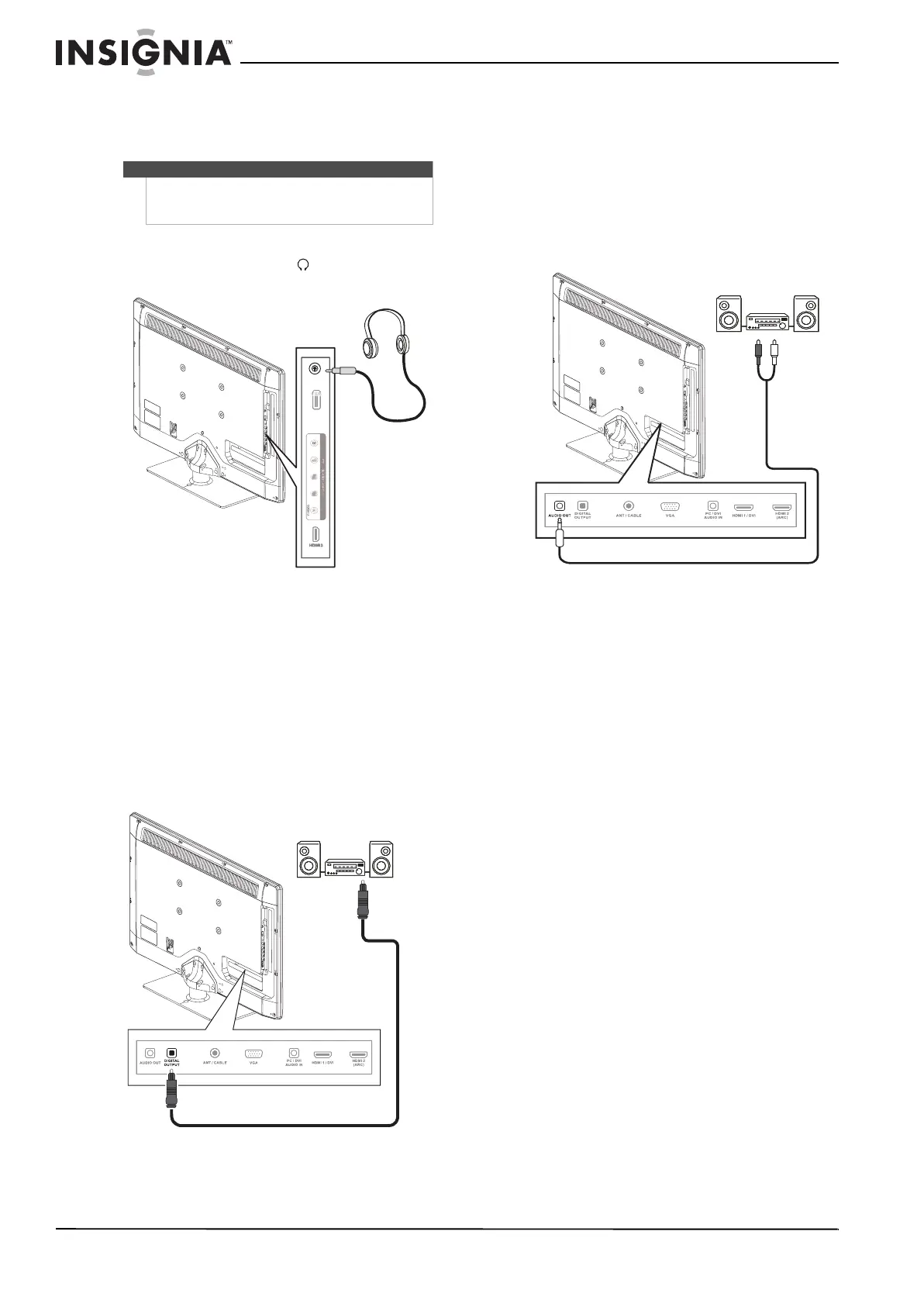

To connect headphones:
• Connect headphones to the (headphone) jack
on the side of your TV.
Connecting a basic home theater system
Using digital audio output
To connect a basic home theater system using
digital audio output:
1 Make sure that your TV’s power cord is
unplugged and the home theater system is
turned off.
2 Connect a digital optical audio cable to the
DIGITAL OUTPUT jack on the back of your TV
and to the digital optical audio jack on the
digital home theater system.
Using analog audio output
To connect a basic home theater system using
analog audio output:
1 Make sure that your TV’s power cord is
unplugged and the home system is turned off.
2 Connect an audio cable to the AUDIO OUT jack
on the back of your TV and to the AUDIO IN
jacks on the home theater system.
Warning
Loud noise can damage your hearing. When using
headphones, use the lowest volume setting on your
headphones that still lets you hear the sound.
USB
USB
U
B
B
SB
B
U
U
SB
B
S
S
Side of TV
Back of TV
Home theater system
Digital audio
cable
Back of TV
Home theater system
Analog audio
cable

Insignia NS-32E740A12 Specifications

General

Response time	9 ms
Display diagonal	31 \
Display brightness	350 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1200:1
Supported graphics resolutions	1366 x 768
3D	No
Backlight	-
HDMI ports quantity	3
DVI-D ports quantity	1
DVI-I ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Product color	Black
Panel mounting interface	200 x 100 mm
RMS rated power	- W
Power consumption (standby)	1 W
Power consumption (typical)	64 W
Remote control type	Standard

Weight and Dimensions

Height (with stand)	533.4000 mm
Weight (with stand)	9888.3137 g
Depth (without stand)	203.2000 mm
Width (without stand)	736.6000 mm
Height (without stand)	457.2000 mm
Weight (without stand)	8164.6627 g
