Insignia NS-32E740A12 User Manual

13
Insignia 32" LED-LCD HDTV, 720p
www.insigniaproducts.com

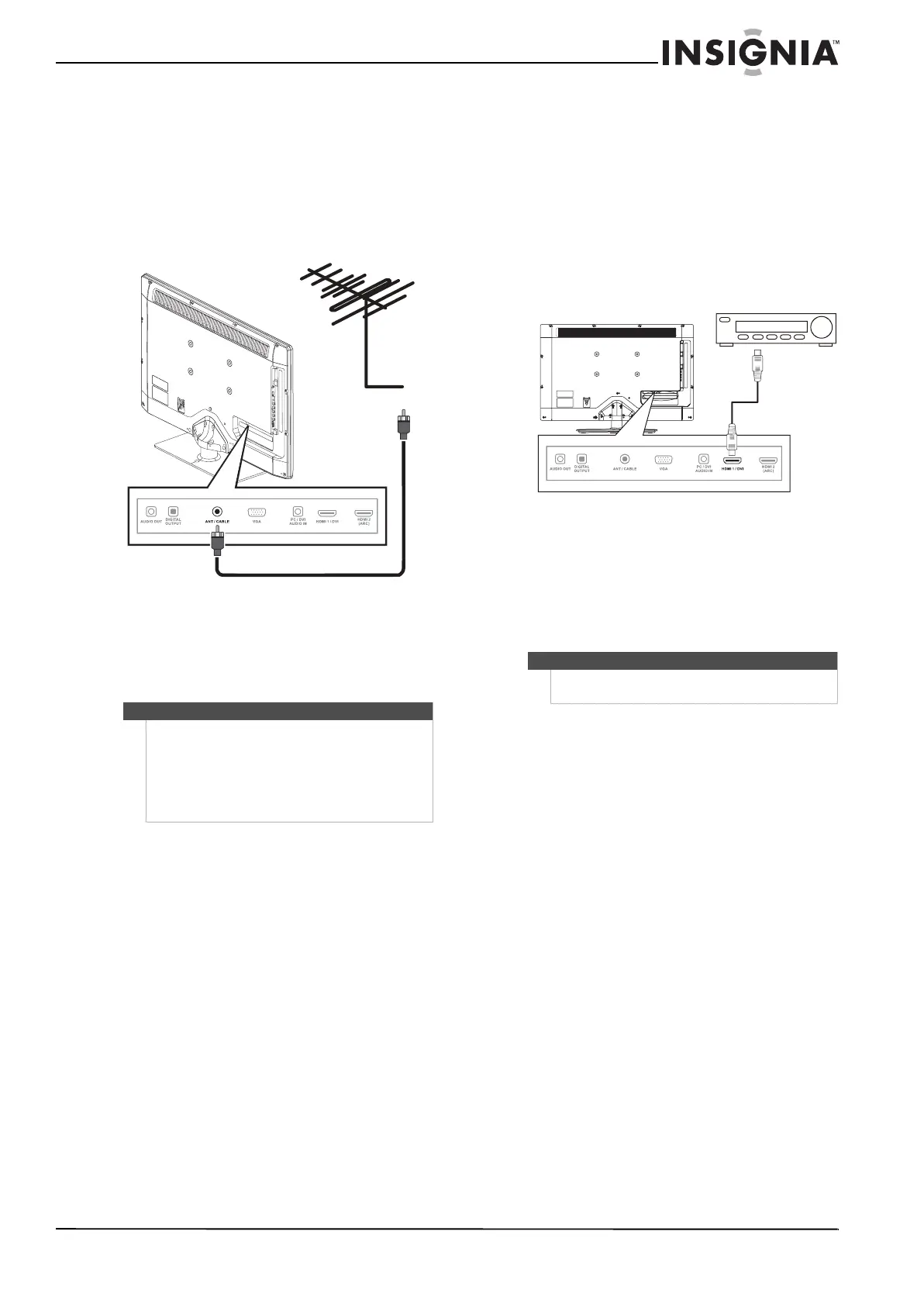

Connecting an antenna or cable TV (no box)
To connect an antenna or cable TV (no box):
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect a coaxial cable to the ANT/CABLE jack
on the back of your TV and to the antenna or
cable TV wall jack.
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
4 Go through the setup wizard on page 21.
Connecting a DVD or Blu-ray player
Using HDMI (best)
To connect a DVD or Blu-ray player using HDMI:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an HDMI cable (not included) to an
HDMI jack on the back or side of your TV and to
the HDMI OUT jack on the DVD or Blu-ray
player.
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the DVD or Blu-ray
player.
4 Press INPUT to open the Input Source list.
5 Press
 or  to highlight HDMI 1, HDMI 2, or
HDMI 3, then press ENTER.
Notes
• Use a coaxial cable to eliminate interference and
noise from radio waves.
• Do not bundle the coaxial cable with the power
cord or other cables.
• If the antenna is not installed correctly, contact
qualified service personnel to correct the
problem.
Back of TV
Coaxial cable
Note
You can also press HDMI repeatedly to select the
DVD or Blu-ray player.
Back of TV
DVD or Blu-ray player

Insignia NS-32E740A12 Specifications

General

Response time	9 ms
Display diagonal	31 \
Display brightness	350 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1200:1
Supported graphics resolutions	1366 x 768
3D	No
Backlight	-
HDMI ports quantity	3
DVI-D ports quantity	1
DVI-I ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Product color	Black
Panel mounting interface	200 x 100 mm
RMS rated power	- W
Power consumption (standby)	1 W
Power consumption (typical)	64 W
Remote control type	Standard

Weight and Dimensions

Height (with stand)	533.4000 mm
Weight (with stand)	9888.3137 g
Depth (without stand)	203.2000 mm
Width (without stand)	736.6000 mm
Height (without stand)	457.2000 mm
Weight (without stand)	8164.6627 g
