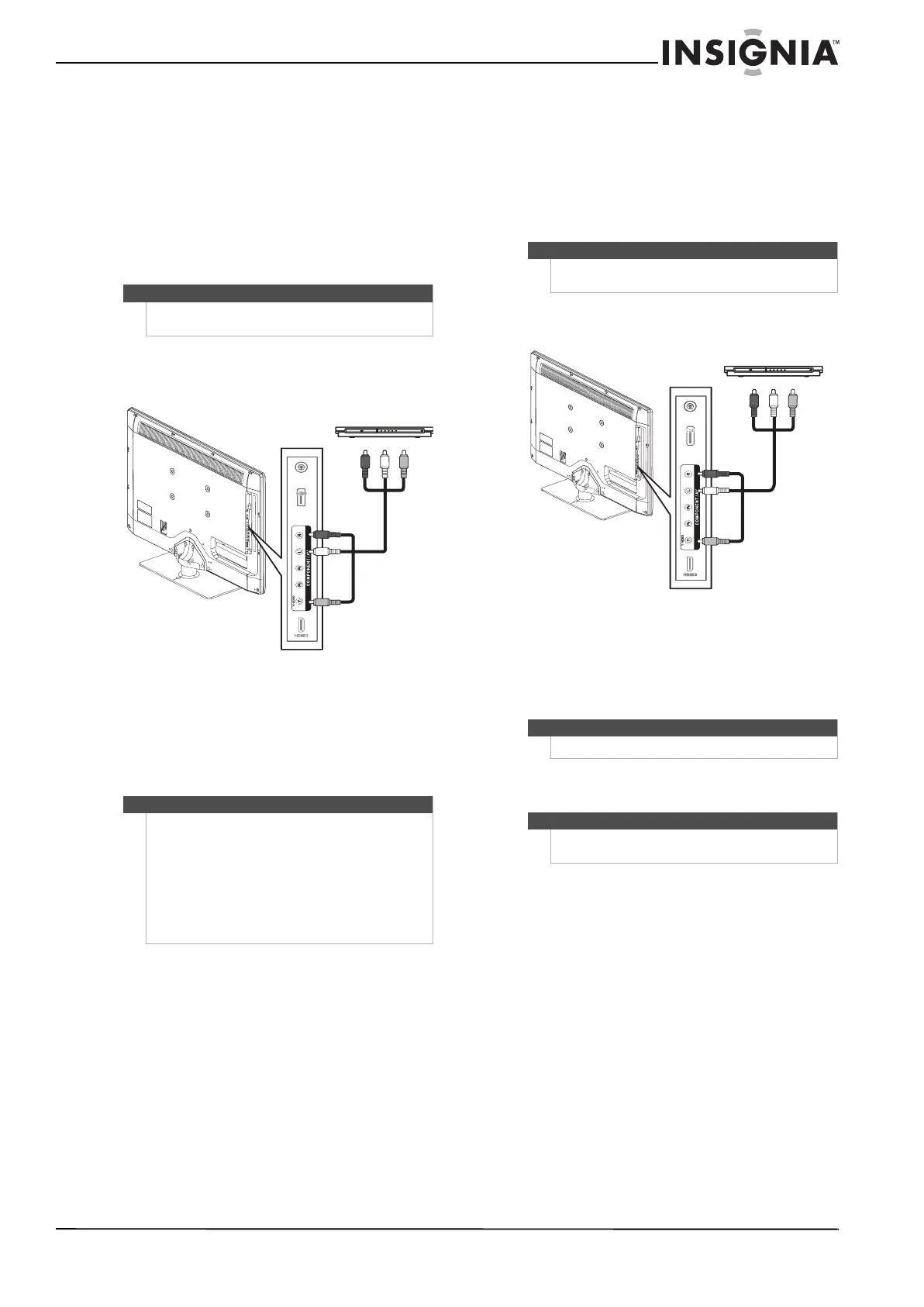

Using composite video (good)
To connect a DVD or Blu-ray player using
composite video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an AV cable (not provided) to the
Y-VIDEO and L/R (audio in) jacks on the side of
your TV and to the AV OUT jacks on the DVD or
Blu-ray player.
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the DVD or Blu-ray
player.
4 Press INPUT to open the Input Source list.
5 Press
 or  to select Component/AV, then
press ENTER.
Connecting a VCR
To connect a VCR:
1 Make sure that your TV’s power cord is
unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the
Y-VIDEO and L/R (audio in) jacks on the side of
your TV and to the AV OUT jacks on the VCR.
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the VCR.
4 Press INPUT to open the Input Source list.
5 Press
 or  to select Component/AV, then
press ENTER.
6 Turn on the VCR, insert a videotape, then press
PLAY on the VCR.
Note
When you connect the audio using the L and R audio
jacks, the audio output is analog.
Notes
• You can also press VIDEO to select the DVD or
Blu-ray player.
• If you are not using the included audio cable for
another device, you can use it and a standard
one-plug video cable instead of the three-plug
cable shown in this task.
•The Y-VIDEO (composite video) jack shares the
audio jacks with the Y-VIDEO/P
B/PR
(component video) jacks.
Side of TV
DVD or Blu-ray player
Cables are often color-coded to
match color-coded jacks.
Note: The yellow connector on
the AV cable plugs into the
green Y-VIDEO jack.
AV cable
Note
When you connect the audio using the L and R audio
jacks, the audio output is analog.
Note
You can also press VIDEO to select the VCR.
Note
The Y-VIDEO (composite) jack shares the audio jacks
with the Y-VIDEO/P
B/PR (component video) jacks.
USB
USB
USB
S
Side of TV
VCR
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
AV cable

Insignia NS-32E740A12 Specifications

General

Response time	9 ms
Display diagonal	31 \
Display brightness	350 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1200:1
Supported graphics resolutions	1366 x 768
3D	No
Backlight	-
HDMI ports quantity	3
DVI-D ports quantity	1
DVI-I ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Product color	Black
Panel mounting interface	200 x 100 mm
RMS rated power	- W
Power consumption (standby)	1 W
Power consumption (typical)	64 W
Remote control type	Standard

Weight and Dimensions

Height (with stand)	533.4000 mm
Weight (with stand)	9888.3137 g
Depth (without stand)	203.2000 mm
Width (without stand)	736.6000 mm
Height (without stand)	457.2000 mm
Weight (without stand)	8164.6627 g
