Instron 5940 User Manual

Chapter: Introduction
1-2 M10-16245-EN
System Description and Terminology
Components
The major components of an Instron electromechanical testing system include:
• Load frame with integral controller
• Load cell mounted to the crosshead

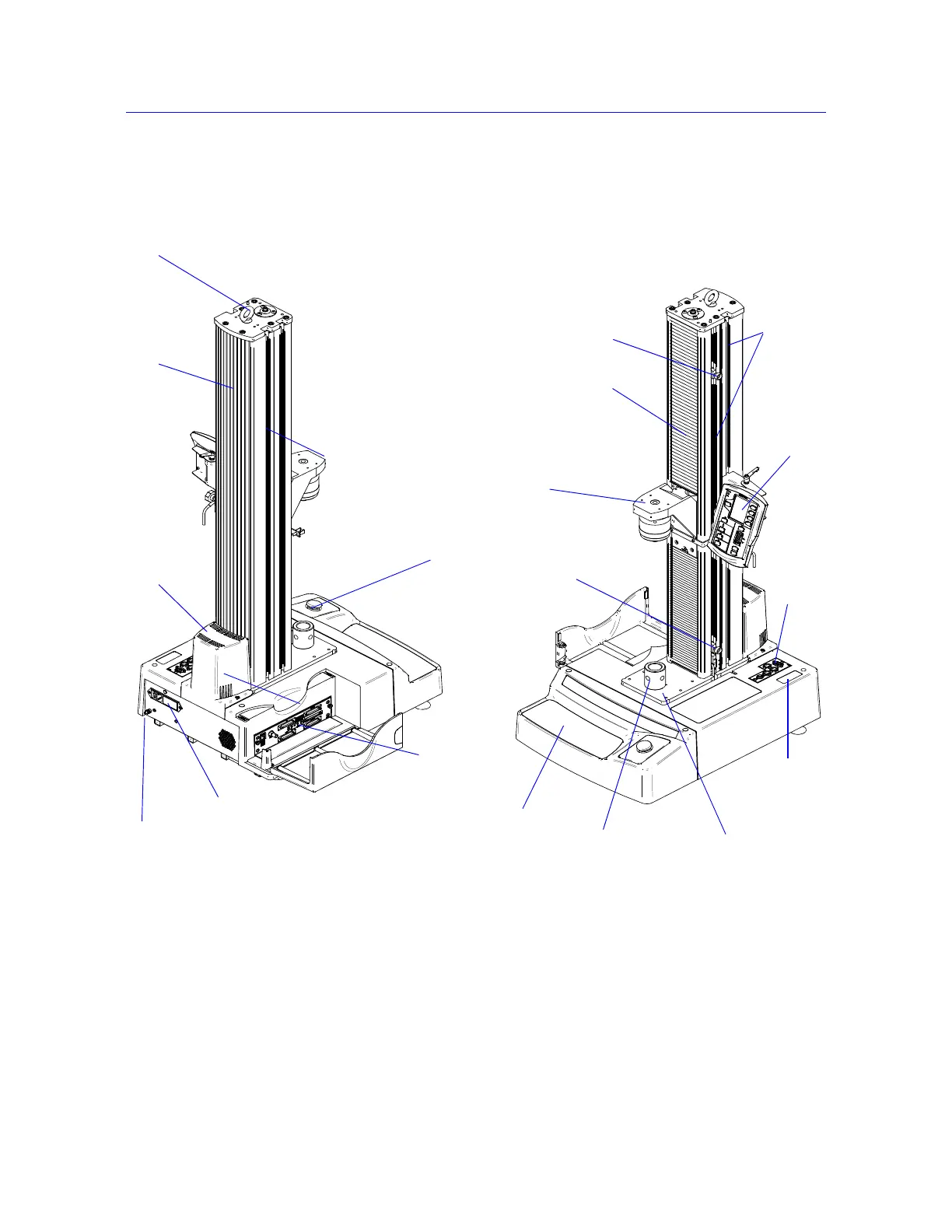

Figure 1-1. 5940 Single Column Table Frame
Frame base
Base
Base adapter
Controller
Motor cover
Ground stud
Not shown: Computer
T-slots
Crosshead
Lifting eye
Emergency stop
button
Power input
connector
Control
panel
beam
System ID label
Options
panel
Upper limit stop
Lower limit stop
Ballscrew cover
Column
cover

Instron 5940 Specifications

General

Brand	Instron
Model	5940
Category	Test Equipment
Language	English
