3. Secure the clevis pin in position with the clevis pin clip.
4. Repeat steps 1 through 3 to install the upper grip onto the load cell.
5. When both grips are installed, follow the procedure to preload the load string (refer to
“Preload the Load String” on page 2-17).

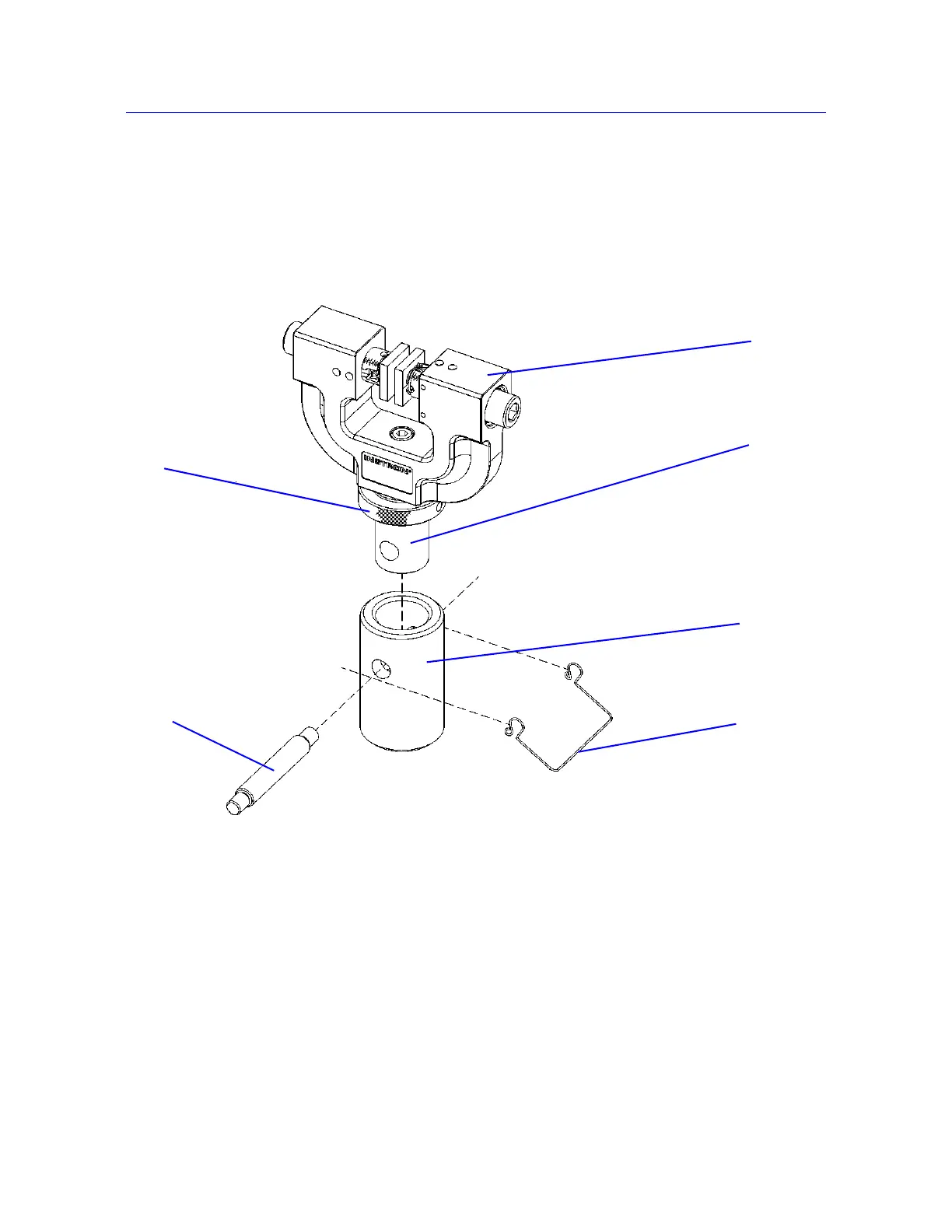

Figure 2-7. Grip with Clevis Pin Coupling
Grip
Clevis
socket
Clevis
pin
Lock nut
Clevis pin
clip
Grip
shank
